麦特伦皮MtronPTI

2023-08-28 13:40:24

MtronPTI offers a wide range of precision frequency control and spectrum control solutions including: RF, microwave and millimeter wave filters; cavity, crystal, ceramic, lumped element and switched filters; high performance and high frequency OCXOs, integrated PLL OCXOs, TCXOs, VCXOs, low jitter and harsh environment oscillators; crystal resonators, Integrated Microwave Assemblies (IMA); and state-of-the-art solid state power amplifier products.

Vertically integrated with complete control of basic material science, design and manufacturing, MtronPTI provides solutions for high reliability, high performance communication and control, Satcom, radar and electronic warfare, guided munitions, test and measurement, computers, servers and networks and energy management applications. MtronPTI is based in Orlando, Florida, with design, sales and manufacturing locations in North America, India and Asia.

2

1965年,Founded in 1965 to produce advanced VHF crystal filter products, First U.S. manufacturer to offer monolithic crystal filter commercially.

1969年,First to offer 4 - pole, Single - Wafer VHF, monolithic filters.

1973年,First to supply monolithic filters in space

1974年,First to introduce monolithic crystal filters for the mobile radio market.

1982年,First 45 MHz monolithic crystal filters for mobile cellular applications.

1985年,Worlds best chemically milled crystal resonators over 1 GHz.
1990年,Introduced surface mountable wash proof LC filters to market.

1992年,Introduced a novel all quartz, high-shock resonator (over 100,000 g).

1995年,Smallest Package VCXO for OC-48 and OC-192 SONET Networks.

2006年,Introduced Qik chip oscillators & VCXO's to 1.4 GHz.

2009年,First 5 x 7mm, 3.3v M2052 Series Down hole drilling XO to 200 degrees Celsius.

2012年,Worlds smallest 100 MHz, Low-g, Low phase noise OCXO.

2017年,First electronically vibration compensated OCXO.

2018年,Lowest Profile X & KU band cavity filters

2019年,Industries highest isolation diplexers

2020年,Industry leading SWaP Integrated Microwave Assembly (IMA) is launched

2021年,The UFDX9999-008 K-band diplexer joins the expansive family of Common Data Link (CDL) products.

2022年,The XO9095 OCXO expands the superior spectral purity, tight stability, low g-sensitivity and low phase noise family to 6GHz.

2022年,MtronPTI today introduced our new Planar Filter Product Line. MtronPTI’s planar filters support the demands of rugged, high-performance applications such as Electronic Warfare, Data Links and SATCOM.

MtronPTI specializes in frequency control and spectrum control solution for high reliability, harsh environment and real-time applications. There is little room for error here - whether helping to keep data flowing from a remote cellular base station or coordinating and protecting our troops abroad. Thermal modeling, extensive design of experiments, and exhausting prototype evaluations help make the designs robust, before the product is manufactured.

Raw materials such as crystal bases, oscillator, headers, capacitors, diodes and manufactured crystals are tested to ensure that each element meets industry and client specified requirements. MtronPTI’s finished products manufactured at contract factories are subjected to the same qualification requirement. Frequent factory audits ensure continued compliance.

MtronPTI takes a continuous improvement approach to manufacturing systems and procedures. Rapid process feedback loops, lean manufacturing, and demand flow technology work together to provide the right product at the right time, on specification. Statistical techniques analyze and improve process capability and continually improve process control techniques.

MtronPTI continues to refine products and processes in order to offer you a competitive advantage. Committed to satisfaction in every phase, we actively seek your comment and opinion. Please feel free to visit our factories and share your insights. Together we’ll improve the products and services delivered, and improve ourselves along the way.

4

MtronPTI specializes in the design and manufacture of radio frequency components and assemblies used in defense, aerospace, avionics, instrumentation, telecommunications, industrial, medical and space applications. All three MtronPTI design and manufacturing sites areISO 9001:2015certified, with MtronPTI Orlando, FL and Yankton, SD facilities additionally certified toAS9100 Rev. D.

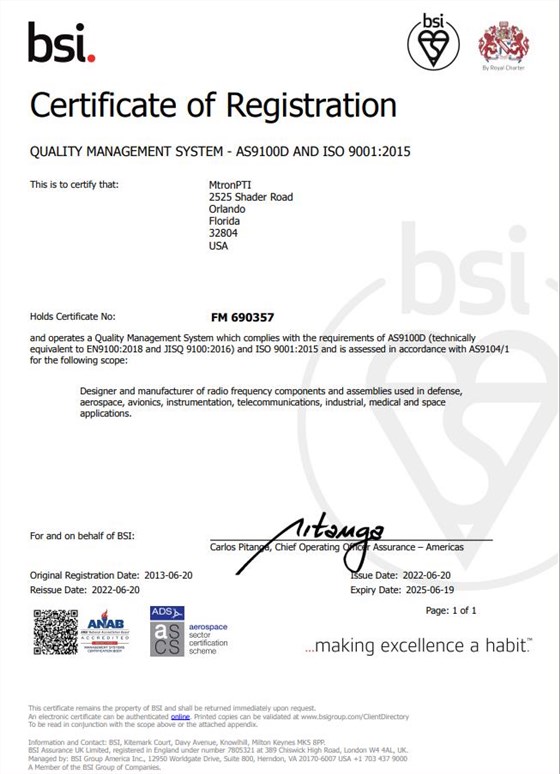

It is the Quality Policy of MtronPTI to provide the highest quality products and services that meet or exceed our customer requirements. MtronPTI is committed to continual improvement of the quality management system to enhance products, services and customer satisfaction.

原厂编码 型号 振荡类型 频率 频率容差 工作温度 电源电压 输出
M220168MPJ 156.250000 M220x XO 156.25 ±20 ppm -20°C to +70°C 2.5 LVPECL
MH13FAD-R 16.000000 M3H and MH XO 16 ±100 ppm 0?C to +70?C 5 HCMOS
1698-065 18.600000 MHO+ XO 18.6 ±10 ppm -40?C to +85?C 5 HCMOS
1674-005 44.736000 MV3 and MV5 VCXO 44.736 ±50 ppm -40°C to +85°C 3.3 CMOS
1674-007 19.440000 MV3 and MV5 VCXO 19.44 ±50 ppm -40°C to +85°C 3.3 CMOS
1674-008 32.768000 MV3 and MV5 VCXO 32.768 ±50 ppm -40°C to +85°C 3.3 CMOS
1674-009 25.000000 MV3 and MV5 VCXO 25 ±50 ppm -40°C to +85°C 3.3 CMOS
1674-013 38.880000 MV3 and MV5 VCXO 38.88 ±50 ppm -40°C to +85°C 3.3 CMOS
XO9085-002 XO9085 OCXO 100 ±100 ppb 0?C to +50?C 12 Sinewave
XO9085-004 XO9085 OCXO 100 ±100 ppb -40?C to +75?C 5 Sinewave
M60532JCN 25.000000 M6053 and M6054 TCXO 25 ±1 ppm -40?C to +85?C 3 HCMOS
M60532JSN 10.000000 M6053 and M6054 TCXO 10 ±1 ppm -40?C to +85?C 3 Clipped Sinewave
M6053S023 32.000000 M6053 and M6054 TCXO 32 ±1 ppm -40?C to +85?C 3.3 CMOS
M6053S036 50.000000 M6053 and M6054 TCXO 50 ±1.5 ppm -40?C to +85?C 3.3 CMOS
M60552JSN 48.000000 M6055 and M6056 TCXO 48 ±1 ppm -40?C to +85?C 3 Clipped Sinewave
M6055S014 10.000000 M6055 and M6056 TCXO 10 ±2 ppm -30?C to +75?C 3 Clipped Sinewave
M6056HGSN 26.000000 M6055 and M6056 VCTCXO 26 ±0.5 ppm -30?C to +85?C 3 Clipped Sinewave
M60642GSN 40.000000 M6064 and M6065 TCXO 40 ±0.5 ppm -40?C to +85?C 3 Clipped Sinewave
M6064S031 20.000000 M6064 and M6065 TCXO 20 ±1 ppm -40?C to +85?C 3 Clipped Sinewave
60103-339-R 12.000000 M3H and MH XO 12 ±100 ppm -55?C to +105?C 5 HCMOS
60110-239-R 1.000000 M3H and MH XO 1 ±100 ppm -40?C to +85?C 5 HCMOS
60153-139-R 24.576000 M3H and MH XO 24.576 ±100 ppm 0?C to +70?C 5 TTL
60184-269-R 18.432000 M3H and MH XO 18.432 ±25 ppm -40?C to +70?C 3.3 HCMOS
M61612GTSN 10.000000 M616x VCTCXO 10 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61612JFCN 20.000000 M616x TCXO 20 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61612JTCN 10.000000 M616x VCTCXO 10 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61612LTCN 10.000000 M616x VCTCXO 10 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61612MFCN 10.000000 M616x TCXO 10 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61613LFSN 50.000000 M616x TCXO 50 ±1 ppm -55°C to +105°C 3.3 Clipped Sinewave
M61616LTCN 10.000000 M616x VCTCXO 10 ±1 ppm -20°C to +70°C 3.3 HCMOS
M61641GFCN 10.000000 M616x TCXO 10 ±1 ppm 0°C to +70°C 3.3 HCMOS
M61641GFCN 40.000000 M616x TCXO 40 ±1 ppm 0°C to +70°C 3.3 HCMOS
M61642GFCN 24.000000 M616x TCXO 24 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61642GFSN 20.000000 M616x TCXO 20 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61642GTSN 40.000000 M616x VCTCXO 40 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61642JFCN 20.000000 M616x TCXO 20 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61642JFCN 50.000000 M616x TCXO 50 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61642JFSN 10.000000 M616x TCXO 10 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61642JTSN 9.600000 M616x VCTCXO 9.6 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61642KFSN 10.000000 M616x TCXO 10 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61646PTCN 50.000000 M616x VCTCXO 50 ±1 ppm -20°C to +70°C 3.3 HCMOS
M61652GFCN 10.000000 M616x TCXO 10 ±1 ppm -40°C to +85°C 3 HCMOS
M61652GFSN 10.000000 M616x TCXO 10 ±1 ppm -40°C to +85°C 3 Clipped Sinewave
M61812GTSN 10.000000 M168x VCTCXO 10 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61812MFSN 16.384000 M618x TCXO 16.384 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61812MTSN 16.384000 M618x VCTCXO 16.384 ±1 ppm -40°C to +85°C 3.3 Clipped Sinewave
M61812PFCN 25.000000 M168x TCXO 25 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61812PTCN 24.576000 M168x VCTCXO 24.576 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61816GFCN 50.000000 M168x TCXO 50 ±1 ppm -20°C to +70°C 3.3 HCMOS
M61816PTCN 50.000000 M168x VCTCXO 50 ±1 ppm -20°C to +70°C 3.3 HCMOS
M6181S020 32.000000 M618x VCTCXO 32 ±1 ppm -40°C to +85°C 3.3 HCMOS
M61822PFSN 8.192000 M168x TCXO 8.192 ±1 ppm -40°C to +85°C 3 Clipped Sinewave
HPO-310 66.000000 HPO XO 66 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-310 77.760000 HPO XO 77.76 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-311 112.500000 HPO XO 112.5 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-311 25.000000 HPO XO 25 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-311 62.208000 HPO XO 62.208 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-320 66.000000 HPO XO 66 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-320 77.760000 HPO XO 77.76 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-321 112.500000 HPO XO 112.5 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-321 25.000000 HPO XO 25 ±5 ppm -55?C to +125?C 3.3 HCMOS
HPO-321 62.208000 HPO XO 62.208 ±5 ppm -55?C to +125?C 3.3 HCMOS
XO5085-012R XO5085 OCXO 100 ±100 ppb -25?C to +80?C 12 Sinewave
XO5123-034R XO5123 OCXO 10 ±10 ppb -40?C to +90?C 12 Sinewave
XO5123-037R XO5123 OCXO 10 ±10 ppb -20?C to +70?C 5 Sinewave
XO5123-040R XO5123 OCXO 10 ±10 ppb -40?C to +85?C 5 Sinewave
XO5123-060R XO5123 OCXO 40 ±0.6 ppb -40?C to +70?C 5 Sinewave
XO5123-061R XO5123 OCXO 10 ±5 ppb -40?C to +80?C 12 Sinewave
XO5123-064R XO5123 OCXO 10 ±10 ppb -40?C to +85?C 12 Sinewave
XO5123-065R XO5123 OCXO 10 ±0.6 ppb -40?C to +70?C 5 Sinewave
XO5123-070R XO5123 OCXO 10 ±2 ppb -30?C to +70?C 12 Sinewave
1485-003 10.000000 M1 XO 10 ±10 ppm 0°C to +70°C 5 HCMOS
60501-26N-48.000 M1 XO 48 ±25 ppm -40?C to +85?C 5 HCMOS
1378-003 16.000000 MHO+ XO 16 ±100 ppm -40?C to +85?C 5 CMOS
1698-575 66.666700 M2 XO 66.6667 ±50 ppm -40°C to +85°C 3.3 HCMOS
60551-43N 16.384000 M2 XO 16.384 ±100 ppm -55?C to +125?C 3.3 HCMOS
M2001S038 50.000000 M2 XO 50 ±50 ppm -55?C to +105?C 3.3 HCMOS
M2002S031 66.000000 M2 XO 66 ±50 ppm -20°C to +70°C 3.3 HCMOS
M2002S041 16.384000 M2 XO 16.384 ±100 ppm -40°C to +85°C 3.3 HCMOS
M2002S220 39.995800 M2 XO 39.9958 ±50 ppm -40°C to +85°C 3.3 HCMOS
M2002S294 40.000000 M2 XO 40 ±100 ppm -55°C to +125°C 3.3 HCMOS
M2002S295 60.000000 M2 XO 60 ±100 ppm -55°C to +125°C 3.3 HCMOS
M2002S429 16.000000 M2 XO 16 ±100 ppm -55?C to +125?C 3.3 HCMOS
M2002S454 40.000000 M2 XO 40 ±50 ppm -55°C to +125°C 3.3 HCMOS
M2002S455 12.000000 M2 XO 12 ±50 ppm -55°C to +125°C 3.3 HCMOS
M2002S654 50.000000 M2 XO 50 ±100 ppm -40?C to +85?C 3.3 HCMOS
M2002S656 99.000000 M2 XO 99 ±100 ppm -40?C to +85?C 3.3 HCMOS
M2002S709 43.200000 M2 XO 43.2 ±100 ppm -40?C to +85?C 3.3 HCMOS
M2002S725 19.660800 M2 XO 19.6608 ±100 ppm -55°C to +125°C 3.3 HCMOS
M2002S773 33.000000 M2 XO 33 ±100 ppm -40?C to +85?C 3.3 HCMOS
M2002S833 10.000000 M2 XO 10 ±100 ppm -55°C to +125°C 3.3 HCMOS
M2002T012 50.000000 M2 XO 50 ±50 ppm -20°C to +70°C 3.3 HCMOS
M2002T171 125.000000 M2 XO 125 ±50 ppm -40°C to +85°C 3.3 HCMOS
M2002T179 25.000000 M2 XO 25 ±100 ppm -55°C to +125°C 3.3 HCMOS
M2002T186 66.667000 M2 XO 66.667 ±100 ppm -40°C to +85°C 3.3 HCMOS
M2002T201 33.333300 M2 XO 33.3333 ±50 ppm -40°C to +85°C 3.3 HCMOS
M2002T202 25.000000 M2 XO 25 ±50 ppm -40°C to +85°C 3.3 HCMOS
M2002T271 66.666000 M2 XO 66.666 ±25 ppm -40°C to +85°C 3.3 HCMOS
M2002T299 33.333000 M2 XO 33.333 ±50 ppm -55°C to +125°C 3.3 CMOS
M2002T301 50.000000 M2 XO 50 ±30 ppm -40°C to +85°C 3.3 CMOS
M210224ULC 500.000000 M210x XO 500 ±50 ppm -40°C to +85°C 1.8 LVDS
M218TAN 51.840000 M2 XO 51.84 ±20 ppm -40?C to +85?C 3.3 HCMOS
M218TCN 100.000000 M2 XO 100 ±20 ppm 0?C to +70?C 3.3 HCMOS
M218TCN 125.000000 M2 XO 125 ±20 ppm 0?C to +70?C 3.3 HCMOS
M218TCN 20.141600 M2 XO 20.1416 ±20 ppm 0?C to +70?C 3.3 HCMOS
M218TCN 44.736000 M2 XO 44.736 ±20 ppm 0?C to +70?C 3.3 HCMOS
M218TCN 50.000000 M2 XO 50 ±20 ppm 0?C to +70?C 3.3 HCMOS
M218TCN 66.667000 M2 XO 66.667 ±20 ppm 0?C to +70?C 3.3 HCMOS
M218TCN 77.760000 M2 XO 77.76 ±20 ppm 0?C to +70?C 3.3 HCMOS
M223FAN 11.059200 M2 XO 11.0592 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FAN 25.000000 M2 XO 25 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FAN 32.000000 M2 XO 32 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FAN 66.000000 M2 XO 66 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FCN 10.000000 M2 XO 10 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FCN 16.384000 M2 XO 16.384 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FCN 20.000000 M2 XO 20 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223FCN 24.576000 M2 XO 24.576 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223QCN 29.491200 M2 XO 29.4912 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 100.000000 M2 XO 100 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 12.000000 M2 XO 12 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 14.318180 M2 XO 14.3182 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 14.745600 M2 XO 14.7456 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 22.118400 M2 XO 22.1184 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 24.000000 M2 XO 24 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 54.190000 M2 XO 54.19 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 65.000000 M2 XO 65 ±100 ppm -40?C to +85?C 3.3 HCMOS
M223TAN 66.000000 M2 XO 66 ±100 ppm -40?C to +85?C 3.3 HCMOS
