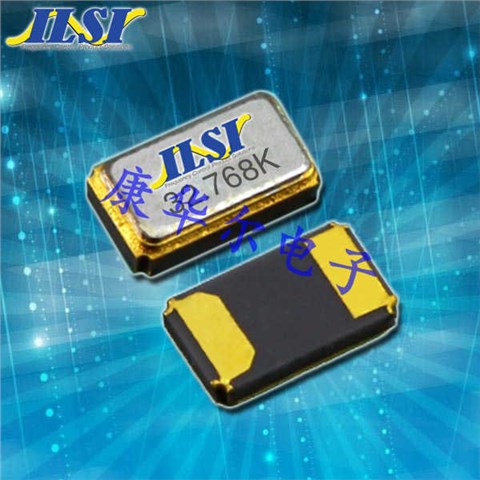

ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振

ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振

产品简介

ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振美国ILSI晶振公司,艾尔西晶振IL3X晶振IL3X-HX5F12.5-32.768KHz晶振,进口晶振,3215晶振,智能手机晶振移动通信终端晶振,基准时钟晶振,无线通信晶振卫星晶振ILSI晶振贴片晶振WIFI用晶体,二脚晶振,插件晶振,欧美晶振,无源晶振,高品质晶振,进口晶振,无人机晶振,电车充电枪晶振,石英晶体谐振器,工作温度-40~85°C,网络服务器晶振,存储卡晶振,无线局域网晶振,光纤通道晶振外观完全使用金属材料封装的产品本身采用全自动石英晶体检测仪以及跌落漏气等苛刻实验产品本身具有高稳定性高可靠性的石英晶体谐振器。

产品详情

1

ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振美国ILSI晶振公司,艾尔西晶振IL3X晶振IL3X-HX5F12.5-32.768KHz晶振,进口晶振,3215晶振,智能手机晶振移动通信终端晶振,基准时钟晶振,无线通信晶振卫星晶振ILSI晶振贴片晶振WIFI用晶体,二脚晶振,插件晶振,欧美晶振,无源晶振,高品质晶振,进口晶振,无人机晶振,电车充电枪晶振,石英晶体谐振器,工作温度-40~85°C,网络服务器晶振,存储卡晶振,无线局域网晶振,光纤通道晶振外观完全使用金属材料封装的产品本身采用全自动石英晶体检测仪以及跌落漏气等苛刻实验产品本身具有高稳定性高可靠性的石英晶体谐振器。

2

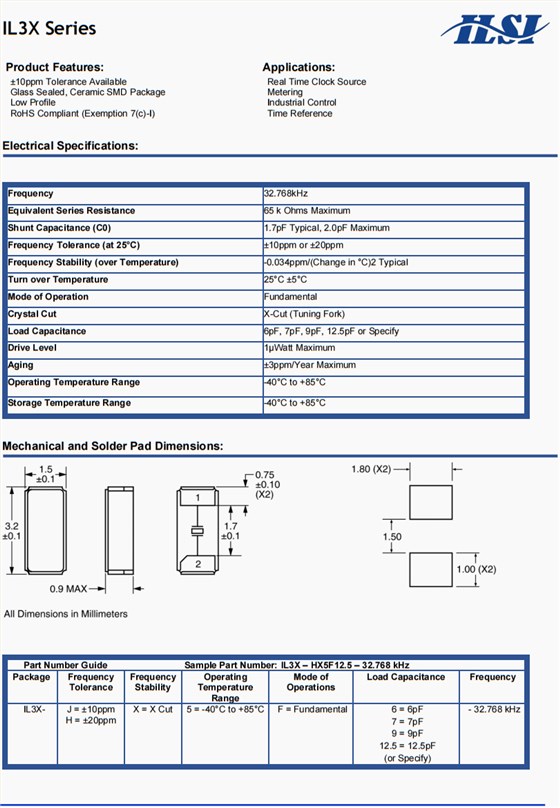

ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振

频率 32.768kHz
等效串联电阻 65 k Ohms Maximum
分流电容 1.7pF Typical, 2.0pF Maximum
频率容差 ±10ppm or ±20ppm
频率稳定度 -0.034ppm/(Change in °C)2 Typical
翻转温度 25°C ±5°C
工作模式 Fundamental
晶体切割 X-Cut (Tuning Fork)
负载电容 6pF, 7pF, 9pF, 12.5pF or Specify
驱动电平 1µWatt Maximum
老化 ±3ppm/Year Maximum
工作温度范围 -40°C to +85°C
储存温度范围 -40°C to +85°C
20180109173140_2357

ILSI音叉晶振,IL3X-HX5F12.5-32.768KHz二脚晶振,IL3X基准时钟晶振

IL3X

IL3X

编码 品牌 型号 工作温度 频率 频率稳定度 频率容差 负载
HC49USM-BA1F12- 24.000 MHz ILSI HC49USM 0°C ~ 70°C 24 MHz ±100ppm ±50ppm 12 pF
HC49USM-BA3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±100ppm ±50ppm 18 pF
HC49USM-BA5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±100ppm ±50ppm 18 pF
HC49USM-BB3F10- 13.52313 MHz ILSI HC49USM -20°C ~ 70°C 13.52313 MHz ±50ppm ±50ppm 10 pF
HC49USM-BB5F20- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±50ppm ±50ppm 20 pF
HC49USM-FB1F18- 8.000 MHz ILSI HC49USM 0°C ~ 70°C 8 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB1F18- 28.224 MHz ILSI HC49USM 0°C ~ 70°C 28.224 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB1F20- 3.6864 MHz ILSI HC49USM 0°C ~ 70°C 3.6864 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB2F30- 4.000 MHz ILSI HC49USM -10°C ~ 60°C 4 MHz ±50ppm ±30ppm 30 pF
HC49USM-FB2F30- 8.000 MHz ILSI HC49USM -10°C ~ 60°C 8 MHz ±50ppm ±30ppm 30 pF
HC49USM-FB3F10- 9.650 MHz ILSI HC49USM -20°C ~ 70°C 9.65 MHz ±50ppm ±30ppm 10 pF
HC49USM-FB3F18- 4.545 MHz ILSI HC49USM -20°C ~ 70°C 4.545 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB3F18- 25.175 MHz ILSI HC49USM -20°C ~ 70°C 25.175 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB3F20- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB3F20- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB3F20- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F18- 3.579545 MHz ILSI HC49USM -40°C ~ 85°C 3.579545 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F18- 4.194304 MHz ILSI HC49USM -40°C ~ 85°C 4.194304 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 18 pF
HC49USM-FB5F20- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 12.288 MHz ILSI HC49USM -40°C ~ 85°C 12.288 MHz ±50ppm ±30ppm 20 pF
HC49USM-FB5F20- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±50ppm ±30ppm 20 pF
HC49USM-FF3F18- 3.6864 MHz ILSI HC49USM -20°C ~ 70°C 3.6864 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 4.000 MHz ILSI HC49USM -20°C ~ 70°C 4 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 4.9152 MHz ILSI HC49USM -20°C ~ 70°C 4.9152 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 6.144 MHz ILSI HC49USM -20°C ~ 70°C 6.144 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 7.3728 MHz ILSI HC49USM -20°C ~ 70°C 7.3728 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 11.0592 MHz ILSI HC49USM -20°C ~ 70°C 11.0592 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 12.000 MHz ILSI HC49USM -20°C ~ 70°C 12 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 14.7456 MHz ILSI HC49USM -20°C ~ 70°C 14.7456 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 16.000 MHz ILSI HC49USM -20°C ~ 70°C 16 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 18.432 MHz ILSI HC49USM -20°C ~ 70°C 18.432 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 20.000 MHz ILSI HC49USM -20°C ~ 70°C 20 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF3F18- 9.909116 MHz ILSI HC49USM -20°C ~ 70°C 9.909116 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F10- 9.81713 MHz ILSI HC49USM -40°C ~ 85°C 9.81713 MHz ±30ppm ±30ppm 10 pF
HC49USM-FF5F18- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 3.93216 MHz ILSI HC49USM -40°C ~ 85°C 3.93216 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 4.000 MHz ILSI HC49USM -40°C ~ 85°C 4 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 6.000 MHz ILSI HC49USM -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 7.3728 MHz ILSI HC49USM -40°C ~ 85°C 7.3728 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 10.000 MHz ILSI HC49USM -40°C ~ 85°C 10 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 14.7456 MHz ILSI HC49USM -40°C ~ 85°C 14.7456 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 18.432 MHz ILSI HC49USM -40°C ~ 85°C 18.432 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 18 pF
HC49USM-FF5F18- 25.000 MHz ILSI HC49USM -40°C ~ 85°C 25 MHz ±30ppm ±30ppm 18 pF
