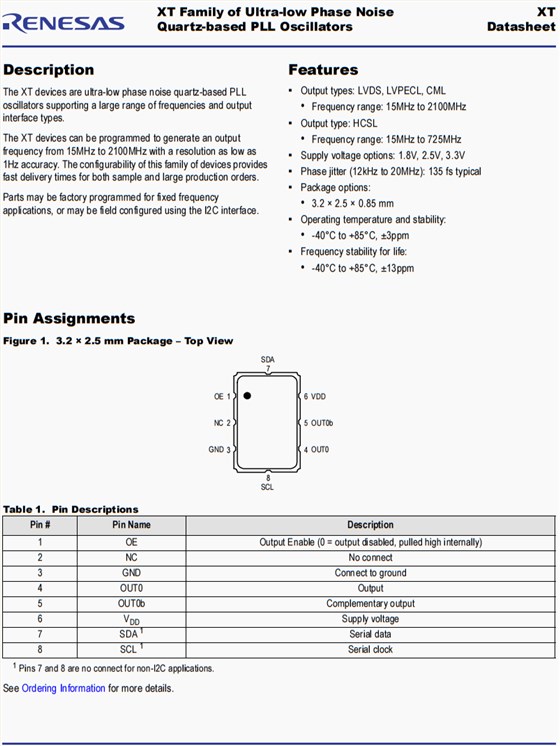

瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振，瑞萨晶振公司，Renesas晶振，石英晶振，进口晶振，SMD晶振，空间站晶振，航空航天晶振，电脑主板晶振，智能手表晶振，小体积晶振，3225晶振，XT器件是超低相位噪声石英基锁相环振荡器，支持大范围的频率和输出接口类型。XT设备可编程为产生15MHz至2100MHz的输出频率，分辨率低至1Hz精度。该系列设备的可配置性为样品和大型生产订单提供了快速交付时间。部件可能是工厂编程的固定频率应用，或者可能是现场配置使用I2C接口。6G室外基站晶振，无人机晶振，6G路由器晶振，6G通讯终端晶振

瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振

Symbol	Parameter	Test Condition	Minimum	Typical	Maximum	Units
F	输出频率范围	LVDS, LVPECL, CML.	15	—	2100	MHz
F	输出频率范围	HCSL.	15	—	725	MHz
	频率容差	Temperature = -40°C to +85°C.	—	—	±3	PPM
	频率稳定度	TA= 25°C.	—	—	±2
	老化（第一年）	TA= 25°C.	—	—	±1
	老化（十年）	TA= 25°C.	—	—	±7
	输出负载	LVDS.	—	100	—	Ω
		LVPECL.	—	50	—
		HCSL.	—	50	—
TST	启动时间	Output valid time after VDDmeets minimum specified level.	—	5	—	ms
tR	输出上升时间	LVDS.	—	299	400	ps
		LVPECL.	—	287	400
		HCSL.	—	306	400
		CML	—	301	400
tF	输出下降时间	LVDS.	—	279	400	ps
		LVPECL.	—	274	400
		HCSL.	—	284	400
		CML	—	279	400
ODC	输出时钟工作周期	LVDS.	45	—	55	%
		LVPECL.	45	—	55
		HCSL.	45	—	55
		CML	45	—	55
TOE	输出启用/禁用时间	—	—	1	—	ms

瑞萨进口晶振,XTP332087.000000I晶振,太空空间站晶振

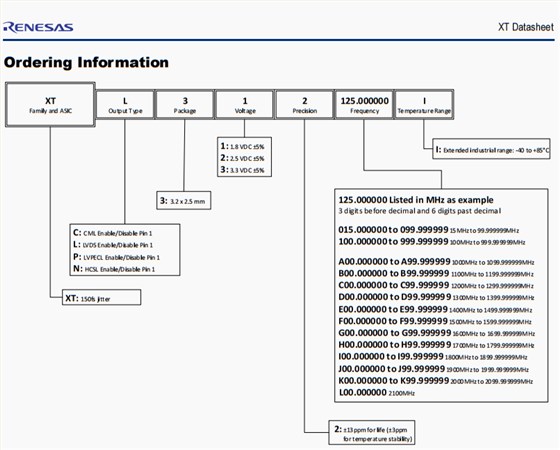

Renesas原厂编码	生产商品牌	型号	频率	输出	电源电压	频率稳定度	工作温度
XTP332156.250000I	Renesas晶振	XT	156.25 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTL312625.000000I	Renesas晶振	XT	625 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTN312100.000000I	Renesas晶振	XT	100 MHz	HCSL	1.8V	±3ppm	-40°C ~ 85°C
XTL322080.000000I	Renesas晶振	XT	80 MHz	LVDS	2.5V	±3ppm	-40°C ~ 85°C
XTP322100.000000I	Renesas晶振	XT	100 MHz	LVPECL	2.5V	±3ppm	-40°C ~ 85°C
XTP332100.000000I	Renesas晶振	XT	100 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTL312100.000000I	Renesas晶振	XT	100 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTP332K48.479000I	Renesas晶振	XT	2.048479 GHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTP332087.000000I	Renesas晶振	XT	87 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTC312272.800000I	Renesas晶振	XT	272.8 MHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC332272.800000I	Renesas晶振	XT	272.8 MHz	CML	3.3V	±3ppm	-40°C ~ 85°C
XTN322100.000000I	Renesas晶振	XT	100 MHz	HCSL	2.5V	±3ppm	-40°C ~ 85°C
XTP332025.000000I	Renesas晶振	XT	25 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTL322100.000000I	Renesas晶振	XT	100 MHz	LVDS	2.5V	±3ppm	-40°C ~ 85°C
XTL332125.000000I	Renesas晶振	XT	125 MHz	LVDS	3.3V	±3ppm	-40°C ~ 85°C
XTN312032.000000I	Renesas晶振	XT	32 MHz	HCSL	1.8V	±3ppm	-40°C ~ 85°C
XTP322025.000000I	Renesas晶振	XT	25 MHz	LVPECL	2.5V	±3ppm	-40°C ~ 85°C
XTL312156.250000I	Renesas晶振	XT	156.25 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTP332204.800000I	Renesas晶振	XT	204.8 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTL322200.000000I	Renesas晶振	XT	200 MHz	LVDS	2.5V	±3ppm	-40°C ~ 85°C
XTL312125.000000I	Renesas晶振	XT	125 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTP332039.145000I	Renesas晶振	XT	39.145 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTP332045.000000I	Renesas晶振	XT	45 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTL332148.351648I	Renesas晶振	XT	148.351648 MHz	LVDS	3.3V	±3ppm	-40°C ~ 85°C
XTL312L00.000000I	Renesas晶振	XT	2.1 GHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTL312A00.000000I	Renesas晶振	XT	1 GHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTC332100.000000I	Renesas晶振	XT	100 MHz	CML	3.3V	±3ppm	-40°C ~ 85°C
XTL312016.000000I	Renesas晶振	XT	16 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTP332L00.000000I	Renesas晶振	XT	2.1 GHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTP332040.000000I	Renesas晶振	XT	40 MHz	LVPECL	3.3V	±3ppm	-40°C ~ 85°C
XTP322K99.999999I	Renesas晶振	XT	2.099999999 GHz	LVPECL	2.5V	±3ppm	-40°C ~ 85°C
XTN332100.000000I	Renesas晶振	XT	100 MHz	HCSL	3.3V	±3ppm	-40°C ~ 85°C
XTL312779.215495I	Renesas晶振	XT	779.215495 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTL312779.215000I	Renesas晶振	XT	779.215 MHz	LVDS	1.8V	±3ppm	-40°C ~ 85°C
XTC312818.991000I	Renesas晶振	XT	818.991 MHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312779.215000I	Renesas晶振	XT	779.215 MHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312822.128000I	Renesas晶振	XT	822.128 MHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312G81.518000I	Renesas晶振	XT	1.681518 GHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312840.759000I	Renesas晶振	XT	840.759 MHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312G37.982000I	Renesas晶振	XT	1.637982 GHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312F88.430000I	Renesas晶振	XT	1.58843 GHz	CML	1.8V	±3ppm	-40°C ~ 85°C
XTC312G44.256000I	Renesas晶振	XT	1.644256 GHz	CML	1.8V	±3ppm	-40°C ~ 85°C
