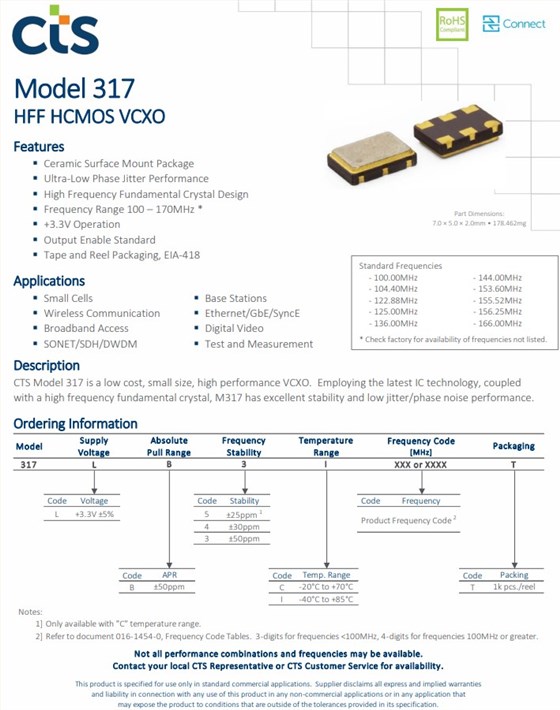

317LB5C1250T,125MHz,7050mm,317系列SMD晶振,CTS通信晶振，美国进口晶振，CTS晶振，西迪斯晶振，型号：317系列晶振，编码为：317LB5C1250T，频率：125MHz，频率稳定性：±25ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器，VCXO晶振，压控晶振，HCMOS输出振荡器，CTS 317型是一款低成本、小尺寸、高性能的VCXO。M317采用最新的IC技术，再加上高频基晶体，具有优异的稳定性和低抖动/相位噪声性能。应用于：无线通信晶振，宽带接入晶振，基站应用晶振，以太网/GbE/SyncE，数字视频，测试和测量等应用。
317LB5C1250T,125MHz,7050mm,317系列SMD晶振,CTS通信晶振，产品特征：
陶瓷表面安装封装
超低相位抖动性能
高频基本晶体设计
频率范围100–170MHz
+3.3V操作贴片晶振
输出启用标准
带卷包装，EIA-418
317LB5C1250T,125MHz,7050mm,317系列SMD晶振,CTS通信晶振
| PARAMETER | SYMBO L | CO NDITIO NS | MIN | TY P | MAX | UNIT | ||||||||||||||
| Freq uencyRange | fO | - | 125 | MHz | ||||||||||||||||
|
Freq uencyStability [Note 1] |
Δf/fO | ±25ppm stability, -20°C to +70°C only | 25, 30 or 50 | ±ppm | ||||||||||||||||
|
Abso l uteP u llRange [Note 2] |
APR | - | 50 | - | - | ±ppm | ||||||||||||||
| Agi ng | Δf/f25 | First Year @ +25°C, nominal VCCand VC | -3 | - | 3 | ppm | ||||||||||||||
|
1.]Inclusive of initial tolerance at time of shipment, changes in supply voltage, load, temperature and 1st year aging. 2.]Minimum guaranteed frequency shift from fOover variations in temperature, aging, power supply and load. |
||||||||||||||||||||
| Output Parameters | ||||||||||||||||||||
| PARAMETER | SYMBO L | CO NDITIO NS | MIN | TY P | MAX | UNIT | ||||||||||||||
| Output Type | - | - | HCMOS | - | ||||||||||||||||
| Output VoltageLevels |
VOH VOL |
Logic '1' Level, CMOS Load Logic '0' Level, CMOS Load |
0.9VCC - |
- - |
- 0.1VCC |
V | ||||||||||||||
| OutputDutyCycle | SYM | @ 50% Level | 45 | - | 55 | % | ||||||||||||||
| Rise andFall Time | TR, TF | @ 20%/80% Levels | - | 1.5 | 3.0 | ns | ||||||||||||||
| StartUp Time | TS | Application of VCC | - | - | 5 | ms | ||||||||||||||
| EnableFunction | ||||||||||||||||||||
| EnableInput Voltage | VIH | Pin 2 Logic '1', Output Enabled | 0.7VCC | - | - | V | ||||||||||||||
| DisableInput Voltage | VIL | Pin 2 Logic '0', Output Standby | - | - | 0.3VCC | V | ||||||||||||||
| StandbyCurrent | ISTB | Pin 2 Logic '0', Output Standby | - | - | 10 | µA | ||||||||||||||
| Enable Time | TPLZ | Pin 2 Logic '1' | - | - | 2 | ms | ||||||||||||||
| Phase Jitter,RMS | tjrms | Bandwidth 12kHz - 20MHz | - | 50 | 150 | fs | ||||||||||||||
| PhaseNoise | - | See Typical Plots | - | - | - | - | ||||||||||||||
317LB5C1250T,125MHz,7050mm,317系列SMD晶振,CTS通信晶振
| 石英晶体振荡器 | 品牌 | 型号 | 频率 | 频率稳定度 | 包装/封装 |
| 317LB3I1228T | CTS西迪斯晶振 | 317 | 122.88MHz | ±50ppm | 6-SMD, No Lead |
| 317LB3C1228T | CTS西迪斯晶振 | 317 | 122.88MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5C1000T | CTS西迪斯晶振 | 317 | 100MHz | ±25ppm | 6-SMD, No Lead |
| 317LB5I1000T | CTS西迪斯晶振 | 317 | 100MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1000T | CTS西迪斯晶振 | 317 | 100MHz | ±20ppm | 6-SMD, No Lead |
| 317LB5C1228T | CTS西迪斯晶振 | 317 | 122.88MHz | ±25ppm | 6-SMD, No Lead |
| 317LB3C1000T | CTS西迪斯晶振 | 317 | 100MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5C1250T | CTS西迪斯晶振 | 317 | 125MHz | ±25ppm | 6-SMD, No Lead |
| 317LB5I1228T | CTS西迪斯晶振 | 317 | 122.88MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1228T | CTS西迪斯晶振 | 317 | 122.88MHz | ±20ppm | 6-SMD, No Lead |
| 317LB3C1250T | CTS西迪斯晶振 | 317 | 125MHz | ±50ppm | 6-SMD, No Lead |
| 317LB3I1000T | CTS西迪斯晶振 | 317 | 100MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5I1250T | CTS西迪斯晶振 | 317 | 125MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1250T | CTS西迪斯晶振 | 317 | 125MHz | ±20ppm | 6-SMD, No Lead |
| 317LB3I1250T | CTS西迪斯晶振 | 317 | 125MHz | ±50ppm | 6-SMD, No Lead |
| 317LB3C1536T | CTS西迪斯晶振 | 317 | 153.6MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5C1536T | CTS西迪斯晶振 | 317 | 153.6MHz | ±25ppm | 6-SMD, No Lead |
| 317LB3C1555T | CTS西迪斯晶振 | 317 | 155.52MHz | ±50ppm | 6-SMD, No Lead |
| 317LB3C1562T | CTS西迪斯晶振 | 317 | 156.25MHz | ±50ppm | 6-SMD, No Lead |
| 317LB3I1536T | CTS西迪斯晶振 | 317 | 153.6MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5I1536T | CTS贴片晶振 | 317 | 153.6MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1536T | CTS西迪斯晶振 | 317 | 153.6MHz | ±20ppm | 6-SMD, No Lead |
| 317LB3I1555T | CTS西迪斯晶振 | 317 | 155.52MHz | ±50ppm | 6-SMD, No Lead |
| 317LB3I1562T | CTS西迪斯晶振 | 317 | 156.25MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5C1555T | CTS西迪斯晶振 | 317 | 155.52MHz | ±25ppm | 6-SMD, No Lead |
| 317LB5I1555T | CTS西迪斯晶振 | 317 | 155.52MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1555T | CTS西迪斯晶振 | 317 | 155.52MHz | ±20ppm | 6-SMD, No Lead |
| 317LB3C1660T | CTS西迪斯晶振 | 317 | 166MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5C1562T | CTS西迪斯晶振 | 317 | 156.25MHz | ±25ppm | 6-SMD, No Lead |
| 317LB3I1660T | CTS西迪斯晶振 | 317 | 166MHz | ±50ppm | 6-SMD, No Lead |
| 317LB5I1562T | CTS西迪斯晶振 | 317 | 156.25MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1562T | CTS西迪斯晶振 | 317 | 156.25MHz | ±20ppm | 6-SMD, No Lead |
| 317LB5C1660T | CTS西迪斯晶振 | 317 | 166MHz | ±25ppm | 6-SMD, No Lead |
| 317LB5I1660T | CTS西迪斯晶振 | 317 | 166MHz | ±25ppm | 6-SMD, No Lead |
| 317LB6C1660T | CTS西迪斯晶振 | 317 | 166MHz | ±20ppm | 6-SMD, No Lead |
