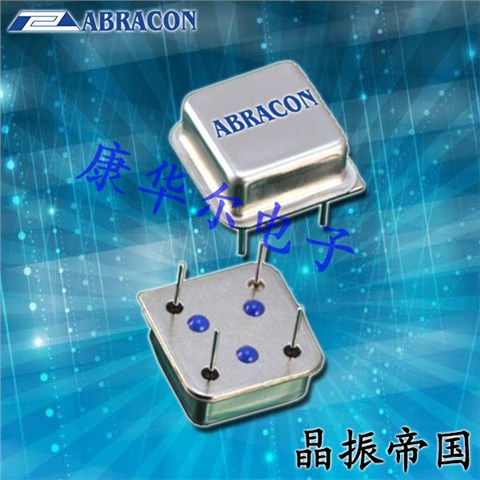

ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振

ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振

产品简介

ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振,Abracon钟振,欧美进口晶振,ACH-24.576MHz-LKSA-15-G晶振,石英晶体振荡器,有源石英晶振,24.576MHz,电压5V,工作温度-40~85°C,尺寸12.7 x 12.7 x 5.6mm,6G室内路由器晶振,微处理器晶振,数字电路晶振,计算机及外围设备晶振,存储区域组网晶振,光纤通道晶振.

产品详情

1

ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振,Abracon钟振,欧美进口晶振,ACH-24.576MHz-LKSA-15-G晶振,石英晶体振荡器,有源石英晶振,频率24.576MHz,电压5V,工作温度-40~85°C,尺寸12.7 x 12.7 x 5.6mm,6G室内路由器晶振,微处理器晶振,数字电路晶振,计算机及外围设备晶振,存储区域组网晶振,光纤通道晶振.

ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振特点：

•宽频率范围

•HCMOS和TTL兼容

•紧对称选项

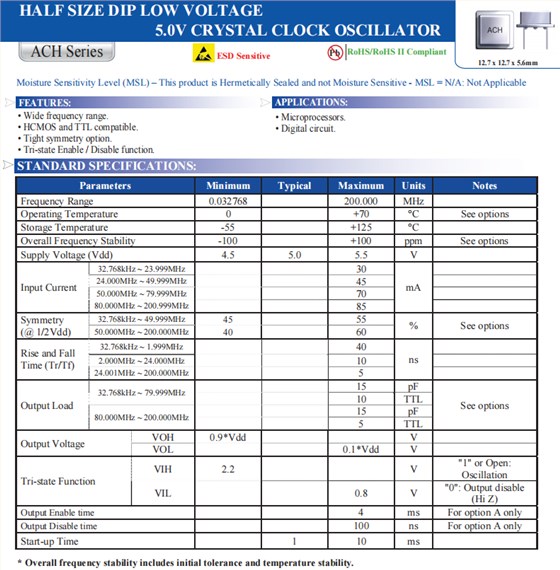

•三状态启用/禁用选项ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振参数图

参数 ACH
频率 24.576MHz
频率公差 30ppm
电源电压
+5.0V (±5%)
输入电流
45mA
对称@ 1/2Vdd forHCMOS

或@ 1.4Vdc forTTL

45%min

55%max

输出电压
VOH 0.9*Vdd min
VOL0.1*Vdd max
输出负载
15pF
上升与下降时间
5ns max
工作温度 -40 to +85°C
保存温度 –55 to +125°C
  • 允许输出时间
4ms max
禁用时间
 100nsmax

3

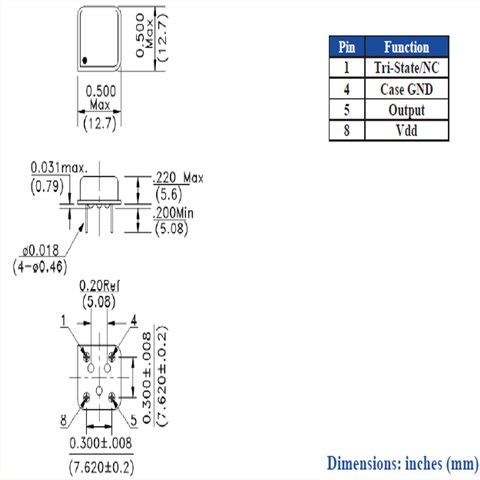

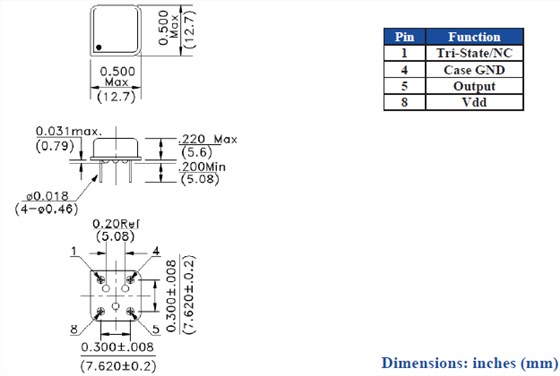

ACH-24.576MHz-LKSA-15-G,6G室内路由器晶振,Abracon进口钟振尺寸图

ACH 12.7-12.7 XO OSC
