爱普生是日本有名的频率元件制造商,专业生产销售石英晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品。

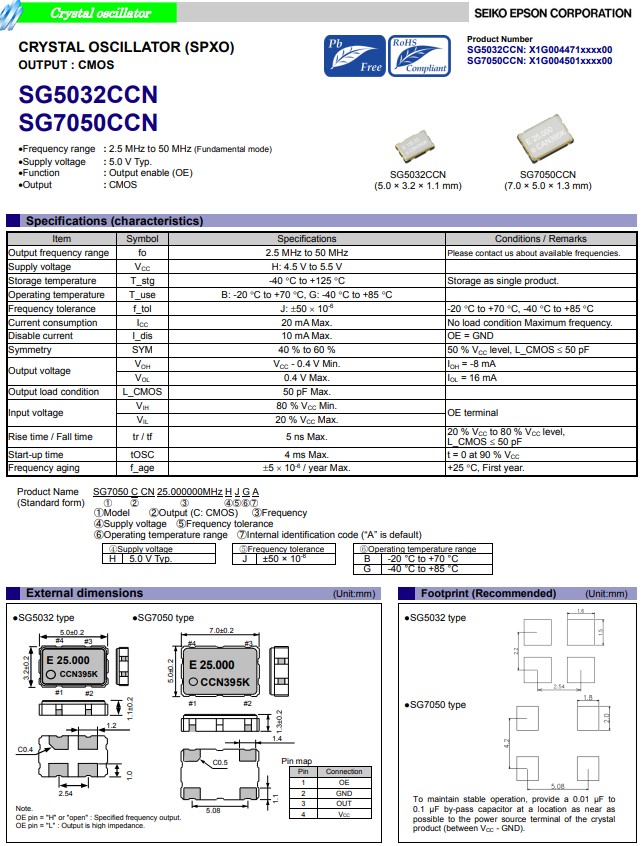

爱普生晶振SG7050CCN是一款额定频率范围2.5MHz至50MHz的石英晶体振荡器(SPXO)，支持CMOS输出，具有小尺寸7.0x5.0mm四脚贴片晶振，高稳定性，其中爱普生的一款额定频率16.000MHz,+/-50ppm晶振，7050封装常规有源晶振，原厂编码X1G004501000300，是爱普生常规有源晶振中的热销型号之一。该款晶体振荡器，可以在-40℃至+85℃的温度内稳定工作,频率公差为+/-50ppm。被广泛应用于汽车多媒体，车身电子，移动通讯，太空设备，防盗防灾装置，安防监控等。
CMOS输出石英晶体振荡器X1G004501000300适用于防盗防灾装置
            产品编码
|
  型号
|
  频率
|
  爱普生晶振
|
  输出波
|
  电源电压
|
  工作温度
|
| X1G004501000100 | SG7050CCN | 4.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501000300 | SG7050CCN | 16.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501000400 | SG7050CCN | 48.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501000500 | SG7050CCN | 11.059200MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501000600 | SG7050CCN | 20.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501000800 | SG7050CCN | 25.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501000900 | SG7050CCN | 33.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001000 | SG7050CCN | 40.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001100 | SG7050CCN | 44.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001200 | SG7050CCN | 49.152000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001400 | SG7050CCN | 4.915200MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001500 | SG7050CCN | 8.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001600 | SG7050CCN | 5.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001700 | SG7050CCN | 24.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001800 | SG7050CCN | 3.579545MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501001900 | SG7050CCN | 3.686400MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501002000 | SG7050CCN | 6.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501002100 | SG7050CCN | 12.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501002600 | SG7050CCN | 14.745600MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501002800 | SG7050CCN | 27.095000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501002900 | SG7050CCN | 29.500000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501003000 | SG7050CCN | 3.072000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501003100 | SG7050CCN | 10.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501003200 | SG7050CCN | 12.288000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501003300 | SG7050CCN | 18.432000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501003400 | SG7050CCN | 19.660800MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501004000 | SG7050CCN | 7.372800MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501004800 | SG7050CCN | 15.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501005000 | SG7050CCN | 6.600000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501005700 | SG7050CCN | 20.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -20 to 70°C |
| X1G004501006000 | SG7050CCN | 8.192000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501006100 | SG7050CCN | 9.830400MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501007900 | SG7050CCN | 7.000000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501008300 | SG7050CCN | 6.144000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501008400 | SG7050CCN | 14.318180MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501008600 | SG7050CCN | 32.768000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -20 to 70°C |
| X1G004501008900 | SG7050CCN | 33.330000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501009000 | SG7050CCN | 40.960000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501009100 | SG7050CCN | 13.560000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -20 to 70°C |
| X1G004501009200 | SG7050CCN | 33.333000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501009300 | SG7050CCN | 9.170000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
| X1G004501009600 | SG7050CCN | 36.864000MHz | 7.00x5.00x1.50mm | CMOS | 4.500 to 5.500V | -40 to 85°C |
CMOS输出石英晶体振荡器X1G004501000300适用于防盗防灾装置
石英晶体振荡器（以下简称晶振）是利用石英晶体压电效应而制成的器件，它的作用是输出高精度和高稳定度的脉冲信号，为整个电路提供时序基准。我们知道，现在电路中有越来越多的时序电路，它们之间的协同运行必须要有一个时间基准，才能统一一致的行动，就像电视剧里特种行动小队在出发前都要对下表一样，晶振在系统中起的作用就如同队长的手表，它如果稳定性或准确性不好的话，那整个系统就会错误频出，故障率很高。所以又把晶振称为单板的“心脏”。 石英晶体振荡器是由品质因数Q极高的石英晶体谐振器和振荡电路组成。晶体的品质因数、切割取向、晶体振子的结构及电路形式等，共同决定振荡器的性能。国际电工委员会（IEC）将石英晶体振荡器分为4类：普通晶体振荡（SPXO），电压控制式晶体振荡（VCXO），温度补偿式晶体振荡（TCXO），恒温控制式晶体振荡（OCXO）。目前发展中的还有数字补偿式晶体振荡（DCXO）以及混合式的VOCXO振荡等。
