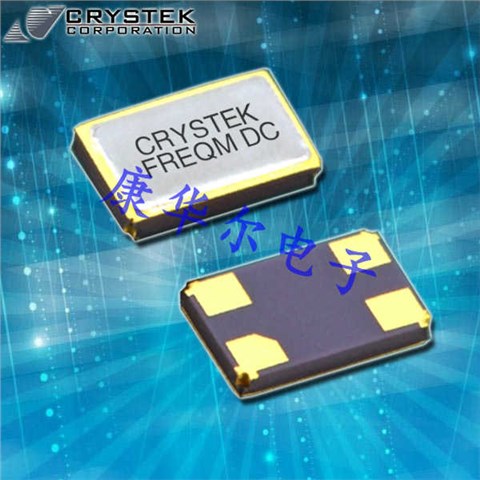

Crystek晶振,C3291-44.736,贴片时钟振荡器,6G模块晶振,Crystek晶振,欧美进口晶振,C32XX时钟振荡器,有源晶振,石英贴片晶振,C3291-44.736晶振,7050mm晶振,频率44.736MHz,电压5V,HCMOS输出,工作温度0~70°C,抗冲击晶振,耐高温晶振,6G模块晶振,DWDM晶振,存储区域网络晶振,宽带接入晶振,千兆以太网晶振.
Crystek晶振,C3291-44.736,贴片时钟振荡器,6G模块晶振规格表
| 项目 | 规格说明 | 条件 |
| 额定频率 | 44.736MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 5V |
|
| 储存温度 | -45℃~+90℃ | 开封裸存 |
| 工作温度 | 0℃~ +70℃ |
|
| 频率稳定度 | ±25 ppm |
|
| 输入电流 | 60mA Max | 无负载条件 |
| 相位抖动 |
0.5ps Typical, 1ps Max
|
12kHz~20MHz
|
| 负载 | 30pF Max |
|
| 上升/下降时间 | 6ns Max. |
@ 20% to 80% Vdd
|
| 启动时间 |
10ms Max
|
|
| 频率老化 | <3ppm 1styear | <1ppmevery year thereafter |

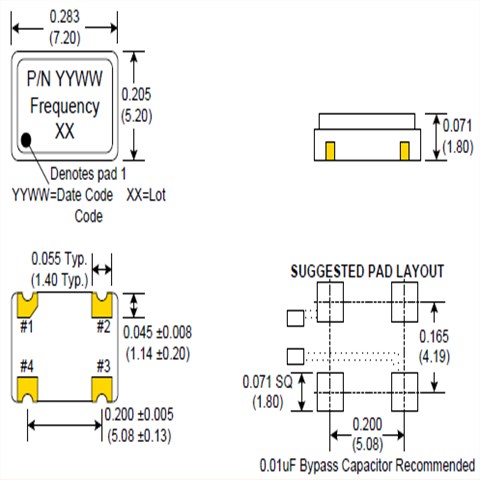

Crystek晶振,C3291-44.736,贴片时钟振荡器,6G模块晶振尺寸图
| 原厂代码 | 制造品牌 | 型号 | Type 类型 | 频率 | 频率稳定度 | 工作温度 |
| C3291-1.544 | CRYSTEK晶振 | C3291 | XO (Standard) | 1.544MHz | ±25ppm | 0°C ~ 70°C |
| C3291-1.843200 | CRYSTEK晶振 | C3291 | XO (Standard) | 1.8432MHz | ±25ppm | 0°C ~ 70°C |
| C3291-10.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 10MHz | ±25ppm | 0°C ~ 70°C |
| C3291-12.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 12MHz | ±25ppm | 0°C ~ 70°C |
| C3291-12.288 | CRYSTEK晶振 | C3291 | XO (Standard) | 12.288MHz | ±25ppm | 0°C ~ 70°C |
| C3291-12.352 | CRYSTEK晶振 | C3291 | XO (Standard) | 12.352MHz | ±25ppm | 0°C ~ 70°C |
| C3291-14.318180 | CRYSTEK晶振 | C3291 | XO (Standard) | 14.31818MHz | ±25ppm | 0°C ~ 70°C |
| C3291-15.360 | CRYSTEK晶振 | C3291 | XO (Standard) | 15.36MHz | ±25ppm | 0°C ~ 70°C |
| C3291-16.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 16MHz | ±25ppm | 0°C ~ 70°C |
| C3291-16.384 | CRYSTEK晶振 | C3291 | XO (Standard) | 16.384MHz | ±25ppm | 0°C ~ 70°C |
| C3291-18.432 | CRYSTEK晶振 | C3291 | XO (Standard) | 18.432MHz | ±25ppm | 0°C ~ 70°C |
| C3291-19.440 | CRYSTEK晶振 | C3291 | XO (Standard) | 19.44MHz | ±25ppm | 0°C ~ 70°C |
| C3291-2.048 | CRYSTEK晶振 | C3291 | XO (Standard) | 2.048MHz | ±25ppm | 0°C ~ 70°C |
| C3291-20.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 20MHz | ±25ppm | 0°C ~ 70°C |
| C3291-20.480 | CRYSTEK晶振 | C3291 | XO (Standard) | 20.48MHz | ±25ppm | 0°C ~ 70°C |
| C3291-24.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 24MHz | ±25ppm | 0°C ~ 70°C |
| C3291-24.704 | CRYSTEK晶振 | C3291 | XO (Standard) | 24.704MHz | ±25ppm | 0°C ~ 70°C |
| C3291-25.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 25MHz | ±25ppm | 0°C ~ 70°C |
| C3291-3.686400 | CRYSTEK晶振 | C3291 | XO (Standard) | 3.6864MHz | ±25ppm | 0°C ~ 70°C |
| C3291-30.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 30MHz | ±25ppm | 0°C ~ 70°C |
| C3291-32.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 32MHz | ±25ppm | 0°C ~ 70°C |
| C3291-32.768 | CRYSTEK晶振 | C3291 | XO (Standard) | 32.768MHz | ±25ppm | 0°C ~ 70°C |
| C3291-33.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 33MHz | ±25ppm | 0°C ~ 70°C |
| C3291-33.333 | CRYSTEK晶振 | C3291 | XO (Standard) | 33.333MHz | ±25ppm | 0°C ~ 70°C |
| C3291-35.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 35MHz | ±25ppm | 0°C ~ 70°C |
| C3291-4.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 4MHz | ±25ppm | 0°C ~ 70°C |
| C3291-40.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 40MHz | ±25ppm | 0°C ~ 70°C |
| C3291-44.736 | CRYSTEK晶振 | C3291 | XO (Standard) | 44.736MHz | ±25ppm | 0°C ~ 70°C |
| C3291-45.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 45MHz | ±25ppm | 0°C ~ 70°C |
| C3291-49.152 | CRYSTEK晶振 | C3291 | XO (Standard) | 49.152MHz | ±25ppm | 0°C ~ 70°C |
| C3291-50.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 50MHz | ±25ppm | 0°C ~ 70°C |
| C3291-51.840 | CRYSTEK晶振 | C3291 | XO (Standard) | 51.84MHz | ±25ppm | 0°C ~ 70°C |
| C3291-6.176 | CRYSTEK晶振 | C3291 | XO (Standard) | 6.176MHz | ±25ppm | 0°C ~ 70°C |
| C3291-7.372800 | CRYSTEK晶振 | C3291 | XO (Standard) | 7.3728MHz | ±25ppm | 0°C ~ 70°C |
| C3291-8.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 8MHz | ±25ppm | 0°C ~ 70°C |
| CE3291-1.544 | CRYSTEK晶振 | C3291 | XO (Standard) | 1.544MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-1.843200 | CRYSTEK晶振 | C3291 | XO (Standard) | 1.8432MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-10.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 10MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-12.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 12MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-12.288 | CRYSTEK晶振 | C3291 | XO (Standard) | 12.288MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-12.352 | CRYSTEK晶振 | C3291 | XO (Standard) | 12.352MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-14.318180 | CRYSTEK晶振 | C3291 | XO (Standard) | 14.31818MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-15.360 | CRYSTEK晶振 | C3291 | XO (Standard) | 15.36MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-16.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 16MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-16.384 | CRYSTEK晶振 | C3291 | XO (Standard) | 16.384MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-18.432 | CRYSTEK晶振 | C3291 | XO (Standard) | 18.432MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-19.440 | CRYSTEK晶振 | C3291 | XO (Standard) | 19.44MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-2.048 | CRYSTEK晶振 | C3291 | XO (Standard) | 2.048MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-20.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 20MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-20.480 | CRYSTEK晶振 | C3291 | XO (Standard) | 20.48MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-24.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 24MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-24.704 | CRYSTEK晶振 | C3291 | XO (Standard) | 24.704MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-25.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 25MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-3.686400 | CRYSTEK晶振 | C3291 | XO (Standard) | 3.6864MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-30.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 30MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-32.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 32MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-32.768 | CRYSTEK晶振 | C3291 | XO (Standard) | 32.768MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-33.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 33MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-33.333 | CRYSTEK晶振 | C3291 | XO (Standard) | 33.333MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-35.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 35MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-4.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 4MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-40.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 40MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-6.176 | CRYSTEK晶振 | C3291 | XO (Standard) | 6.176MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-7.372800 | CRYSTEK晶振 | C3291 | XO (Standard) | 7.3728MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-8.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 8MHz | ±25ppm | -40°C ~ 85°C |
| C3291-60.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 60MHz | ±25ppm | 0°C ~ 70°C |
| C3291-64.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 64MHz | ±25ppm | 0°C ~ 70°C |
| C3291-66.666600 | CRYSTEK晶振 | C3291 | XO (Standard) | 66.6666MHz | ±25ppm | 0°C ~ 70°C |
| CE3291-44.736 | CRYSTEK晶振 | C3291 | XO (Standard) | 44.736MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-45.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 45MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-49.152 | CRYSTEK晶振 | C3291 | XO (Standard) | 49.152MHz | ±25ppm | -40°C ~ 85°C |
| C3291-75.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 75MHz | ±25ppm | 0°C ~ 70°C |
| CE3291-50.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 50MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-51.840 | CRYSTEK晶振 | C3291 | XO (Standard) | 51.84MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-60.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 60MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-64.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 64MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-66.666600 | CRYSTEK晶振 | C3291 | XO (Standard) | 66.6666MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-75.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 75MHz | ±25ppm | -40°C ~ 85°C |
| C3291-80.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 80MHz | ±25ppm | 0°C ~ 70°C |
| CE3291-80.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 80MHz | ±25ppm | -40°C ~ 85°C |
| C3291-100.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 100MHz | ±25ppm | 0°C ~ 70°C |
| C3291-106.250 | CRYSTEK晶振 | C3291 | XO (Standard) | 106.25MHz | ±25ppm | 0°C ~ 70°C |
| CE3291-100.000 | CRYSTEK晶振 | C3291 | XO (Standard) | 100MHz | ±25ppm | -40°C ~ 85°C |
| CE3291-106.250 | CRYSTEK晶振 | C3291 | XO (Standard) | 106.25MHz | ±25ppm | -40°C ~ 85°C |
