HOSONIC晶振,5032mm晶振,E5FA40.0000F18E33,6G相关设备晶振

HOSONIC晶振,5032mm晶振,E5FA40.0000F18E33,6G相关设备晶振,台湾HOSONIC晶振,E5FA无源晶振,E5FA40.0000F18E33晶振,5032贴片晶振,进口晶体谐振器,频率40MHz,负载18pF,频率偏差30ppm,工作温度-20~70°C,高稳定性晶振,低老化晶振,6G相关设备晶振,无线电通讯晶振,网络终端晶振,智能家居应用晶振.

HOSONIC晶振,5032mm晶振,E5FA40.0000F18E33,6G相关设备晶振特点：

•紧凑和薄(5.0 *3.2* 1.4 mm Max)

•适用于各种应用

•主要为DlP型晶体设计切换解决方案考虑

•通过无铅认证

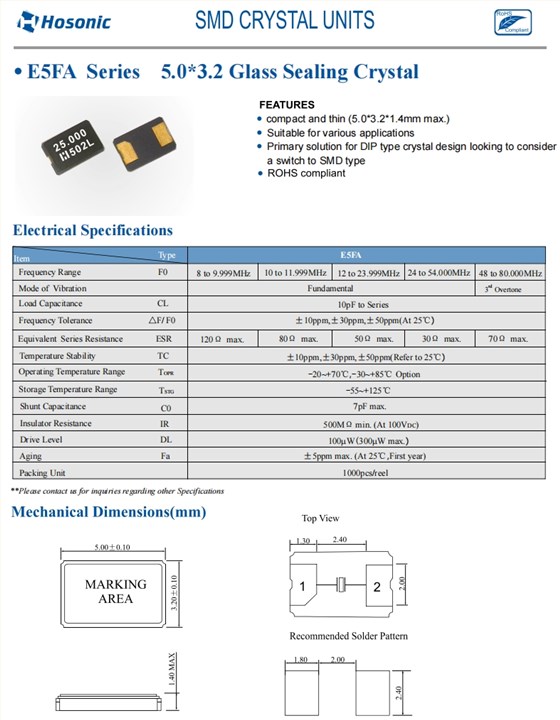

HOSONIC晶振,5032mm晶振,E5FA40.0000F18E33,6G相关设备晶振参数图

项目	符号	E5FA
频率	f0	40MHz
频率公差	△f/f0	±30ppm
温度稳定性	TC	±30ppm
并联电容	CO	7pF Max
负载电容	CL	18pF
工作温度	TOPR	－20℃～＋70℃
保存温度	TSTR	－55℃～＋125℃
串联阻力	R1	30Ω Max
驱动级别	DL	300μW Max
老化（第一年）	△f/f0	±5ppm Max.

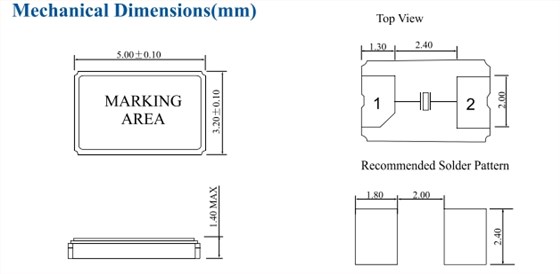

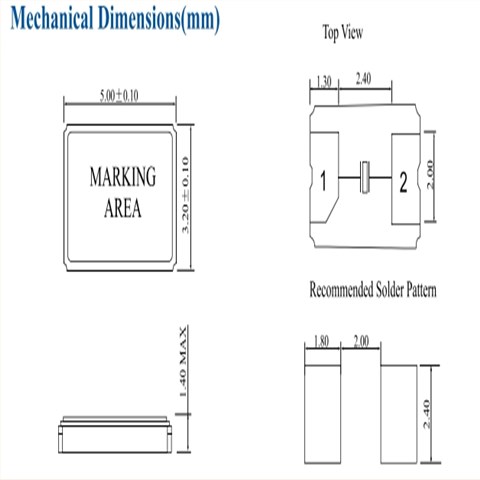

HOSONIC晶振,5032mm晶振,E5FA40.0000F18E33,6G相关设备晶振尺寸图

原厂编码	制造厂家	型号	频率	负载电容	频率容差	频率稳定度	尺寸	工作温度
E5FA13.5600F18E33	Hosonic晶振	E5FA	13.56 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA14.7456F18E33	Hosonic晶振	E5FA	14.7456 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA18.4320F18E33	Hosonic晶振	E5FA	18.432 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA10.0000F18E33	Hosonic晶振	E5FA	10 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA16.0000F18E33	Hosonic晶振	E5FA	16 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA17.0000F18E33	Hosonic晶振	E5FA	17 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA18.0000F18E33	Hosonic晶振	E5FA	18 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA19.0000F18E33	Hosonic晶振	E5FA	19 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA20.0000F18E33	Hosonic晶振	E5FA	20 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA21.0000F18E33	Hosonic晶振	E5FA	21 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA22.0000F18E33	Hosonic晶振	E5FA	22 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA23.0000F18E33	Hosonic晶振	E5FA	23 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA24.0000F18E33	Hosonic晶振	E5FA	24 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA25.0000F18E33	Hosonic晶振	E5FA	25 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA26.0000F18E33	Hosonic晶振	E5FA	26 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA27.0000F18E33	Hosonic晶振	E5FA	27 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA28.0000F18E33	Hosonic晶振	E5FA	28 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA29.0000F18E33	Hosonic晶振	E5FA	29 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA30.0000F18E33	Hosonic晶振	E5FA	30 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA31.0000F18E33	Hosonic晶振	E5FA	31 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA32.0000F18E33	Hosonic晶振	E5FA	32 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA33.0000F18E33	Hosonic晶振	E5FA	33 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA34.0000F18E33	Hosonic晶振	E5FA	34 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA35.0000F18E33	Hosonic晶振	E5FA	35 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA36.0000F18E33	Hosonic晶振	E5FA	36 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA37.0000F18E33	Hosonic晶振	E5FA	37 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA38.0000F18E33	Hosonic晶振	E5FA	38 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA39.0000F18E33	Hosonic晶振	E5FA	39 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA40.0000F18E33	Hosonic晶振	E5FA	40 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA41.0000F18E33	Hosonic晶振	E5FA	41 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA42.0000F18E33	Hosonic晶振	E5FA	42 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA43.0000F18E33	Hosonic晶振	E5FA	43 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA44.0000F18E33	Hosonic晶振	E5FA	44 MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA45.0000F18E33	Hosonic晶振	E5FA	45MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA46.0000F18E33	Hosonic晶振	E5FA	46MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA47.0000F18E33	Hosonic晶振	E5FA	47MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA48.0000F18E33	Hosonic晶振	E5FA	48MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA49.0000F18E33	Hosonic晶振	E5FA	49MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
E5FA50.0000F18E33	Hosonic晶振	E5FA	50MHz	18 pF	±30 ppm	±30 ppm	5 x 3.2 x 1.2 mm	-20 to +70 °C
