Renesas晶振,XAL336080.000000I,LVDS差分晶振,6G低相噪晶振,Renesas晶振,XA有源晶振,XAL336080.000000I晶振,3225贴片晶振,LVDS差分晶振,小体积石英晶体,频率80MHz,电压3.3V,频率偏差25ppm,工作温度-40~85°C,低抖动晶振,高品质晶振,6G低相噪晶振,网络交换机晶振,低姿态应用晶振,监控摄像机晶振.

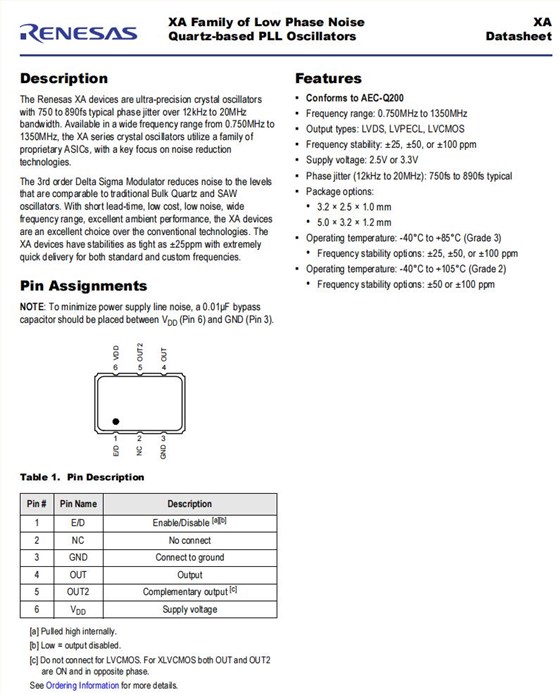

Renesas晶振,XAL336080.000000I,LVDS差分晶振,6G低相噪晶振特点：
•符合AEC-Q200标准
•频率范围:0.750MHz至1350MHz
•输出类型:LVDS, LVPECL, LVCMOS
•频率稳定性:±25，±50，或±100 ppm
•供电电压:2.5V或3.3V
•相位抖动(12kHz至20MHz): 750fs至890fs典型
•包装选项:
•3.2 × 2.5 × 1.0 mm
•5.0 × 3.2 × 1.2毫米
•工作温度:-40°C至+85°C(3级)
•稳定性选项:±25，±50，或±100 ppm
•工作温度:-40°C至+105°C(2级)
•频率稳定性选项:±50或±100 ppm
Renesas晶振,XAL336080.000000I,LVDS差分晶振,6G低相噪晶振参数图
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 80MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V±0.3V |
|
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ |
|
| 频率公差（标准） | f_tol | ±25 ppm | +25℃,超出标准的规格说明请联系我们以便获取相关信息 |
| 供电电流 | IDD | 100mA Max | OE=Vcc,L LVDS |
| 差分输出电压 | VOD | 0.6V Max | VDD = 3.3V ±5%. |
| 对称性 | SYM | 45%~55% | Atoutputscrossing point |
| 输出负载 | L_LVDS | 100Ω | LVDS |
| 输入电压 | VIH | 70%Vcc Min | LVDS |
| VIL | 30%Vcc Max | ||
| 上升下降时间 | tr/tf | 400ps Max | LVDS 20% to 80% Vpp |
| 起始时间 | t str | 10ms Max |
VDD达到最小指定水平后输出有效时间 |
| 周期抖动 | JPER |
3ps Typ |
LVDS |
| 相位抖动 | tpj | 890fs Typ | 12KHZ~20MHz |
| 老化 | f_aging | ±10ppm/year | +25℃,第一年，Vcc=2.5V,3.3V |

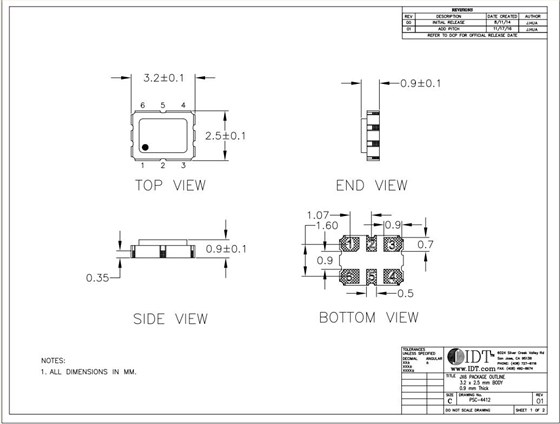

Renesas晶振,XAL336080.000000I,LVDS差分晶振,6G低相噪晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| XAH526033.300000I | Renesas Electronics America Inc | XA | 33.3 MHz | LVCMOS | 2.5V | ±25ppm | -40°C ~ 85°C |
| XAH335033.333000X | Renesas Electronics America Inc | XA | 33.333 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335033.333333X | Renesas Electronics America Inc | XA | 33.333333 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335060.000000X | Renesas Electronics America Inc | XA | 60 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335080.000000K | Renesas Electronics America Inc | XA | 80 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335100.000000K | Renesas Electronics America Inc | XA | 100 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH535156.250000I | Renesas Electronics America Inc | XA | 156.25 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAH535080.000000K | Renesas Electronics America Inc | XA | 80 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH525075.000000I | Renesas Electronics America Inc | XA | 75 MHz | LVCMOS | 2.5V | ±50ppm | -40°C ~ 85°C |
| XAH530050.000000I | Renesas Electronics America Inc | XA | 50 MHz | LVCMOS | 3.3V | ±100ppm | -40°C ~ 85°C |
| XAH335180.000000I | Renesas Electronics America Inc | XA | 180 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAH336080.000000I | Renesas Electronics America Inc | XA | 80 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH730002.000000K | Renesas Electronics America Inc | XA | 2 MHz | HCMOS | 3.3V | ±100ppm | -40°C ~ 105°C |
| XAH535050.000000K | Renesas Electronics America Inc | XA | 50 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH525040.000000K | Renesas Electronics America Inc | XA | 40 MHz | HCMOS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAH325016.640000K | Renesas Electronics America Inc | XA | 16.64 MHz | HCMOS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAH730001.000000K | Renesas Electronics America Inc | XA | 1 MHz | HCMOS | 3.3V | ±100ppm | -40°C ~ 105°C |
| XAH335026.000000K | Renesas Electronics America Inc | XA | 26 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335024.000000K | Renesas Electronics America Inc | XA | 24 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH535125.000000K | Renesas Electronics America Inc | XA | 125 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335014.745600K | Renesas Electronics America Inc | XA | 14.7456 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL335150.000000K | Renesas Electronics America Inc | XA | 150 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL335133.000000K | Renesas Electronics America Inc | XA | 133 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH536198.354700I | Renesas Electronics America Inc | XA | 198.3547 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH336000.127774I | Renesas Electronics America Inc | XA | 127.774 kHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH730008.000000K | Renesas Electronics America Inc | XA | 8 MHz | HCMOS | 3.3V | ±100ppm | -40°C ~ 105°C |
| XAH335080.000000I | Renesas Electronics America Inc | XA | 80 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAH335000.127722I | Renesas Electronics America Inc | XA | 127.722 kHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAH335000.127774I | Renesas Electronics America Inc | XA | 127.774 kHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAH535048.000000I | Renesas Electronics America Inc | XA | 48 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAH730075.000000I | Renesas Electronics America Inc | XA | 75 MHz | HCMOS | 3.3V | ±100ppm | -40°C ~ 85°C |
| XAH336100.000000X | Renesas Electronics America Inc | XA | 100 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 105°C |
| XAP520100.000000I | Renesas Electronics America Inc | XA | 100 MHz | LVPECL | 2.5V | ±100ppm | -40°C ~ 85°C |
| XAH536080.000000I | Renesas Electronics America Inc | XA | 80 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH536125.000000I | Renesas Electronics America Inc | XA | 125 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH536003.330000I | Renesas Electronics America Inc | XA | 3.33 MHz | LVCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH335003.200000K | Renesas Electronics America Inc | XA | 3.2 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335032.000000K | Renesas Electronics America Inc | XA | 32 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335006.005285K | Renesas Electronics America Inc | XA | 6.005285 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH335054.000000K | Renesas Electronics America Inc | XA | 54 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH325025.000000K | Renesas Electronics America Inc | XA | 25 MHz | LVCMOS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAH335050.000000K | Renesas Electronics America Inc | XA | 50 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAH536025.000000I | Renesas Electronics America Inc | XA | 25 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH736049.152000I | Renesas Electronics America Inc | XA | 49.152 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH736080.000000I | Renesas Electronics America Inc | XA | 80 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH736100.000000I | Renesas Electronics America Inc | XA | 100 MHz | HCMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAH335125.000000I | Renesas Electronics America Inc | XA | 125 MHz | HCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAL335106.250000I | Renesas Electronics America Inc | XA | 106.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAL335106.000000I | Renesas Electronics America Inc | XA | 106 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| XAL335200.000000K | Renesas Electronics America Inc | XA | 200 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL336200.000000I | Renesas Electronics America Inc | XA | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAL335266.000000K | Renesas Electronics America Inc | XA | 266 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL335300.000000K | Renesas Electronics America Inc | XA | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL335135.000000K | Renesas Electronics America Inc | XA | 135 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL336125.000000I | Renesas Electronics America Inc | XA | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAL325033.333300K | Renesas Electronics America Inc | XA | 33.3333 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAL336100.000000I | Renesas Electronics America Inc | XA | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAL326033.333330I | Renesas Electronics America Inc | XA | 33.33333 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| XAL330051.840000K | Renesas Electronics America Inc | XA | 51.84 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 105°C |
| XAL326864.000000I | Renesas Electronics America Inc | XA | 864 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| XAL526864.000000I | Renesas Electronics America Inc | XA | 864 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| XAL335100.000000K | Renesas Electronics America Inc | XA | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL335080.000000K | Renesas Electronics America Inc | XA | 80 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL535033.000000K | Renesas Electronics America Inc | XA | 33 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL325500.000000K | Renesas Electronics America Inc | XA | 500 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAL525500.000000K | Renesas Electronics America Inc | XA | 500 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAL525780.000000I | Renesas Electronics America Inc | XA | 780 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| XAL525150.000000K | Renesas Electronics America Inc | XA | 150 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 105°C |
| XAL335250.000000K | Renesas Electronics America Inc | XA | 250 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAL335A00.000000K | Renesas Electronics America Inc | XA | 1 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
| XAP736200.000000I | Renesas Electronics America Inc | XA | 200 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| XAL335500.000000K | Renesas Electronics America Inc | XA | 500 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 105°C |
