X2B019200BZ1H-CHZ晶振,医疗设备晶振,加高台产2520晶振

X2B019200BZ1H-CHZ晶振,医疗设备晶振,加高台产2520晶振，特点:超小型贴片型晶体器件。精度高，可靠性好，耐热性好。适用于设计空间有限的智能手机应用程序、初始化无线模块设备、RFID应用程序和其他基于消费者的产品.台湾加高晶振公司，台产晶振，超小型晶振，贴片石英晶振，低损耗晶振，高品质晶振，高精度晶振，汽车晶振，6G室外基站晶振，超小型晶振，电脑主板晶振，小尺寸晶振，耐高温晶振，耐冲击晶振，贴片晶振，2016晶振。

X2B019200BZ1H-CHZ晶振,医疗设备晶振,加高台产2520晶振

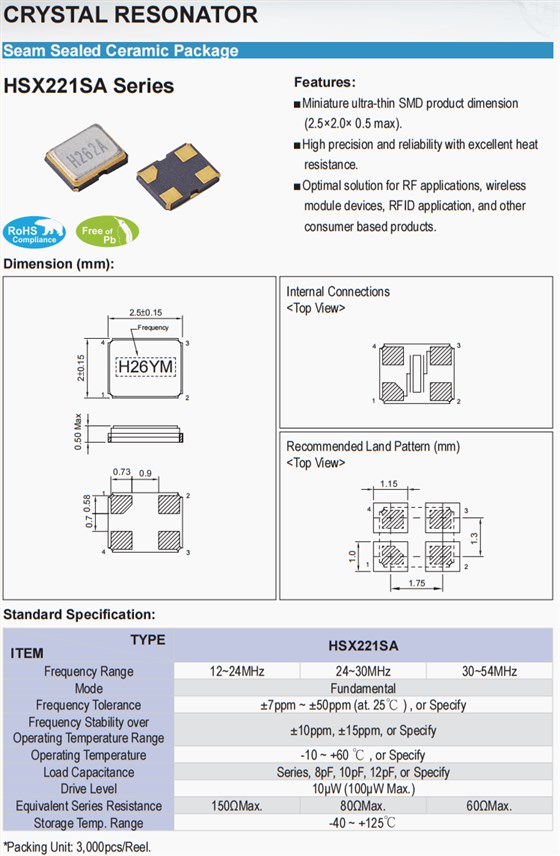

项目	HSX221SA
频率范围	12~24MHz	24~30MHz	30~54MHz
工作模式	Fundamental
频率容差	±7ppm ~ ±50ppm (at. 25℃) , or Specify
温度范围内的频率稳定度	±10ppm, ±15ppm, or Specify
工作温度	-10 ~ +60℃, or Specify
负载电荷	Series, 8pF, 10pF, 12pF, or Specify
驱动电平	10μW (100μW Max.)
等效串联电阻	150ΩMax.	80ΩMax.	60ΩMax.
储存温度范围	‘-40 ~ +125℃

20180109173140_2357

X2B019200BZ1H-CHZ晶振,医疗设备晶振,加高台产2520晶振

原厂编码	生产商	型号	频率	频率容差	负载电容	工作温度
X2B026000M81H-HS	加高晶振	HSX221SA	26 MHz	±7ppm	8pF	-
X2B016000BA1H-U	加高晶振	HSX221SA	16 MHz	±10ppm	10pF	-30°C ~ 85°C
X2B012000BC1H-U	加高晶振	HSX221SA	12 MHz	±10ppm	12pF	-40°C ~ 105°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B012000DC1H-X	加高晶振	HSX221SA	12 MHz	±20ppm	12pF	-10°C ~ 60°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B019200BZ1H-CHZ	加高晶振	HSX221SA	19.2 MHz	±12ppm	7pF	-30°C ~ 85°C
X2B024000BC1HA-V	加高晶振	HSX221SA	24 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B024000BC1H-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-30°C ~ 85°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	20pF	-20°C ~ 75°C
X2B025000BI1H-U	加高晶振	HSX221SA	25 MHz	±20ppm	18pF	-40°C ~ 85°C
X2B026000B71HZ-HPR	加高晶振	HSX221SA	26 MHz	±10ppm	7.2pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-HR	加高晶振	HSX221SA	26 MHz	±10ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HV	加高晶振	HSX221SA	26 MHz	±15ppm	9pF	-20°C ~ 75°C
X2B026000B91H-HZ	加高晶振	HSX221SA	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±20ppm	9pF	-40°C ~ 85°C
X2B026000L91H-S	加高晶振	HSX221SA	26 MHz	±12ppm	9pF	-20°C ~ 75°C
X2B026000B71HZ	加高晶振	HSX221SA	26 MHz	±10ppm	11.5pF	-10°C ~ 60°C
X2B026000BC1H-Z	加高晶振	HSX221SA	26 MHz	±10ppm	12pF	-20°C ~ 85°C
X2B027000BC1H-HU	加高晶振	HSX221SA	27 MHz	±10ppm	12pF	-10°C ~ 70°C
X2B02863ADC1H-W	加高晶振	HSX221SA	28.6363 MHz	±20ppm	12pF	-20°C ~ 70°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	10pF	-20°C ~ 70°C
X2B032000C81H-HU	加高晶振	HSX221SA	32 MHz	±15ppm	8pF	-20°C ~ 75°C
X2B032000D81H-U	加高晶振	HSX221SA	32 MHz	±20ppm	8pF	-30°C ~ 85°C
X2B032000BC1H-HZ	加高晶振	HSX221SA	32 MHz	±12ppm	12pF	-30°C ~ 85°C
X2B038400BA1H-U	加高晶振	HSX221SA	38.4 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B040000B91H-U	加高晶振	HSX221SA	40 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B04000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	15pF	-30°C ~ 85°C
X2B040000BF1H-HT	加高晶振	HSX221SA	40 MHz	±18ppm	15pF	0°C ~ 85°C
X2B040000BF1H-HZ	加高晶振	HSX221SA	40 MHz	±10ppm	15pF	-30°C ~ 85°C
X2B012000B91H-U	加高晶振	HSX221SA	12 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000B91H-HU	加高晶振	HSX221SA	16 MHz	±10ppm	9pF	-20°C ~ 70°C
X2B016000BC1H-HV	加高晶振	HSX221SA	16 MHz	±20ppm	12pF	-20°C ~ 75°C
X2B024000BCIH-HV	加高晶振	HSX221SA	24 MHz	±30ppm	12pF	-40°C ~ 85°C
X2B024000FK1H-V	加高晶振	HSX221SA	24 MHz	±30ppm	20pF	-20°C ~ 75°C
X2B026000B81H-CHZ	加高晶振	HSX221SA	26 MHz	±11ppm	8pF	-30°C ~ 85°C
X2B026000B91H-U	加高晶振	HSX221SA	26 MHz	±20ppm	9pF	-40°C ~ 85°C
X2B030000BA1H-HW	加高晶振	HSX221SA	30 MHz	±20ppm	10pF	-20°C ~ 70°C
X2B030000BA1H-U	加高晶振	HSX221SA	30 MHz	±10ppm	10pF	-20°C ~ 70°C
X2B030000FA1H-X	加高晶振	HSX221SA	30 MHz	±30ppm	10pF	-20°C ~ 70°C
X2B040000BC1H-DHZ	加高晶振	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2B040000BF1H-H	加高晶振	HSX221SA	40 MHz	±18ppm	15pF	0°C ~ 85°C
