GEYER推出KXO-77压控晶体振荡器12.92600

2024-03-14 16:42:36

GEYER推出KXO-77压控晶体振荡器12.92600
GEYER格耶电子制造商直接提供的石英晶体、振荡器和谐振器。在德国和世界范围内引领了近60年的潮流。几十年来,格耶电子一直是频率产品的领先制造商之一,石英晶体,石英晶体振荡器和陶瓷谐振器。成立于1964,我们从我们的德国总部以及欧洲、亚洲和美国的其他地方。我们非常重视与客户的密切合作从开发阶段开始。这确保了我们从一开始就提供您所需要的东西。

GEYER低功耗压控振荡器KXO-77石英晶体振荡器获得年度最佳产品提名

随着型号命名为KXO-77,我们扩大了VCXO(压控晶振)产品组合,并率先提供27MHz振荡器,最大功耗仅为2mA。
该振荡器产品系列尺寸为3.2x2.5x1.0mm贴片晶振,在3.3V电压下覆盖1-170MHz的宽频率范围,并提供1.8V和2.5V的替代方案。
该振荡器在-40℃~+85℃时的频率稳定性为37ppm,吸合电压高达140ppm,控制电压为1.65V±1.35V,进口有源晶振,非常适合频率由施加的电压控制的苛刻应用。

这种VCXO压控晶振经常用于广播应用、测试和测量仪器以及数字信号处理应用中,只要这些应用需要高频率稳定性和低抖动。

新型KXO-77振荡器

GEYER推出KXO-77压控晶体振荡器12.92600

New KXO-77 Oscillator
Voltage-controlled oscillator KXO-77 with low power consumption nominated for Product of the Year
With the model designation KXO-77, we have expanded our VCXO (voltage controlled oscillator) portfolio and are the first to offer a 27 MHz oscillator with a low current consumption of 2 mA max.
This oscillator product family with a size of 3.2 / 2.5 / 1.0 mm covers a wide frequency range of 1-170 MHz at a voltage of 3.3V and offers alternatives for 1.8V and 2.5V.
With a frequency stability of ±37 ppm at -40° ~ +85°C, a pull-in voltage of up to ±140 ppm and a control voltage of 1.65 V±1.35 V, this oscillator is ideally suited for demanding applications where the frequency is controlled by the applied voltage.
Such VCXOs are frequently used in broadcast applications, in test and measurement instruments and in digital signal processing applications, wherever high frequency stability and low jitter are required.

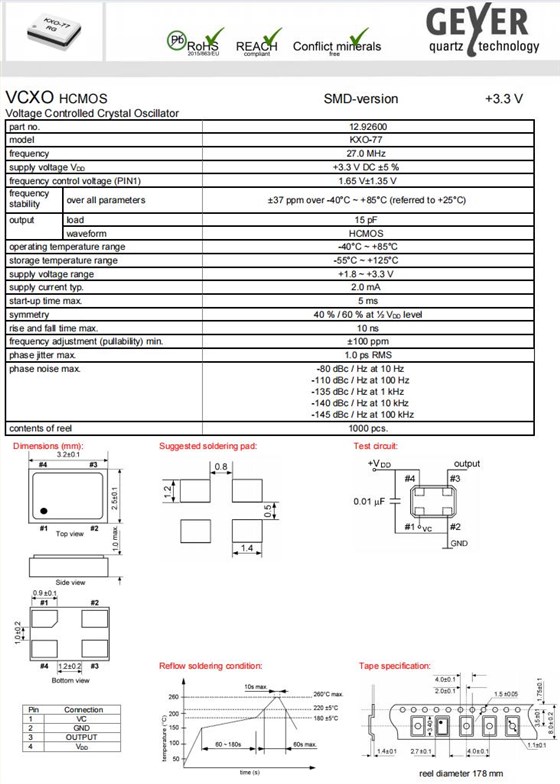

KXO-77规格

贴片晶振 品牌 描述 系列 频率 Type
12.95582 Geyer晶振 XTAL OSC XO 14.7456MHZ SMD KXO-V95 14.7456 MHz XO (Standard)
12.95549 Geyer晶振 XTAL OSC XO 32.0000MHZ SMD KXO-V95T 32 MHz XO (Standard)
12.95531 Geyer晶振 XTAL OSC XO 3.6864MHZ SMD KXO-V95T 3.6864 MHz XO (Standard)
12.90328 Geyer晶振 XTAL OSC XO 16.0000MHZ CMOS SMD KXO-V94T 16 MHz XO (Standard)
12.90321 Geyer晶振 XTAL OSC XO 14.7456MHZ HCMOS SMD KXO-V94 14.7456 MHz XO (Standard)
12.95545 Geyer晶振 XTAL OSC XO 20.0000MHZ SMD KXO-V95T 20 MHz XO (Standard)
12.95103 Geyer晶振 XTAL OSC XO 32.0000MHZ SMD KXO-V96T 32 MHz XO (Standard)
12.9558 Geyer晶振 XTAL OSC XO 3.579545MHZ SMD KXO-V95 3.579545 MHz XO (Standard)
12.95094 Geyer晶振 XTAL OSC XO 14.31818MHZ SMD KXO-V96T 14.31818 MHz XO (Standard)
12.95034 Geyer晶振 XTAL OSC XO 20.0000MHZ SMD KXO-V96T 20 MHz XO (Standard)
12.95542 Geyer晶振 XTAL OSC XO 12.0000MHZ SMD KXO-V95T 12 MHz XO (Standard)
12.94474 Geyer晶振 XTAL OSC XO 27.0000MHZ SMD KXO-V97T 27 MHz XO (Standard)
12.90343 Geyer晶振 XTAL OSC XO 12.0000MHZ SMD KXO-V94T 12 MHz XO (Standard)
12.90325 Geyer晶振 XTAL OSC XO 3.6864MHZ HCMOS SMD KXO-V94 3.6864 MHz XO (Standard)
12.90311 Geyer晶振 XTAL OSC XO 14.7456MHZ HCMOS SMD KXO-V94 14.7456 MHz XO (Standard)
12.95128 Geyer晶振 XTAL OSC XO 27.0000MHZ SMD KXO-V96E 27 MHz XO (Standard)
12.95102 Geyer晶振 XTAL OSC XO 80.0000MHZ SMD KXO-V96T 80 MHz XO (Standard)
12.90333 Geyer晶振 XTAL OSC XO 40.0000MHZ SMD KXO-V94T 40 MHz XO (Standard)
12.90337 石英晶体 XTAL OSC XO 26.0000MHZ SMD KXO-V94T 26 MHz XO (Standard)
12.94273 Geyer晶振 XTAL OSC XO 32.0000MHZ SMD KXO-V97T 32 MHz XO (Standard)
12.94365 Geyer晶振 XTAL OSC XO 14.31818MHZ SMD KXO-V97T 14.31818 MHz XO (Standard)
12.95546 Geyer晶振 XTAL OSC XO 26.0000MHZ SMD KXO-V95T 26 MHz XO (Standard)
12.92106 Geyer晶振 XTAL OSC XO 65.0000MHZ SMD KXO-V97T 65 MHz XO (Standard)
12.95571 Geyer晶振 XTAL OSC XO 32.7680KHZ SMD KXO-V95T 32.768 kHz XO (Standard)
12.90344 Geyer晶振 XTAL OSC XO 4.0000MHZ SMD KXO-V94T 4 MHz XO (Standard)
12.95538 Geyer晶振 XTAL OSC XO 27.1200MHZ SMD KXO-V95 27.12 MHz XO (Standard)
12.94364 Geyer晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V97T 48 MHz XO (Standard)
12.95568 Geyer晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V95F 48 MHz XO (Standard)
12.90324 Geyer晶振 XTAL OSC XO 27.0000MHZ HCMOS SMD KXO-V94 27 MHz XO (Standard)
12.94609 Geyer晶振 XTAL OSC XO 1.0000MHZ SMD KXO-V99 1 MHz XO (Standard)
12.95101 Geyer晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V96T 48 MHz XO (Standard)
12.92146 Geyer晶振 XTAL OSC XO 22.1184MHZ SMD KXO-V97T 22.1184 MHz XO (Standard)
12.90327 Geyer晶振 XTAL OSC XO 48.0000MHZ HCMOS SMD KXO-V94T 48 MHz XO (Standard)
12.95091 Geyer晶振 XTAL OSC XO 10.0000MHZ SMD KXO-V96T 10 MHz XO (Standard)
12.94449 Geyer晶振 XTAL OSC XO 18.4320MHZ SMD KXO-V97T 18.432 MHz XO (Standard)
12.94456 Geyer晶振 XTAL OSC XO 3.6864MHZ SMD KXO-V97T 3.6864 MHz XO (Standard)
12.95551 Geyer晶振 XTAL OSC XO 48.0000MHZ SMD KXO-V95T 48 MHz XO (Standard)
12.90322 Geyer晶振 XTAL OSC XO 20.0000MHZ CMOS SMD KXO-V94T 20 MHz XO (Standard)
12.95524 Geyer晶振 XTAL OSC XO 25.0000MHZ SMD KXO-V95E 25 MHz XO (Standard)
12.9034 Geyer晶振 XTAL OSC XO 32.7680KHZ SMD KXO-V94T 32.768 kHz XO (Standard)
12.95543 Geyer晶振 XTAL OSC XO 14.31818MHZ SMD KXO-V95T 14.31818 MHz XO (Standard)
12.95104 Geyer晶振 XTAL OSC XO 32.7680KHZ SMD KXO-V96-18 32.768 kHz XO (Standard)
12.94422 Geyer晶振 XTAL OSC XO 11.0592MHZ SMD KXO-V97T 11.0592 MHz XO (Standard)
12.95548 Geyer晶振 XTAL OSC XO 4.0000MHZ SMD KXO-V95T 4 MHz XO (Standard)
12.90307 Geyer晶振 XTAL OSC XO 1.8432MHZ HCMOS SMD KXO-V94 1.8432 MHz XO (Standard)
