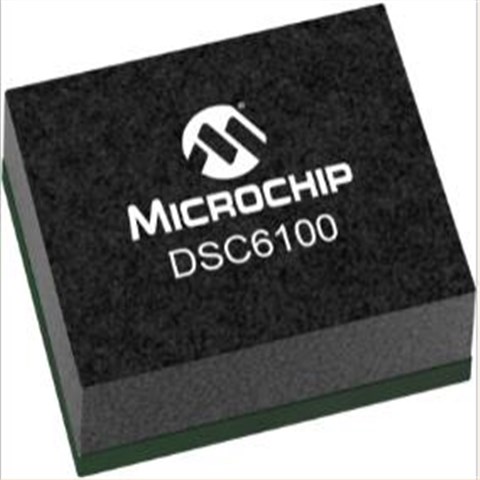

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振

产品简介

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振,美国Microchip晶振,DSC61XX有源晶振,DSC6101CI2A-100.0000T晶振,3225贴片晶振,石英晶体振荡器,小体积晶振,频率100MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,低抖动晶振,低功耗晶振,6G基站晶振,物联网设备晶振,可穿戴设备晶振,监控摄像机晶振,汽车全景摄像机应用晶振,工业自动化晶振.



产品详情

1DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振,美国Microchip晶振,DSC61XX有源晶振,DSC6101CI2A-100.0000T晶振,3225贴片晶振,石英晶体振荡器,小体积晶振,频率100MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,低抖动晶振,低功耗晶振,6G基站晶振,物联网设备晶振,可穿戴设备晶振,监控摄像机晶振,汽车全景摄像机应用晶振,工业自动化晶振.

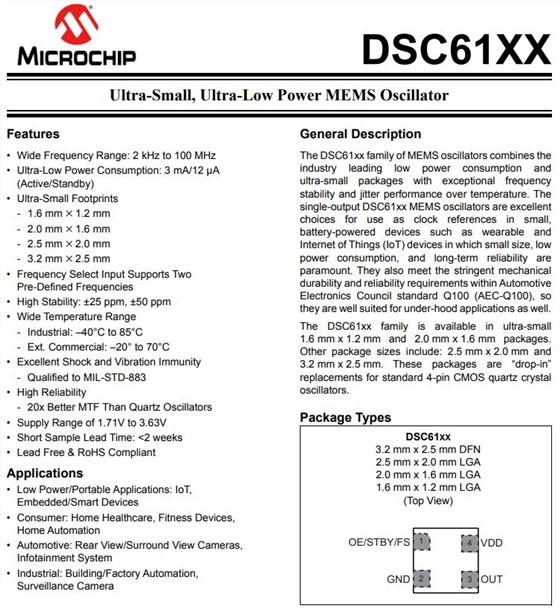

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振特点：

•宽频率范围:2 kHz至100 MHz

•超低功耗:3mA/12µA(备份)

•超小足迹

- 1.6 mm×1.2 mm

- 2.0 mm×1.6 mm

- 2.5 mm×2.0 mm

- 3.2 mm×2.5 mm

•频率选择输入支持两种预定义的频率

•高稳定性:±25 ppm，±50 ppm

•宽温度范围

-工业:- 40℃~ 85℃

-外商用:- 20°至70°C

•卓越的抗冲击和抗振动能力

-符合MIL-STD-883标准

•高可靠性

- MTF比石英振荡器好20倍

•电源范围1.71V至3.63V

•样品交货时间短:<2周

•无铅和符合RoHS标准

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振参数图

项目 规格说明 条件
额定频率 100MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+150℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±25ppm 所有温度范围
老化 ±5ppm
 1 year @ +25°C
电流 3.0mATyp FOUT = 27 MHz, VDD = 1.8V, No Load
占空比 45%~55%
输出逻辑电平低（Vol）

0.2 x VDDV Max

I=±3mA
输出逻辑电平高（Voh） 0.8 x VDDVMin
起始时间 1.3ms Max From 90% VDD to valid clock output, T = +25° C
输出上升下降时间 2.2ns Max DSC61x1 Std. Drive, 20% to 80% CL = 10 pF
Cycle-to-Cycle抖动(峰值) 60ps Max FOUT = 27 MHz
周期抖动
 9ps FOUT = 27 MHzRMS

3

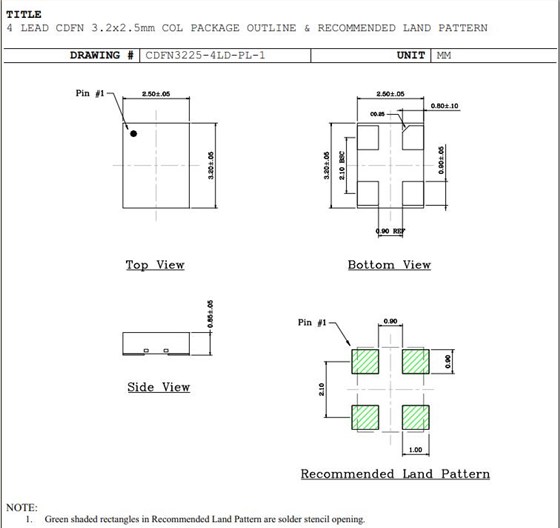

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振尺寸图

DSC6100-3225

原厂代码 晶振品牌 型号 类型 频率 电压 尺寸
DSC1123CI2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CE1-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI5-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 MEMS (Silicon) 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-018.4320 Microchip Technology DSC1001 MEMS (Silicon) 18.432MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CE1-125.0000 Microchip Technology DSC1122 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6003CI1A-033.0000 Microchip Technology DSC60XX MEMS (Silicon) 33MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6111CI1A-008.0000 Microchip Technology DSC6100 MEMS (Silicon) 8MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-032K800 Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-307K000 Microchip Technology DSC60XX MEMS (Silicon) 307kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-004.0000 Microchip Technology DSC60XX MEMS (Silicon) 4MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-032.0000 Microchip Technology DSC60XX MEMS (Silicon) 32MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-250K000 Microchip Technology DSC60XX MEMS (Silicon) 250kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-002K000 Microchip Technology DSC60XX MEMS (Silicon) 2kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CC1-047.3333 Microchip Technology DSC1001 MEMS (Silicon) 47.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-048.0000 Microchip Technology DSC1033 MEMS (Silicon) 48MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-024.0000 Microchip Technology DSC1033 MEMS (Silicon) 24MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-050.0000 Microchip Technology DSC1033 MEMS (Silicon) 50MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI1A-011.0592 Microchip Technology DSC60XX MEMS (Silicon) 11.0592MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI5-033.3333 Microchip Technology DSC1001 MEMS (Silicon) 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000 Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM2-040.0000 Microchip Technology DSC1121 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CL5-100.0000 Microchip Technology DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CE1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-333.3333 Microchip Technology DSC1123 MEMS (Silicon) 333.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-020.0000 Microchip Technology DSC1123 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-027.0000 Microchip Technology DSC1123 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-333.3300 Microchip Technology DSC1123 MEMS (Silicon) 333.33MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI5-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CL5-014.7456 Microchip Technology DSC1101 MEMS (Silicon) 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI2-156.2500 Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-125.0000 Microchip Technology DSC1104 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-212.5000 Microchip Technology DSC1123 MEMS (Silicon) 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI2-103.1250 Microchip Technology DSC1122 MEMS (Silicon) 103.125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-122.8800 Microchip Technology DSC1123 MEMS (Silicon) 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI1-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-075.0000 Microchip Technology DSC1101 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-033.3333 Microchip Technology DSC1101 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-005.0000 Microchip Technology DSC1101 MEMS (Silicon) 5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CE5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 MEMS (Silicon) 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6111CI1A-016.0000 Microchip Technology DSC6100 MEMS (Silicon) 16MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CL2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-033.3300 Microchip Technology DSC1001 MEMS (Silicon) 33.33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CE2-006.0000 Microchip Technology DSC1001 MEMS (Silicon) 6MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-033.3333 Microchip Technology DSC1001 MEMS (Silicon) 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI5-004.9152 Microchip Technology DSC1001 MEMS (Silicon) 4.9152MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI5-200.0000 Microchip Technology DSC1122 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-048.0000 Microchip Technology DSC1001 MEMS (Silicon) 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-026.0000 Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-032K768 Microchip Technology DSC60XX MEMS (Silicon) 32.768kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-016.0000 Microchip Technology DSC60XX MEMS (Silicon) 16MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6003CI2A-012.0000 Microchip Technology DSC60XX MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6003CI2A-024.0000 Microchip Technology DSC60XX MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6003CI2A-016.0000 Microchip Technology DSC60XX MEMS (Silicon) 16MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6101CI2A-027.0000 Microchip Technology DSC6100 MEMS (Silicon) 27MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6111CI2A-012.0000 Microchip Technology DSC6100 MEMS (Silicon) 12MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6102CI2A-100.0000 Microchip Technology DSC6100 MEMS (Silicon) 100MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6101CI2A-050.0000 Microchip Technology DSC6100 MEMS (Silicon) 50MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6101CI2A-025.0000 Microchip Technology DSC6100 MEMS (Silicon) 25MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-050.0000 Microchip Technology DSC1121 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-025.0000 Microchip Technology DSC1121 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121BI2-025.0007 Microchip Technology DSC1121 MEMS (Silicon) 25.0007MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI1-025.0000 Microchip Technology DSC1101 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CC1-008.0000 Microchip Technology DSC1001 MEMS (Silicon) 8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CE1-066.6666 Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CE1-019.2000 Microchip Technology DSC1001 MEMS (Silicon) 19.2MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CE2-022.5792 Microchip Technology DSC1033 MEMS (Silicon) 22.5792MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CE2-074.2500 Microchip Technology DSC1033 MEMS (Silicon) 74.25MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-008.1920 Microchip Technology DSC1033 MEMS (Silicon) 8.192MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-025.0000 Microchip Technology DSC1001 MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-001.0000 Microchip Technology DSC1033 MEMS (Silicon) 1MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-003.6864 Microchip Technology DSC1001 MEMS (Silicon) 3.6864MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-001.9521 Microchip Technology DSC1001 MEMS (Silicon) 1.9521MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-010.4857 Microchip Technology DSC1001 MEMS (Silicon) 10.4857MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-008.1920 Microchip Technology DSC1001 MEMS (Silicon) 8.192MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-049.1520 Microchip Technology DSC1001 MEMS (Silicon) 49.152MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-025.0000 Microchip Technology DSC1001 MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CE2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-001.9512 Microchip Technology DSC1001 MEMS (Silicon) 1.9512MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6100

DSC6100-2
