Abracon晶振,AB38T-32.768KHZ-B-1,圆柱插件晶振,6G通信晶振,Abracon进口晶振,AB38T无源晶振,AB38T-32.768KHZ-B-1,圆柱插件晶振,石英晶体谐振器,32.768KHz晶振,负载12.5pF,频率偏差20ppm,工作温度-20~70°C,低老化晶振,高品质晶振,6G通信晶振,实时时钟晶振,测试测量仪器晶振,A/V设备晶振.
Abracon晶振,AB38T-32.768KHZ-B-1,圆柱插件晶振,6G通信晶振特点:
•高精度可用性
•电阻焊接
•商用级32.768kHz晶体

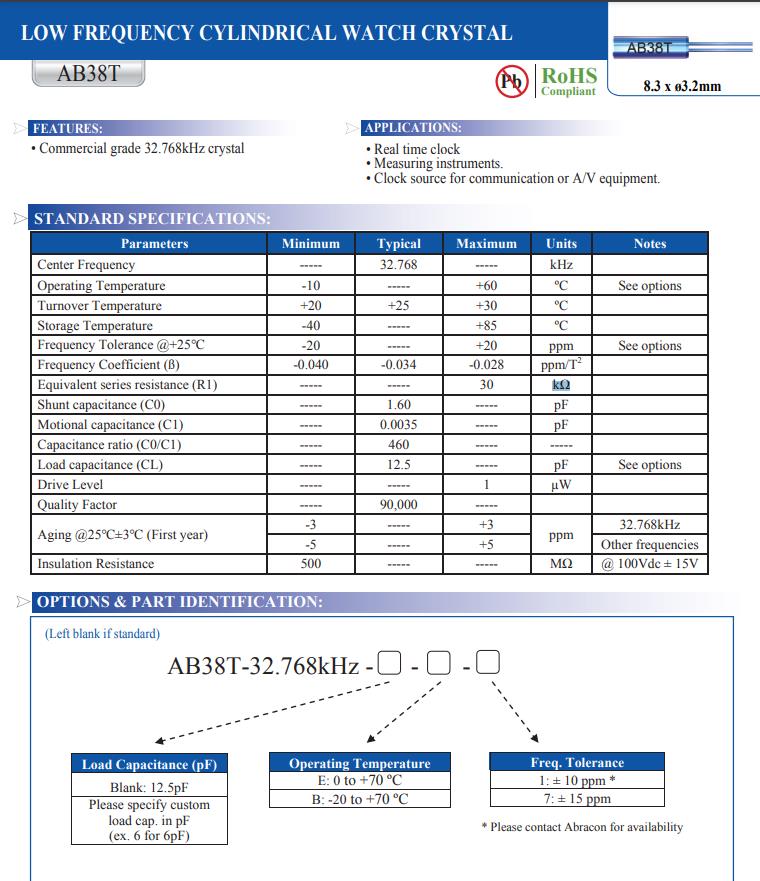

Abracon晶振,AB38T-32.768KHZ-B-1,圆柱插件晶振,6G通信晶振参数图
频率系数(B)
规格参数
MAX (除非有特殊说明)
频率
32.768KHz
操作模式
3rd Overtone
工作温度
-20°C to +70°C
保存温度
-40°C to +85°C
频率公差 @+25°C
± 20PPM
-0.028ppm/T2
等效串联电阻(R1)
30KΩ
并联电容 (C0)
1.60pF
负载电容 (CL)
12.5 pF
激励功率
1 μW Max
老化性
±3ppm
绝缘电阻
500M Ω @100Vdc±15V

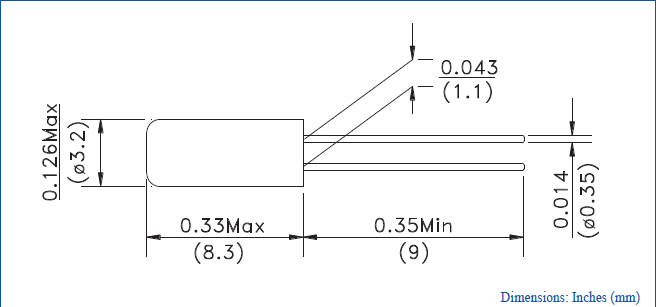

Abracon晶振,AB38T-32.768KHZ-B-1,圆柱插件晶振,6G通信晶振尺寸图
原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | 工作温度 |
AB38T-32.768KHZ | Abracon晶振 | AB38T | 32.768kHz | ±20ppm | 12.5pF | -10°C ~ 60°C |
AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
AB26T-32.768KHZ | Abracon晶振 | AB26T | 32.768kHz | ±20ppm | 12.5pF | -10°C ~ 60°C |
AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
AB15T-32.768KHZ | Abracon晶振 | AB15T | 32.768kHz | ±20ppm | 12.5pF | -20°C ~ 70°C |
AB308-4.000MHZ | Abracon晶振 | AB308 | 4MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-12.288MHZ | Abracon晶振 | AB308 | 12.288MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-12.352MHZ | Abracon晶振 | AB308 | 12.352MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-14.31818MHZ | Abracon晶振 | AB308 | 14.31818MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-14.7456MHZ | Abracon晶振 | AB308 | 14.7456MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-16.257MHZ | Abracon晶振 | AB308 | 16.257MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-16.667MHZ | Abracon晶振 | AB308 | 16.667MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-4.9152MHZ | Abracon晶振 | AB308 | 4.9152MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-28.000MHZ | Abracon晶振 | AB308 | 28MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-28.6363MHZ | Abracon晶振 | AB308 | 28.6363MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-29.4912MHZ | Abracon晶振 | AB308 | 29.4912MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-53.125MHZ | Abracon晶振 | AB308 | 53.125MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±30ppm | 16pF | -10°C ~ 60°C |
AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±30ppm | 16pF | -10°C ~ 60°C |
