SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振
频率：38.4MHz
尺寸：1.6×1.2mm
SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振,欧美进口晶振,SUNTSU晶振,SXT114无源晶振,SXT11410AA07-38.400M晶振,1612mm贴片晶振,石英晶体谐振器,频率38.4MHz,负载10pF,频率偏差50ppm,工作温度0~70°C,高稳定性晶振,低老化晶振,6G相关设备晶振,通讯设备晶振,无线局域网晶振,高密度应用晶振.
订购热线：0755-27838351
SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振,欧美进口晶振,SUNTSU晶振,SXT114无源晶振,SXT11410AA07-38.400M晶振,1612mm贴片晶振,石英晶体谐振器,频率38.4MHz,负载10pF,频率偏差50ppm,工作温度0~70°C,高稳定性晶振,低老化晶振,6G相关设备晶振,通讯设备晶振,无线局域网晶振,高密度应用晶振.
SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振特点：
•±10 ppm /±10 ppm(公差/稳定)可用
•超小型封装
•AT-Cut基本原理
•磁带和卷轴

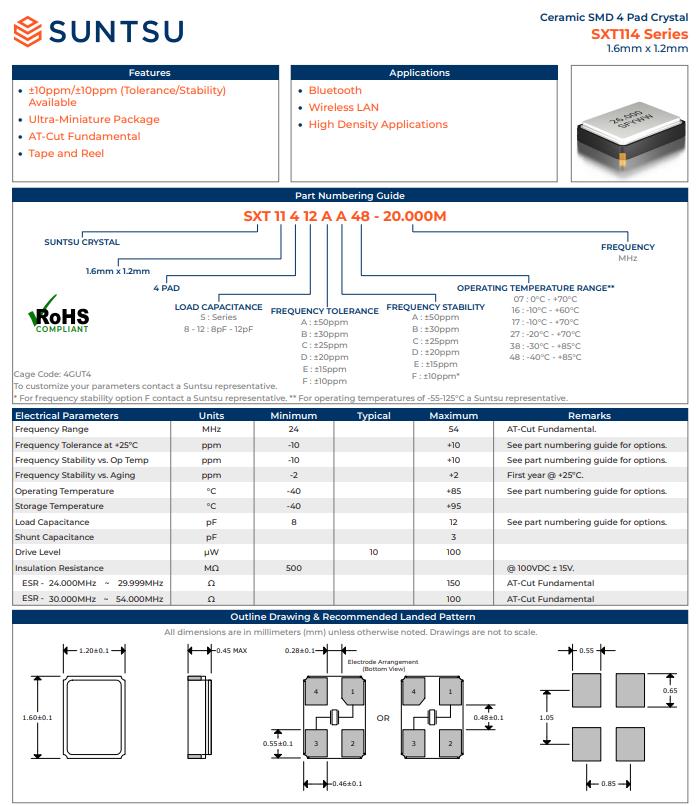

SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振参数图
项目
符号
数值
频率
f0
38.4MHz
频率公差
△ f/f0
±50ppm
温度稳定性
TC
±50ppm
并联电容
CO
3pF Max
负载电容
CL
10pF
工作温度
TOPR
0℃～＋70℃
保存温度
TSTR
－40℃～＋95℃
串联阻力
R1
100Ω Max
驱动级别
DL
100μW Max
老化（第一年）
△ f/f0
±2ppm Max.

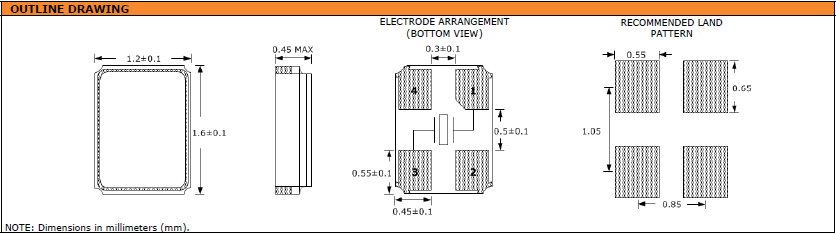

SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振尺寸图
| SUNTSU晶振编码 | 尺寸 | 负载 | 频率公差 | 频率稳定度 | 工作温度 | 频率 |
| SXT11410AA07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT11410AA07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT11410AA07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT11410AA07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT11410AA07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT11410AA07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT11410AA07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT11410AA07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT11410AA07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT11410AA16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT11410AA16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT11410AA16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT11410AA16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT11410AA16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT11410AA16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT11410AA16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT11410AA16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT11410AA16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT11410AA17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT11410AA17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT11410AA17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT11410AA17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT11410AA17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT11410AA17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT11410AA17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT11410AA17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT11410AA17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT11410AA27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT11410AA27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT11410AA27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT11410AA27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT11410AA27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 27.120M |
| SXT11410AA27-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 30.000M |
| SXT11410AA27-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 32.000M |
| SXT11410AA27-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 38.400M |
| SXT11410AA27-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 40.000M |
| SXT11410AA38-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 24.000M |
| SXT11410AA38-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT11410AA38-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT11410AA38-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT11410AA38-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT11410AA38-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT11410AA38-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT11410AA38-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT11410AA38-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT11410AA48-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT11410AA48-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT11410AA48-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT11410AA48-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT11410AA48-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT11410AA48-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT11410AA48-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT11410AA48-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT11410AA48-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT11410BA07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT11410BA07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT11410BA07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT11410BA07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT11410BA07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT11410BA07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT11410BA07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT11410BA07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT11410BA07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT11410BA16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT11410BA16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT11410BA16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT11410BA16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT11410BA16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT11410BA16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT11410BA16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT11410BA16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT11410BA16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT11410BA17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT11410BA17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT11410BA17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT11410BA17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT11410BA17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT11410BA17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT11410BA17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT11410BA17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT11410BA17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT11410BA27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT11410BA27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT11410BA27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT11410BA27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT11410BA27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 27.120M |
| SXT11410BA27-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 30.000M |
| SXT11410BA27-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 32.000M |
| SXT11410BA27-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 38.400M |
| SXT11410BA27-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 40.000M |
| SXT11410BA38-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 24.000M |
| SXT11410BA38-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT11410BA38-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT11410BA38-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT11410BA38-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT11410BA38-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT11410BA38-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT11410BA38-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT11410BA38-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT11410BA48-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT11410BA48-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT11410BA48-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT11410BA48-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT11410BA48-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT11410BA48-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT11410BA48-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT11410BA48-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT11410BA48-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT11410BB07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 24.000M |
| SXT11410BB07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 25.000M |
| SXT11410BB07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 26.000M |
| SXT11410BB07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 27.000M |
| SXT11410BB07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 27.120M |
| SXT11410BB07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 30.000M |
| SXT11410BB07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 32.000M |
| SXT11410BB07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 38.400M |
| SXT11410BB07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | 0°C - +70°C | 40.000M |
| SXT11410BB16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 24.000M |
| SXT11410BB16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 25.000M |
| SXT11410BB16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 26.000M |
| SXT11410BB16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 27.000M |
| SXT11410BB16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 27.120M |
| SXT11410BB16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 30.000M |
| SXT11410BB16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 32.000M |
| SXT11410BB16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 38.400M |
| SXT11410BB16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +60°C | 40.000M |
| SXT11410BB17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 24.000M |
| SXT11410BB17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 25.000M |
| SXT11410BB17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 26.000M |
| SXT11410BB17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 27.000M |
| SXT11410BB17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 27.120M |
| SXT11410BB17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 30.000M |
| SXT11410BB17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 32.000M |
| SXT11410BB17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 38.400M |
| SXT11410BB17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 40.000M |
| SXT11410BB27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -20°C - +70°C | 24.000M |
| SXT11410BB27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -20°C - +70°C | 25.000M |
| SXT11410BB27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -20°C - +70°C | 26.000M |
| SXT11410BB27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -20°C - +70°C | 27.000M |
| SXT11410BB27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -20°C - +70°C | 27.120M |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905
采购：SUNTSU晶振,1612mm晶振,SXT11410AA07-38.400M,6G相关设备晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- 253进口49SMD晶振,奥斯康利环保晶体,253-7.3728M-SR-S-TR行车电脑晶振
- 253进口49SMD晶振,奥斯康利环保晶体,253-7.3728M-SR-S-TR行车电脑晶振，美国Oscilent晶振公司，奥斯康利晶振，253晶振，253-7.3728M-SR-S-TR晶振，贴片晶振，无源晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，汽车晶振，小型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，无人机晶振，6G无线网晶振，高精度晶振，局域网晶振，小体积晶振，低损耗晶振，北斗卫星定位模块晶振，成本效益，低配置，节省空间的设计，磁带和卷轴，符合RoHs/无铅标准。
- Oscilent小体积晶振,278-20.0M-20-W-TR高精度晶振,278汽车收音机晶振
- Oscilent小体积晶振,278-20.0M-20-W-TR高精度晶振,278汽车收音机晶振，美国Oscilent晶振公司，奥斯康利晶振，3225晶振，276晶振，278-20.0M-20-W-TR晶振，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振，紧凑和薄(0.65mm型材)，耐热和耐冲击，适用于包括电信设备，短距离无线电链路模块，DVC, DSC, PDA和PC，符合RoHs/无铅标准。
- Oscilent环保无铅晶振,278小体积晶振,278-24.545454M-12-W-TR智能手表晶振
- Oscilent环保无铅晶振,278小体积晶振,278-24.545454M-12-W-TR智能手表晶振，美国Oscilent晶振公司，奥斯康利晶振，3225晶振，276晶振，278-24.545454M-12-W-TR晶振，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，紧凑和薄(0.65mm型材)，耐热和耐冲击，适用于包括电信设备，短距离无线电链路模块，DVC, DSC, PDA和PC，符合RoHs/无铅标准，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振 。
康华尔产品中心
Product Center
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
