SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振

频率：20MHz

尺寸：2.5×2.0mm

SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振,SUNTSU晶振,SXT224无源晶振,SXT22416DD48-20.000M晶振,2520石英晶振,进口贴片晶振,频率20MHz,负载16pF,频率偏差20ppm,工作温度-40~85°C,无铅环保晶振,高品质晶振,6G无线应用晶振,PCMCIA晶振,电脑和调制解调器晶振,高密度应用晶振.

订购热线：0755-27838351

SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振,SUNTSU晶振,SXT224无源晶振,SXT22416DD48-20.000M晶振,2520石英晶振,进口贴片晶振,频率20MHz,负载16pF,频率偏差20ppm,工作温度-40~85°C,无铅环保晶振,高品质晶振,6G无线应用晶振,PCMCIA晶振,电脑和调制解调器晶振,高密度应用晶振.

SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振特点：

•±10 ppm /±10 ppm(公差/稳定)可用

•超小型封装

•AT-Cut基本原理

•磁带和卷轴

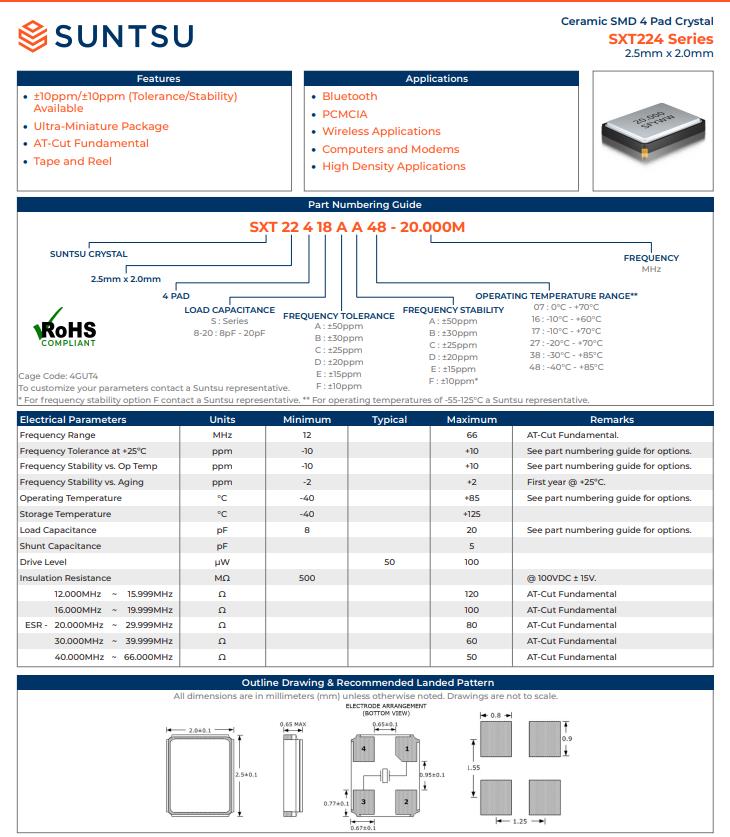

SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振参数图

项目	符号	数值
频率	f0	20MHz
频率公差	△ f/f0	±20ppm
温度稳定性	TC	±20ppm
并联电容	CO	5pF Max
负载电容	CL	16pF
工作温度	TOPR	-40℃～＋85℃
保存温度	TSTR	－40℃～＋125℃
串联阻力	R1	80Ω Max
驱动级别	DL	100μW Max
老化（第一年）	△ f/f0	±2ppm Max.

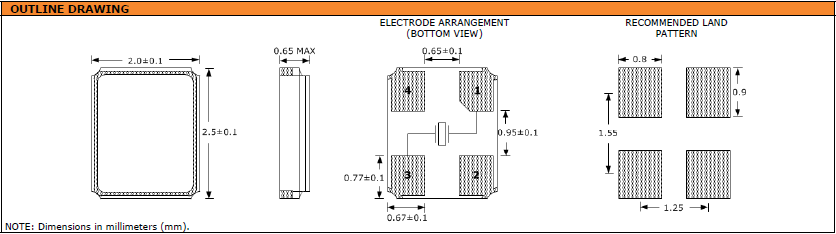

SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振振尺寸图

SUNTSU晶振编码	尺寸	负载	频率公差	频率稳定度	工作温度	频率
SXT22410AA07-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	12.000M
SXT22410AA07-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	12.288M
SXT22410AA07-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	13.000M
SXT22410AA07-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	13.560M
SXT22410AA07-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	14.31818M
SXT22410AA07-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	14.7456M
SXT22410AA07-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	16.000M
SXT22410AA07-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	16.384M
SXT22410AA07-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	18.432M
SXT22410AA07-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	19.200M
SXT22410AA07-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	20.000M
SXT22410AA07-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	22.1184M
SXT22410AA07-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	24.000M
SXT22410AA07-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	24.576M
SXT22410AA07-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	25.000M
SXT22410AA07-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	26.000M
SXT22410AA07-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	27.000M
SXT22410AA07-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	27.120M
SXT22410AA07-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	30.000M
SXT22410AA07-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	32.000M
SXT22410AA07-37.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	37.400M
SXT22410AA07-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	38.400M
SXT22410AA07-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	40.000M
SXT22410AA07-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	48.000M
SXT22410AA07-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	50.000M
SXT22410AA16-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	12.000M
SXT22410AA16-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	12.288M
SXT22410AA16-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	13.000M
SXT22410AA16-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	13.560M
SXT22410AA16-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	14.31818M
SXT22410AA16-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	14.7456M
SXT22410AA16-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	16.000M
SXT22410AA16-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	16.384M
SXT22410AA16-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	18.432M
SXT22410AA16-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	19.200M
SXT22410AA16-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	20.000M
SXT22410AA16-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	22.1184M
SXT22410AA16-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	24.000M
SXT22410AA16-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	24.576M
SXT22410AA16-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	25.000M
SXT22410AA16-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	26.000M
SXT22410AA16-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	27.000M
SXT22410AA16-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	27.120M
SXT22410AA16-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	30.000M
SXT22410AA16-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	32.000M
SXT22410AA16-37.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	37.400M
SXT22410AA16-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	38.400M
SXT22410AA16-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	40.000M
SXT22410AA16-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	48.000M
SXT22410AA16-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +60℃	50.000M
SXT22410AA17-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	12.000M
SXT22410AA17-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	12.288M
SXT22410AA17-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	13.000M
SXT22410AA17-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	13.560M
SXT22410AA17-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	14.31818M
SXT22410AA17-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	14.7456M
SXT22410AA17-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	16.000M
SXT22410AA17-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	16.384M
SXT22410AA17-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	18.432M
SXT22410AA17-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	19.200M
SXT22410AA17-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	20.000M
SXT22410AA17-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	22.1184M
SXT22410AA17-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	24.000M
SXT22410AA17-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	24.576M
SXT22410AA17-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	25.000M
SXT22410AA17-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	26.000M
SXT22410AA17-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	27.000M
SXT22410AA17-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	27.120M
SXT22410AA17-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	30.000M
SXT22410AA17-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	32.000M
SXT22410AA17-37.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	37.400M
SXT22410AA17-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	38.400M
SXT22410AA17-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	40.000M
SXT22410AA17-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	48.000M
SXT22410AA17-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10℃ - +70℃	50.000M
SXT22410AA27-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	12.000M
SXT22410AA27-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	12.288M
SXT22410AA27-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	13.000M
SXT22410AA27-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	13.560M
SXT22410AA27-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	14.31818M
SXT22410AA27-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	14.7456M
SXT22410AA27-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	16.000M
SXT22410AA27-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	16.384M
SXT22410AA27-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	18.432M
SXT22410AA27-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	19.200M
SXT22410AA27-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	20.000M
SXT22410AA27-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	22.1184M
SXT22410AA27-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	24.000M
SXT22410AA27-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	24.576M
SXT22410AA27-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	25.000M
SXT22410AA27-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	26.000M
SXT22410AA27-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	27.000M
SXT22410AA27-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	27.120M
SXT22410AA27-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	30.000M
SXT22410AA27-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	32.000M
SXT22410AA27-37.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	37.400M
SXT22410AA27-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	38.400M
SXT22410AA27-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	40.000M
SXT22410AA27-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	48.000M
SXT22410AA27-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20℃ - +70℃	50.000M
SXT22410AA38-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	12.000M
SXT22410AA38-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	12.288M
SXT22410AA38-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	13.000M
SXT22410AA38-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	13.560M
SXT22410AA38-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	14.31818M
SXT22410AA38-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	14.7456M
SXT22410AA38-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	16.000M
SXT22410AA38-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	16.384M
SXT22410AA38-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	18.432M
SXT22410AA38-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	19.200M
SXT22410AA38-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	20.000M
SXT22410AA38-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	22.1184M
SXT22410AA38-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	24.000M
SXT22410AA38-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	24.576M
SXT22410AA38-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	25.000M
SXT22410AA38-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	26.000M
SXT22410AA38-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	27.000M
SXT22410AA38-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	27.120M
SXT22410AA38-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	30.000M
SXT22410AA38-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	32.000M
SXT22410AA38-37.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	37.400M
SXT22410AA38-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	38.400M
SXT22410AA38-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	40.000M
SXT22410AA38-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	48.000M
SXT22410AA38-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30℃ - +85℃	50.000M
SXT22410AA48-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	12.000M
SXT22410AA48-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	12.288M
SXT22410AA48-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	13.000M
SXT22410AA48-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	13.560M
SXT22410AA48-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	14.31818M
SXT22410AA48-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	14.7456M
SXT22410AA48-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	16.000M
SXT22410AA48-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	16.384M
SXT22410AA48-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	18.432M
SXT22410AA48-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	19.200M
SXT22410AA48-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	20.000M
SXT22410AA48-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	22.1184M
SXT22410AA48-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	24.000M
SXT22410AA48-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40℃ - +85℃	24.576M
SXT22410AA48-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	25.000M
SXT22410AA48-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	26.000M
SXT22410AA48-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	27.000M
SXT22410AA48-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	27.120M
SXT22410AA48-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	30.000M
SXT22410AA48-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	32.000M
SXT22410AA48-37.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	37.400M
SXT22410AA48-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	38.400M
SXT22410AA48-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	40.000M
SXT22410AA48-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	48.000M
SXT22410AA48-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	50.000M
SXT22410BA07-12.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	12.000M
SXT22410BA07-12.288M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	12.288M
SXT22410BA07-13.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	13.000M
SXT22410BA07-13.560M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	13.560M
SXT22410BA07-14.31818M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	14.31818M
SXT22410BA07-14.7456M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	14.7456M
SXT22410BA07-16.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	16.000M
SXT22410BA07-16.384M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	16.384M
SXT22410BA07-18.432M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	18.432M
SXT22410BA07-19.200M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	19.200M
SXT22410BA07-20.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	20.000M
SXT22410BA07-22.1184M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	22.1184M
SXT22410BA07-24.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	24.000M
SXT22410BA07-24.576M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	24.576M
SXT22410BA07-25.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	25.000M
SXT22410BA07-26.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	26.000M
SXT22410BA07-27.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	27.000M
SXT22410BA07-27.120M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	27.120M
SXT22410BA07-30.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	30.000M
SXT22410BA07-32.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	32.000M
SXT22410BA07-38.400M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	38.400M
SXT22410BA07-40.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	40.000M
SXT22410BA07-48.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	48.000M
SXT22410BA07-50.000M	2.5X2.0 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	50.000M

精工富士晶振-康华尔正规渠道指定供应商

服务热线：0755-27838351

手机联系：138-2330-0879

Q Q联系：632862232

邮箱：konuaer@163.com

地址：广东深圳市宝安区宝安大道东95号浙商大厦1905

SUNTSU晶振 2520mm晶振 SXT22416DD48-20.000M 6G无线应用晶振

采购：SUNTSU晶振,2520mm晶振,SXT22416DD48-20.000M,6G无线应用晶振

*联系人：
*手机：
公司名称：
邮箱：
电话：
地址：
*采购意向：
*验证码：

跟此产品相关的产品 / Related Products

: Oscilent小体积晶振,278-20.0M-20-W-TR高精度晶振,278汽车收音机晶振; Oscilent小体积晶振,278-20.0M-20-W-TR高精度晶振,278汽车收音机晶振，美国Oscilent晶振公司，奥斯康利晶振，3225晶振，276晶振，278-20.0M-20-W-TR晶振，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振，紧凑和薄(0.65mm型材)，耐热和耐冲击，适用于包括电信设备，短距离无线电链路模块，DVC, DSC, PDA和PC，符合RoHs/无铅标准。

: Oscilent进口晶振,276-36.0M-30-L-TR网络传输晶振,276无源5032晶振; Oscilent进口晶振,276-36.0M-30-L-TR网络传输晶振,276无源5032晶振，美国Oscilent晶振公司，奥斯康利晶振，5032晶振，276晶振，276-36.0M-30-L-TR晶振，超薄型晶振，低损耗晶振，石英晶振，欧美进口晶振，高品质晶振，北斗卫星定位模块晶振，无人机晶振，6G无线网晶振，高精度晶振，贴片晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振。特点，成本效益，低配置，节省空间的设计，磁带和卷轴，符合RoHs/无铅标准。

: Oscilent进口音叉晶体,223近地卫星晶振,223-000306-20-LF-TR高精度晶体; Oscilent进口音叉晶体,223近地卫星晶振,223-000306-20-LF-TR高精度晶体，美国Oscilent晶振公司，奥斯康利晶振，223系列晶振，223-000306-20-LF-TR晶振，欧美进口晶振，高品质晶振，贴片晶振，四脚晶振，陶瓷晶振，SMD晶振，无源晶振，高精度晶振，6G通讯设备晶振，无线传输晶振，局域网晶振，小体积晶振，低损耗晶振，北斗卫星晶振，无线网晶振，高精度晶振。特点:低轮廓，具有长期稳定性，行业标准面积，优异的抗震性，优异的环境特性，磁带和卷轴，符合RoHs /无铅标准。
