DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振
prevnext

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振

频率：94.55MHz

尺寸：2.5×2.0mm

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振,美国微芯进口晶振,DSC1124有源晶振,DSC1124DI2-094.5500T晶振,HCSL石英晶体振荡器,贴片差分晶振,超小型SMD晶振,尺寸2520mm,频率94.55MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,耐高温晶振,高可靠性晶振,6G以太网晶振,网络系统晶振,测试与测量设备晶振,显示端口晶振,服务器和存储系统晶振.



订购热线：0755-27838351
QQ咨询 点击这里给我发消息

1DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振,美国微芯进口晶振,DSC1124有源晶振,DSC1124DI2-094.5500T晶振,HCSL石英晶体振荡器,贴片差分晶振,超小型SMD晶振,尺寸2520mm,频率94.55MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,耐高温晶振,高可靠性晶振,6G以太网晶振,网络系统晶振,测试与测量设备晶振,显示端口晶振,服务器和存储系统晶振.

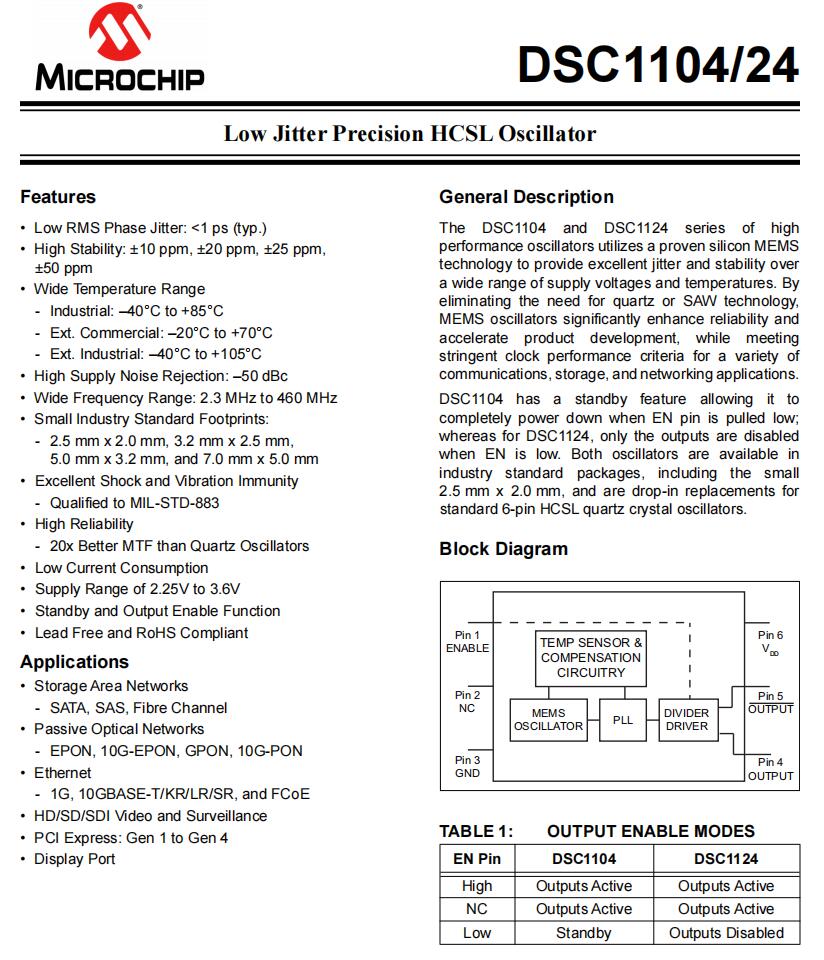

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振特点：

•频率范围:2.3mhz ~ 460mhz

•高稳定性-±10ppm，±20ppm，±25ppm，±50ppm

•工作温度范围

-Ext.工业- 40°C至105°C

-工业用- 40℃~ 85℃

-商用—20℃~ 70℃

•低工作和待机电流

- 6ma工作(1mhz)

- 15µA待机(最大)

•超微型足迹

- 2.5 mm × 2.0 mm × 0.85 mm

- 3.2 mm × 2.5 mm × 0.85 mm

- 5.0 mm × 3.2 mm × 0.85 mm

- 7.0 mm × 5.0 mm × 0.85 mm

•高电源噪声抑制:-50 dBc

•卓越的抗冲击和抗振动能力

-符合MIL-STD-883标准

•高可靠性

- MTF比石英振荡器好20倍

•低电流消耗

•电源范围2.25V至3.6V

•待机和输出使能功能

•无铅，符合RoHS标准

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振参数图

项目 规格说明 条件
额定频率 94.55MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+150℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm
 1 year @ +25°C
电流 42mA Max Output Enabled, RL = 50Ω
占空比 48%~52% Differential
输出逻辑电平低（Vol） 0.1V  Max
输出逻辑电平高（Voh） 0.725V Min RL = 50Ω
起始时间 5ms Max
集成相位噪声 0.25ps Typ 200 kHz to 20 MHz @ 156.25 MHz，RMS
周期抖动
 2.5ps RMS

3

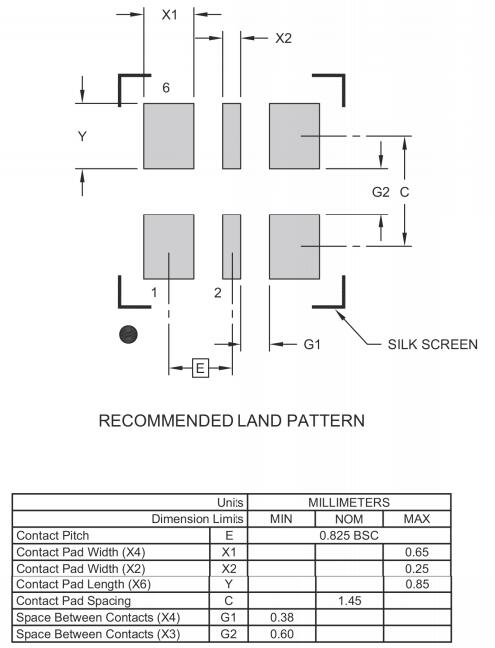

DSC1124DI2-094.5500T|2520mm晶体振荡器|6G以太网晶振 尺寸图

DSC1124-2
