Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振

当前位置：首页 » 欧美进口晶振 » AbraconCrystal » Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振

prevnext

Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振

频率：32.768KHz

尺寸：6.0 x 1.9mm

Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振,Abracon晶振,AB26TRB无源晶振,AB26TRB-32.768KHZ-T晶振,石英贴片晶振,32.768KHz晶振,负载12.5pF,频率偏差20ppm,工作温度-40~85°C,耐高温晶振,低成本晶振,6G移动无线电晶振,智能钟表晶振,无线应用晶振,蓝牙音响晶振.

订购热线：0755-27838351

Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振,Abracon晶振,AB26TRB无源晶振,AB26TRB-32.768KHZ-T晶振,石英贴片晶振,32.768KHz晶振,负载12.5pF,频率偏差20ppm,工作温度-40~85°C,耐高温晶振,低成本晶振,6G移动无线电晶振,智能钟表晶振,无线应用晶振,蓝牙音响晶振.

Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振特点：

•为低成本SMD型成型引线

•出色的抗震性

•回流功能

•消费者应用的低成本

•IR回流能力

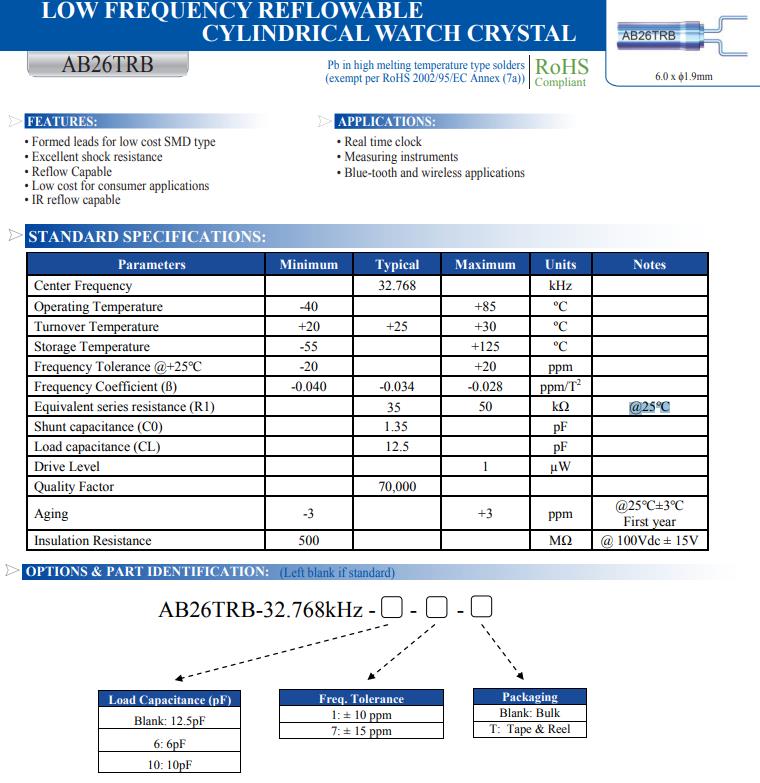

Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振参数图

规格参数			MAX (除非有特殊说明)
频率			32.768KHz
操作模式			3rd Overtone
工作温度			-40°C to +85°C
保存温度			-55°C to +125°C
频率公差 @+25°C			± 20PPM
频率系数(B)			-0.028ppm/T2
等效串联电阻(R1)			50KΩ
并联电容 (C0)			1.35pF
负载电容 (CL)			12.5 pF
激励功率			1 μW Max
老化性			±3ppm
绝缘电阻			500 Mohms min. at 100 Vdc ± 15V

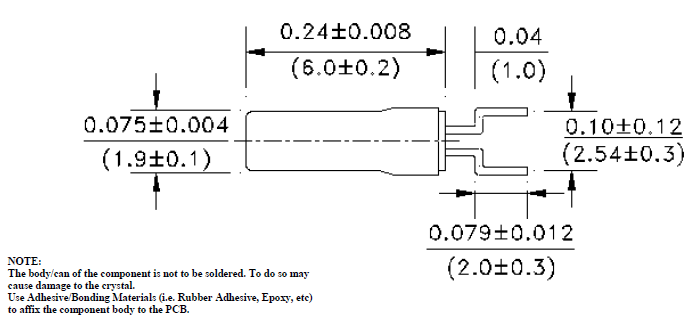

Abracon晶振,AB26TRB-32.768KHZ-T,6G移动无线电晶振尺寸图

原厂编码	生产厂家	型号	频率	频率偏差	负载电容	工作温度
AB38T-32.768KHZ	Abracon晶振	AB38T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26T-32.768KHZ	Abracon晶振	AB26T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB15T-32.768KHZ	Abracon晶振	AB15T	32.768kHz	±20ppm	12.5pF	-20°C ~ 70°C
AB308-4.000MHZ	Abracon晶振	AB308	4MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-10.000MHZ	Abracon晶振	AB308	10MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.000MHZ	Abracon晶振	AB308	12MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.288MHZ	Abracon晶振	AB308	12.288MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.352MHZ	Abracon晶振	AB308	12.352MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-14.31818MHZ	Abracon晶振	AB308	14.31818MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-14.7456MHZ	Abracon晶振	AB308	14.7456MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.000MHZ	Abracon晶振	AB308	16MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.257MHZ	Abracon晶振	AB308	16.257MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.667MHZ	Abracon晶振	AB308	16.667MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-20.000MHZ	Abracon晶振	AB308	20MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-4.9152MHZ	Abracon晶振	AB308	4.9152MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-5.000MHZ	Abracon晶振	AB308	5MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-6.000MHZ	Abracon晶振	AB308	6MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-7.3728MHZ	Abracon晶振	AB308	7.3728MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-8.000MHZ	Abracon晶振	AB308	8MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-28.000MHZ	Abracon晶振	AB308	28MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-28.6363MHZ	Abracon晶振	AB308	28.6363MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-29.4912MHZ	Abracon晶振	AB308	29.4912MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-53.125MHZ	Abracon晶振	AB308	53.125MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-8.000MHZ	Abracon晶振	AB308	8MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-10.000MHZ	Abracon晶振	AB308	10MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.000MHZ	Abracon晶振	AB308	12MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.000MHZ	Abracon晶振	AB308	16MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-20.000MHZ	Abracon晶振	AB308	20MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-5.000MHZ	Abracon晶振	AB308	5MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-6.000MHZ	Abracon晶振	AB308	6MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-7.3728MHZ	Abracon晶振	AB308	7.3728MHz	±30ppm	16pF	-10°C ~ 60°C
