E1S贴片二脚晶振,E1SJA10-8.000M流媒体后视镜晶振,Ecliptek进口晶振

频率：14.31818MHZ

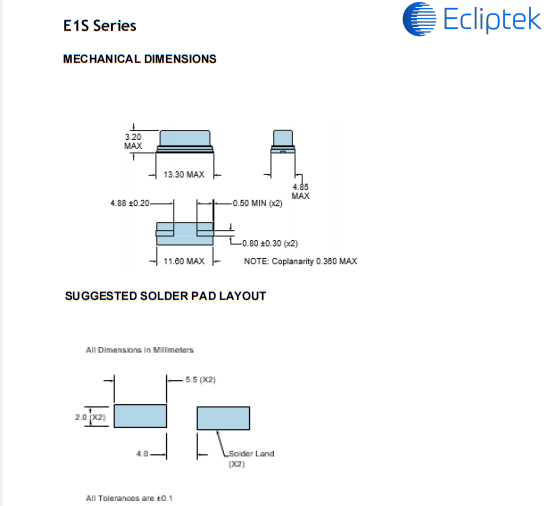

尺寸：13.3*4.85mm

E1S贴片二脚晶振,E1SJA10-8.000M流媒体后视镜晶振,Ecliptek进口晶振，美国日蚀晶振公司，电话机晶振，电脑晶振，欧美进口晶振，智能手机晶振，蓝牙设备晶振，医疗设备晶振，电脑晶振，智能手机晶振，蓝牙设备晶振，高端晶振，智能门锁晶振，石英晶振，电脑晶振，收音机晶振，美国晶振，E1S晶振，E1SJA10-8.000M晶振，49SMD晶振，通讯设备晶振，二脚晶振，SMD晶振，医疗设备晶振，进口晶振，通讯设备晶振。

订购热线：0755-27838351

E1S贴片二脚晶振,E1SJA10-8.000M流媒体后视镜晶振,Ecliptek进口晶振，美国日蚀晶振公司，电话机晶振，电脑晶振，欧美进口晶振，智能手机晶振，蓝牙设备晶振，医疗设备晶振，电脑晶振，智能手机晶振，蓝牙设备晶振，高端晶振，智能门锁晶振，石英晶振，电脑晶振，收音机晶振，美国晶振，E1S晶振，E1SJA10-8.000M晶振，49SMD晶振，通讯设备晶振，二脚晶振，SMD晶振，医疗设备晶振，进口晶振，通讯设备晶振。

E1S贴片二脚晶振,E1SJA10-8.000M流媒体后视镜晶振,Ecliptek进口晶振

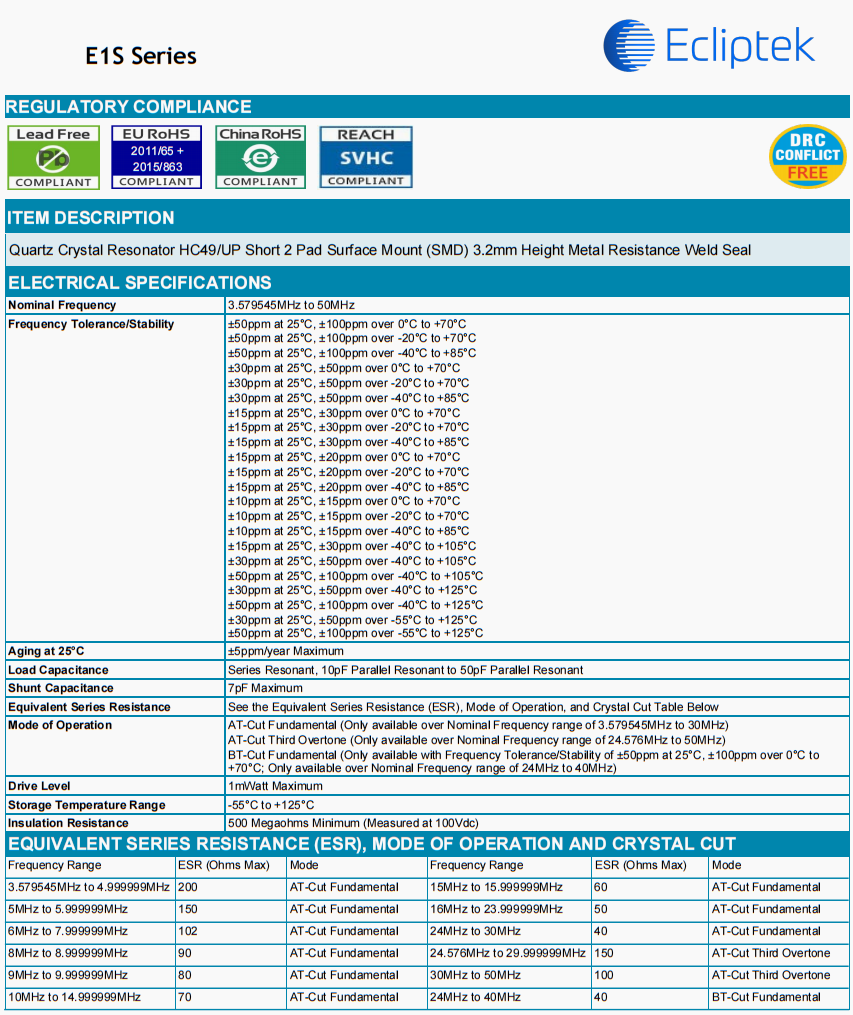

标称温度	8MHz
频率容差/稳定度	±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C
老化	±5ppm/year Maximum
负载电容	Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant
分流电容	7pF Maximum
等效串联电阻	See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below
工作模式	AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz)
驱动电平	1mWatt Maximum
储存温度范围	-55°C to +125°C
绝缘电阻	500 Megaohms Minimum (Measured at 100Vdc)

E1S贴片二脚晶振,E1SJA10-8.000M流媒体后视镜晶振,Ecliptek进口晶振

编码	品牌	型号	频率	频率稳定度	频率容差	负载电容
E1SAA12-24.000M	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	12 pF
E1SAA12-24.000M TR	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	12 pF
E1SAA12-30.000M TR	Ecliptek	E1S	30 MHz	±100ppm	±50ppm	12 pF
E1SAA18-12.000M	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	18 pF
E1SAA18-16.000M TR	Ecliptek	E1S	16 MHz	±100ppm	±50ppm	18 pF
E1SAA18-24.000M TR	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	18 pF
E1SAA18-25.000M TR	Ecliptek	E1S	25 MHz	±100ppm	±50ppm	18 pF
E1SAA20-5.000M TR	Ecliptek	E1S	5 MHz	±100ppm	±50ppm	20 pF
E1SBA18-16.000M TR	Ecliptek	E1S	16 MHz	±100ppm	±50ppm	18 pF
E1SBA18-25.000M TR	Ecliptek	E1S	25 MHz	±100ppm	±50ppm	18 pF
E1SBA18-27.000M TR	Ecliptek	E1S	27 MHz	±100ppm	±50ppm	18 pF
E1SBA18-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±100ppm	±50ppm	18 pF
E1SBA18-7.3728M TR	Ecliptek	E1S	7.3728 MHz	±100ppm	±50ppm	18 pF
E1SBA18-8.000M TR	Ecliptek	E1S	8 MHz	±100ppm	±50ppm	18 pF
E1SBA20-12.000M	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	20 pF
E1SBA20-12.000M TR	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	20 pF
E1SCA12-24.000M	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	12 pF
E1SCA12-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±100ppm	±50ppm	12 pF
E1SCA18-14.7456M TR	Ecliptek	E1S	14.7456 MHz	±100ppm	±50ppm	18 pF
E1SCA18-20.000M TR	Ecliptek	E1S	20 MHz	±100ppm	±50ppm	18 pF
E1SCA18-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±100ppm	±50ppm	18 pF
E1SCA18-4.000M TR	Ecliptek	E1S	4 MHz	±100ppm	±50ppm	18 pF
E1SCA18-7.3728M TR	Ecliptek	E1S	7.3728 MHz	±100ppm	±50ppm	18 pF
E1SCA18-8.000M TR	Ecliptek	E1S	8 MHz	±100ppm	±50ppm	18 pF
E1SCA32-12.000M	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	32 pF
E1SDA12-25.000M TR	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	12 pF
E1SDA18-24.576M	Ecliptek	E1S	24.576 MHz	±50ppm	±30ppm	18 pF
E1SDA18-25.000M TR	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	18 pF
E1SEA18-12.000M TR	Ecliptek	E1S	12 MHz	±50ppm	±30ppm	18 pF
E1SEA18-25.000M	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	18 pF
E1SEA18-28.6363M TR	Ecliptek	E1S	28.6363 MHz	±50ppm	±30ppm	18 pF
E1SEA18-3.6864M	Ecliptek	E1S	3.6864 MHz	±50ppm	±30ppm	18 pF
E1SEA18-4.2944M TR	Ecliptek	E1S	4.2944 MHz	±50ppm	±30ppm	18 pF
E1SEA20-25.000M	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	20 pF
E1SEA20-4.000M TR	Ecliptek	E1S	4 MHz	±50ppm	±30ppm	20 pF
E1SEA20-8.000M	Ecliptek	E1S	8 MHz	±50ppm	±30ppm	20 pF
E1SEA20-8.000M TR	Ecliptek	E1S	8 MHz	±50ppm	±30ppm	20 pF
E1SEA40-8.704M TR	Ecliptek	E1S	8.704 MHz	±50ppm	±30ppm	40 pF
E1SFA12-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±50ppm	±30ppm	12 pF
E1SFA16-6.290M TR	Ecliptek	E1S	6.29 MHz	±50ppm	±30ppm	16 pF
E1SFA18-12.000M TR	Ecliptek	E1S	12 MHz	±50ppm	±30ppm	18 pF
E1SFA18-14.31818M TR	Ecliptek	E1S	14.31818 MHz	±50ppm	±30ppm	18 pF
E1SFA18-25.000M TR	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	18 pF
E1SFA18-3.6864M	Ecliptek	E1S	3.6864 MHz	±50ppm	±30ppm	18 pF
E1SFA18-7.3728M TR	Ecliptek	E1S	7.3728 MHz	±50ppm	±30ppm	18 pF
E1SFA18-8.000M TR	Ecliptek	E1S	8 MHz	±50ppm	±30ppm	18 pF
E1SFA20-25.000M	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	20 pF
E1SFAS-24.000M TR	Ecliptek	E1S	24 MHz	±50ppm	±30ppm
E1SGA18-14.7456M TR	Ecliptek	E1S	14.7456 MHz	±30ppm	±15ppm	18 pF
E1SGA18-25.000M TR	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	18 pF
E1SHA10-29.950M TR	Ecliptek	E1S	29.95 MHz	±30ppm	±15ppm	10 pF
E1SHA20-25.000M TR	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	20 pF
E1SJA16-14.31818M	Ecliptek	E1S	14.31818 MHz	±30ppm	±15ppm	16 pF
E1SJA18-24.000M TR	Ecliptek	E1S	24 MHz	±30ppm	±15ppm	18 pF
E1SJA18-25.000M TR	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	18 pF
E1SJA18-4.000M TR	Ecliptek	E1S	4 MHz	±30ppm	±15ppm	18 pF
E1SJA20-25.000M	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	20 pF
E1SMA14-25.000M	Ecliptek	E1S	25 MHz	±20ppm	±15ppm	14 pF
E1SMA18-25.000M	Ecliptek	E1S	25 MHz	±20ppm	±15ppm	18 pF
E1SMA18-27.000M	Ecliptek	E1S	27 MHz	±20ppm	±15ppm	18 pF
E1SMA18-27.000M TR	Ecliptek	E1S	27 MHz	±20ppm	±15ppm	18 pF
E1SNA16-25.000M TR	Ecliptek	E1S	25 MHz	±15ppm	±10ppm	16 pF
E1SNA18-25.000M TR	Ecliptek	E1S	25 MHz	±15ppm	±10ppm	18 pF
E1SSA18-5.000M TR	Ecliptek	E1S	5 MHz	±50ppm	±30ppm	18 pF
E1SSA20-10.000M	Ecliptek	E1S	10 MHz	±50ppm	±30ppm	20 pF
E1SSA20-10.000M TR	Ecliptek	E1S	10 MHz	±50ppm	±30ppm	18 pF
E1WSDA12-32.768K	Ecliptek	E1WS	32.768 kHz		±20ppm	12.5 pF
E1WSDA12-32.768K TR	Ecliptek	E1WS	32.768 kHz		±20ppm	12.5 pF
EA1216MA08-25.000M TR	Ecliptek	EA1216	25 MHz	±20ppm	±15ppm	8 pF
EA1620MA10-25.000M TR	Ecliptek	EA1620	25 MHz	±20ppm	±15ppm	10 pF
EA3560LA20-25.000M TR	Ecliptek	EA3560	25 MHz	±20ppm	±15ppm	20 pF
EA5070CA12-24.000M TR	Ecliptek	EA5070	24 MHz	±100ppm	±50ppm	12 pF
EA5070CA18-20.000M TR	Ecliptek	EA5070	20 MHz	±100ppm	±50ppm	18 pF
EA5070CAS-8.000M TR	Ecliptek	EA5070	8 MHz	±100ppm	±50ppm	8 pF
EA5070FA16-22.5792M TR	Ecliptek	EA5070	22.5792 MHz	±50ppm	±30ppm	16 pF
EA5070FA18-10.000M	Ecliptek	EA5070	10 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-14.31818M	Ecliptek	EA5070	14.31818 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-24.000M TR	Ecliptek	EA5070	24 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-25.000M TR	Ecliptek	EA5070	25 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-27.000M TR	Ecliptek	EA5070	27 MHz	±50ppm	±30ppm	18 pF
EA5070FA20-7.3728M	Ecliptek	EA5070	7.3728 MHz	±50ppm	±30ppm	20 pF
EA5070GA18-25.000625M	Ecliptek	EA5070	25.000625 MHz	±30ppm	±15ppm	18 pF
EA5070GA18-25.000625M TR	Ecliptek	EA5070	25.000625 MHz	±30ppm	±15ppm	18 pF
EA5070GA20-7.3728M	Ecliptek	EA5070	7.3728 MHz	±30ppm	±15ppm	20 pF
EA5070JA18-25.000625M TR	Ecliptek	EA5070	25.000625 MHz	±30ppm	±15ppm	18 pF
EA5070JA20-14.31818M TR	Ecliptek	EA5070	14.31818 MHz	±30ppm	±15ppm	20 pF
EA5070JA20-6.000M TR	Ecliptek	EA5070	6 MHz	±30ppm	±15ppm	20 pF
EA5070PA20-8.000M	Ecliptek	EA5070	8 MHz	±15ppm	±10ppm	20 pF
EB2025YA10-25.000M TR	Ecliptek	EB2025	25 MHz	±50ppm	±30ppm	10 pF
EB3250AYA08-25.000M TR	Ecliptek	EB3250A	25 MHz	±50ppm	±30ppm	8 pF
EB8WSDX12-32.768K TR	Ecliptek	EB8WS	32.768 kHz		±20ppm	12.5 pF
