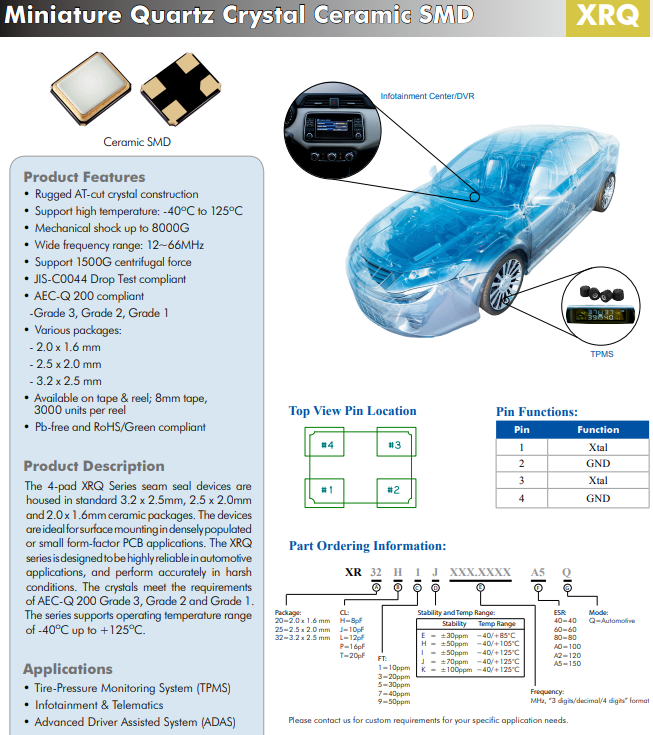

XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
百利通亚陶晶振XRQ系列接缝密封装置采用标准3.2x2.5mm、2.5x2.0mm和2.0x1.6mm陶瓷封装。这些器件非常适合在密集或小型PCB应用中进行表面贴装。XRQ系列旨在在汽车应用中高度可靠，车载晶振，并在恶劣条件下准确运行。晶体符合AEC-Q200 3级、2级和1级的要求。该系列支持-40℃至+125℃的工作温度范围。
特征：
坚固的AT切割晶体结构
支持高温：-40℃至125℃耐高温晶振
机械冲击高达8000G
宽频率范围：12~66MHz
支持1500G 离心力
符合JIS-C0044跌落测试
AEC-Q 200 兼容 - 3级、2级、1级
各种封装：2.0x1.6毫米，2.5x2.0毫米，3.2x2.5毫米
8 毫米胶带，每卷3000个单位
无铅且符合 RoHS/Green标准
应用程序：
胎压监测系统(TPMS)
信息娱乐和远程信息处理
高级驾驶员辅助系统 (ADAS)
XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
| FN0200045 | Diodes Incorporated | SaRonix-eCera™ FN | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm | -40°C ~ 85°C |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm | -40°C ~ 85°C |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm | -40°C ~ 85°C |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm | -40°C ~ 85°C |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm | -40°C ~ 85°C |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm | -40°C ~ 85°C |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm | -40°C ~ 85°C |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm | -40°C ~ 85°C |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm | -40°C ~ 85°C |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 105°C |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 105°C |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 105°C |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
Product Parameters
| Compliance (Only Automotive supports PPAP) | Automotive |
|---|---|
| ProductSeries | XRQ |
| Family | Xtals/Crystals |
| Legacy PN | None |
| Freq Range (MHz) | 12 to 66, 16 to 66, 24 to 66 |
| Package Type | Ceramic Seam |
| Package Size (mm) | 3.2 x 2.5 x 0.65, 2.5 x 2.0 x 0.6, 2.0 x 1.6 x 0.45 |
| Pads | 4 |
| NotRecommended | 0 |
XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
产品参数：
合规性（仅汽车支持PPAP）汽车电子晶振产品系列XRC
家庭 Xtals/晶体
旧版PN没有任何
频率范围 12至66MHz、16至66MHz、24至66MHz
包装类型 陶瓷缝
包装尺寸3.2x2.5x0.65mm、2.5x2.0x0.6mm、2.0x1.6x0.45mm
垫 4脚
不建议 0
FN2500258Z
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500258Z
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500258Z
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500264Z
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500264Z
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500264Z
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN5000109
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±25ppm
-20°C ~ 70°C
FN5000109
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±25ppm
-20°C ~ 70°C
FN5000109
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±25ppm
-20°C ~ 70°C
FN1200041Z
Diodes Incorporated
SaRonix-eCera™ FN
12MHz
±50ppm
-40°C ~ 85°C
FN1200041Z
Diodes Incorporated
SaRonix-eCera™ FN
12MHz
±50ppm
-40°C ~ 85°C
FN1200041Z
Diodes Incorporated
SaRonix-eCera™ FN
12MHz
±50ppm
-40°C ~ 85°C
NX7125003Z
Diodes Incorporated
SaRonix-eCera™ NX
25MHz
±50ppm
-20°C ~ 70°C
NX7125003Z
Diodes Incorporated
SaRonix-eCera™ NX
25MHz
±50ppm
-20°C ~ 70°C
NX7125003Z
Diodes Incorporated
SaRonix-eCera™ NX
25MHz
±50ppm
-20°C ~ 70°C
FK1220016Z
Diodes Incorporated
SaRonix-eCera™ FK
12.288MHz
±50ppm
-40°C ~ 85°C
FK1220016Z
Diodes Incorporated
SaRonix-eCera™ FK
12.288MHz
±50ppm
-40°C ~ 85°C
FK1220016Z
Diodes Incorporated
SaRonix-eCera™ FK
12.288MHz
±50ppm
-40°C ~ 85°C
NX7011D0074.250000
Diodes Incorporated
SaRonix-eCera™ NX
74.25MHz
±25ppm
-40°C ~ 85°C
NX7011D0074.250000
Diodes Incorporated
SaRonix-eCera™ NX
74.25MHz
±25ppm
-40°C ~ 85°C
NX7011D0074.250000
Diodes Incorporated
SaRonix-eCera™ NX
74.25MHz
±25ppm
-40°C ~ 85°C
FNDDR1133
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
133.33MHz
±50ppm
-20°C ~ 70°C
FNDDR1133
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
133.33MHz
±50ppm
-20°C ~ 70°C
FNDDR1133
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
133.33MHz
±50ppm
-20°C ~ 70°C
FJ2500009
Diodes Incorporated
SaRonix-eCera™ FJ
25MHz
±25ppm
-40°C ~ 85°C
高可靠性石英晶体旨在满足汽车TPMS的要求，XRQ水晶系列是设计高度可靠 在汽车应用中，并且在以下方面表现准确 恶劣的条件。 这些零件有资格AEC-Q200，是PPAP有能力，并且制造于IATF16949:2016认证 设施。零件包括 三个温度范围 允许他们支持引擎盖下，乘客隔间热点，以及普通乘客 隔间位置。 它们是接缝密封装置， 有三种尺寸可供选择 陶瓷封装: XR32Q:3.2毫米x2.5mm毫米 XR25Q:2.5毫米x2.0mm毫米 XR20Q:2.0毫米x1.6mm毫米 这些器件支持频率，从12兆赫到66兆赫。 XRQ系列符合超声波的要求 焊接制造 过程以及 行业标准跌落测试
XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
FJ2500009
Diodes Incorporated
SaRonix-eCera™ FJ
25MHz
±25ppm
-40°C ~ 85°C
FJ2500009
Diodes Incorporated
SaRonix-eCera™ FJ
25MHz
±25ppm
-40°C ~ 85°C
NX7011D0074.175824
Diodes Incorporated
SaRonix-eCera™ NX
74.175824MHz
±25ppm
-40°C ~ 85°C
NX7011D0074.175824
Diodes Incorporated
SaRonix-eCera™ NX
74.175824MHz
±25ppm
-40°C ~ 85°C
NX7011D0074.175824
Diodes Incorporated
SaRonix-eCera™ NX
74.175824MHz
±25ppm
-40°C ~ 85°C
FJ2500036Z
Diodes Incorporated
SaRonix-eCera™ FJ
25MHz
±25ppm
-20°C ~ 70°C
FJ2500036Z
Diodes Incorporated
SaRonix-eCera™ FJ
25MHz
±25ppm
-20°C ~ 70°C
FJ2500036Z
Diodes Incorporated
SaRonix-eCera™ FJ
25MHz
±25ppm
-20°C ~ 70°C
HX7011C0050.000000
Diodes Incorporated
SaRonix-eCera™ HX
50MHz
±25ppm
-40°C ~ 105°C
HX7011C0050.000000
Diodes Incorporated
SaRonix-eCera™ HX
50MHz
±25ppm
-40°C ~ 105°C
HX7011C0050.000000
Diodes Incorporated
SaRonix-eCera™ HX
50MHz
±25ppm
-40°C ~ 105°C
SHA000001
Diodes Incorporated
SaRonix-eCera™ SH
100MHz
±50ppm
-40°C ~ 85°C
SHA000001
Diodes Incorporated
SaRonix-eCera™ SH
100MHz
±50ppm
-40°C ~ 85°C
SHA000001
Diodes Incorporated
SaRonix-eCera™ SH
100MHz
±50ppm
-40°C ~ 85°C
HX7013D0100.000000
Diodes Incorporated
SaRonix-eCera™ HX
100MHz
±50ppm
-40°C ~ 90°C
HX7013D0100.000000
Diodes Incorporated
SaRonix-eCera™ HX
100MHz
±50ppm
-40°C ~ 90°C
HX7013D0100.000000
Diodes Incorporated
SaRonix-eCera™ HX
100MHz
±50ppm
-40°C ~ 90°C
FN3300073
Diodes Incorporated
SaRonix-eCera™ FN
33MHz
±50ppm
-40°C ~ 85°C
NX7021D0148.351648
Diodes Incorporated
SaRonix-eCera™ NX
148.351648MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.351648
Diodes Incorporated
SaRonix-eCera™ NX
148.351648MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.351648
Diodes Incorporated
SaRonix-eCera™ NX
148.351648MHz
±25ppm
-40°C ~ 85°C
NX7031D0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±25ppm
-40°C ~ 85°C
NX7031D0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±25ppm
-40°C ~ 85°C
NX7031D0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
三种宽频率接缝密封包装尺寸
XR32Q:3.2毫米x 2.5mm毫米，12兆赫至66兆赫
XR25Q:2.5毫米x 2.0mm毫米，16兆赫至66兆赫
XR20Q:2.0毫米x 1.6mm毫米，24兆赫至66兆赫
满足SAE J2657 (2004)的离心力鉴定
符合TPMS的要求，汽车晶振
符合AEC-Q200 in二极管IATF16949:2016认证
1级:-40摄氏度至+125摄氏度
2级:-40摄氏度至+105摄氏度
3级:-40摄氏度至+85摄氏度
坚固的机械冲击能力支持高达8000G
超过MIL-STD-202方法213(标准。:1500克)
应用程序：轮胎压力监测系统(TPMS)，信息娱乐和远程信息处理，高级驾驶员辅助系统(ADAS)
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm | -40°C ~ 85°C |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm | -40°C ~ 85°C |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm | -40°C ~ 85°C |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm | -40°C ~ 85°C |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm | -40°C ~ 85°C |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm | -40°C ~ 85°C |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm | -40°C ~ 85°C |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm | -20°C ~ 70°C |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm | -20°C ~ 70°C |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm | -20°C ~ 70°C |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
XRQ系列非常适合汽车应用中高度的可靠性,XR20J3E024.0000A5Q,汽车电子晶振,ECERA超小型晶振
2.0x1.6封装2.0x1.6、2.5x2.0和3.2x2.5封装：
频率范围:16.0000MHz至66.0000MHz
25°C±3°C时的特性:频率校准容差:10ppm至50ppm*
负载电容:7至32pF或串联谐振
有效串联电阻(ESR):
16.0000 MHz至19.9999 MHz:最大150ω
20.0000 MHz至31.9999 MHz:最大80ω
32.0000 MHz至66.0000 MHz:最大60ω
驱动电平:典型值10 W。(最大100瓦)
并联电容:最大3pF，2.5x2.0封装
频率范围:12.0000MHz至66.0000MHz(基波)
25°C±3°C时的特性:
频率校准容差:10ppm至50ppm*
负载电容:7至32pF或串联谐振*
有效串联电阻(ESR):
12.0000 MHz至19.9999 MHz:最大100ω
20.0000 MHz至31.9999 MHz:最大60ω
32.0000 MHz至66.0000 MHz:最大40ω
驱动电平:典型值10 W。(最大100瓦)
并联电容:最大3pF
