DSC8001BI5 - 050.0000T|6G基站晶振|5032mm进口贴片晶振
频率：50MHz
尺寸：5.0×3.2mm
DSC8001BI5 - 050.0000T|6G基站晶振|5032mm进口贴片晶振,Microchip美国晶振,DSC8001有源晶振,DSC8001BI5 - 050.0000T晶振,5032mm晶振,进口贴片晶振,石英晶体振荡器,CMOS输出,频率50MHz,电压3.3V,频率稳定性10ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G基站晶振,移动应用晶振, 消费电子产品晶振,便携式电子设备晶振,工业应用晶振.
DSC8001BI5 - 050.0000T|6G基站晶振|5032mm进口贴片晶振,Microchip美国晶振,DSC8001有源晶振,DSC8001BI5 - 050.0000T晶振,5032mm晶振,进口贴片晶振,石英晶体振荡器,CMOS输出,频率50MHz,电压3.3V,频率稳定性10ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G基站晶振,移动应用晶振, 消费电子产品晶振,便携式电子设备晶振,工业应用晶振.

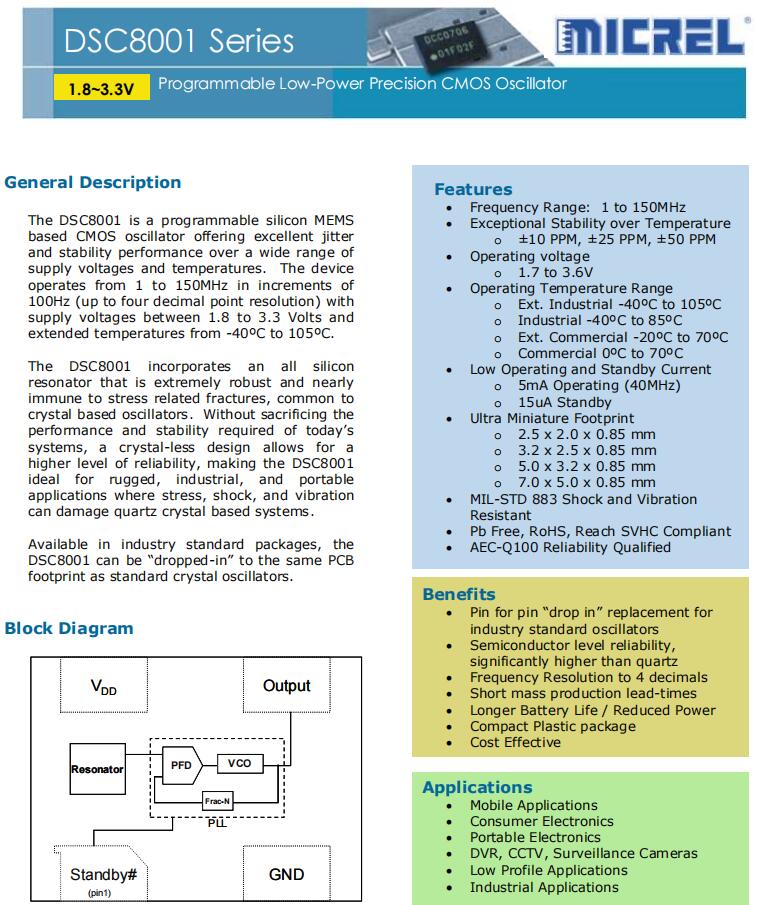

DSC8001BI5 - 050.0000T|6G基站晶振|5032mm进口贴片晶振特点：
•输出频率:1MHz至150 MHz
•整个温度范围内的出色稳定性：±10 PPM, ±25 PPM, ±50 PPM
•超小足迹
- 2.5 x 2.0 x 0.85 mm
- 3.2 x 2.5 x 0.85 mm
- 5.0 x 3.2 x 0.85 mm
- 7.0 x 5.0 x 0.85 mm
•工作电压:1.7v～3.6v
•工业温度范围:
- 外工业-40℃至105℃
- 工业-40℃至85℃
- 外商用-20°C至70°C
- 商用0°C至70°C
•MIL-STD 883抗冲击和振动
•低工作和待机电流
-5mA操作(40MHz)
-15uA待机
•无铅、符合RoHS、Reach SVHC标准
•AEC-Q100可靠性认证

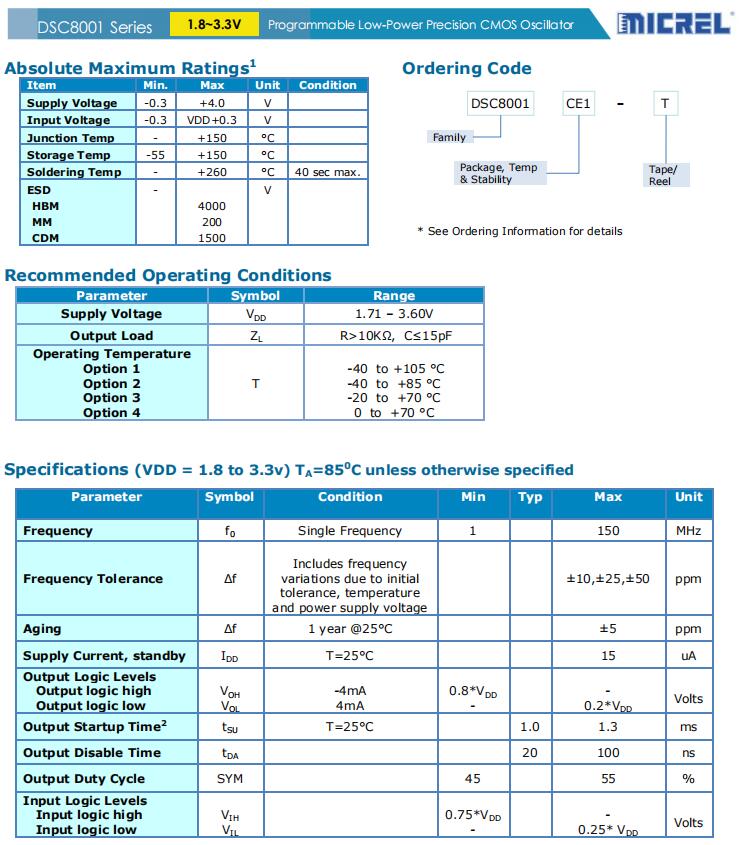

DSC8001BI5 - 050.0000T|6G基站晶振|5032mm进口贴片晶振参数图
0.2 x VDDV Max
项目
规格说明
条件
额定频率
52MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
3.3V
储存温度
-55℃~+150℃
裸存
工作温度
-40℃~ +85℃
频率稳定度
±10ppm
所有温度范围
老化
±5ppm
1 year @ +25°C
电流
15 uA Typ
FOUT = 27 MHz, VDD = 1.8V, No Load
占空比
45%~55%
输出逻辑电平低（Vol）
I=±4mA
输出逻辑电平高（Voh）
0.8 x VDDV Min
起始时间
1.3ms Max
From 90% VDD to valid clock output, T = +25° C
输出上升下降时间
2.0ns Max
3.3V, CL=15pF; T=25°C 20%/80%*VDD
Cycle-to-Cycle抖动(峰值)
50ps Max
F = 100MHz3

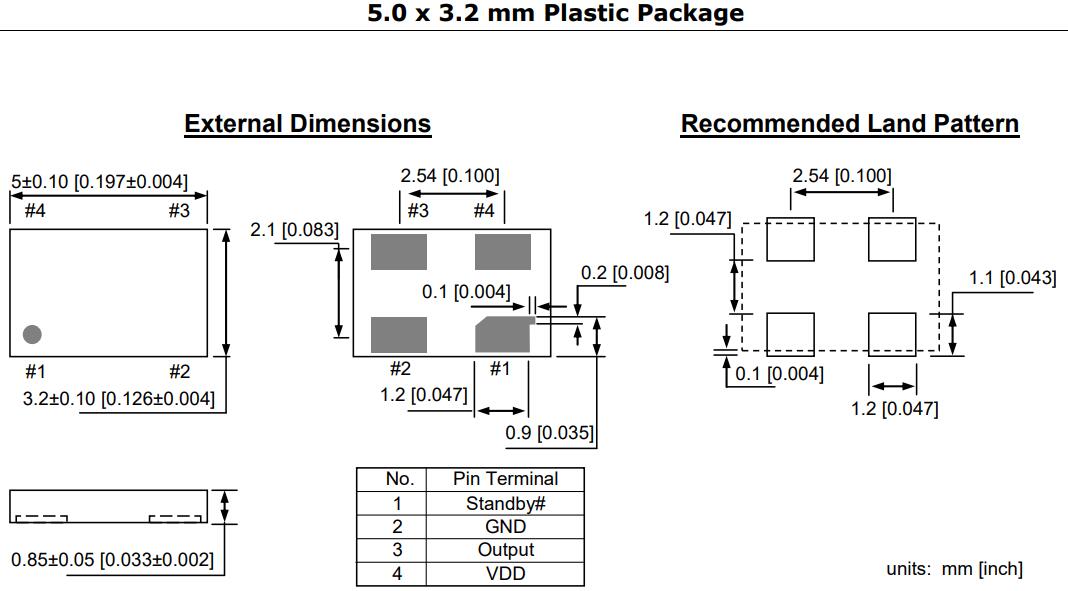

DSC8001BI5 - 050.0000T|6G基站晶振|5032mm进口贴片晶振尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123BL2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1030BC1-008.0000 | Microchip Technology | DSC1030 | MEMS (Silicon) | 8MHz | 3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC1-026.6000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 26MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE2-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1101BI5-133.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 133MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BL5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-148.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-135.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 135MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-125.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI2-153.6000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 153.6MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-024.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BI2-100.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-080.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 80MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BE1-156.2500T | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI1-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-100.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-114.2850 | Microchip Technology | DSC1122 | MEMS (Silicon) | 114.285MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-155.5200 | Microchip Technology | DSC1122 | MEMS (Silicon) | 155.52MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1122BI2-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1102BI1-100.0000 | Microchip Technology | DSC1102 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1123BI5-156.2500T | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1103BL5-062.5000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX553BBA312M500 | Microchip Technology | MX55 | XO (Standard) | 312.5MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BE1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI2-027.1200 | Microchip Technology | DSC1033 | MEMS (Silicon) | 27.12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.3181 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.3181MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-014.7456 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-016.3840 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.5000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.5MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BI1-025.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-005.5296 | Microchip Technology | DSC1001 | MEMS (Silicon) | 5.5296MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-013.0810 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.081MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-054.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-012.2888 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.2888MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL1-060.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE1-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL2-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI2-125.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BE5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-013.5600 | Microchip Technology | DSC1001 | MEMS (Silicon) | 13.56MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-016.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BL5-095.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 95MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI5-090.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 90MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| MX555ABA50M0000 | Microchip Technology | MX55 | XO (Standard) | 50MHz | 2.375 V ~ 3.63 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-012.2880 | Microchip Technology | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1033BC2-012.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BC1-020.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1001BI1-033.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.7 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
