357LB3I040M0000,40MHz,357系列7050mm振荡器,CTS低抖动晶振

频率：40MH

尺寸：7.0x5.0x2.0mm

357LB3I040M0000,40MHz,357系列7050mm振荡器,CTS低抖动晶振，美国进口晶振，CTS晶振，西迪斯晶振，型号：357系列晶振，编码为：357LB3I040M0000，频率：40MHz，工作电压：3.3V，频率稳定性：±50ppm，频率容差：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0x2.0mm，六脚贴片晶振，石英晶振，有源晶振，7050晶振，VCXO压控晶体振荡器，HCMOS输出晶振，357型是一个陶瓷封装的电压控制振荡器，提供减小的尺寸和增强的稳定性。较小的尺寸意味着它非常适合任何应用程序。增强的稳定性意味着它是当今需要严格的频率控制的通信应用程序的完美选择。

订购热线：0755-27838351

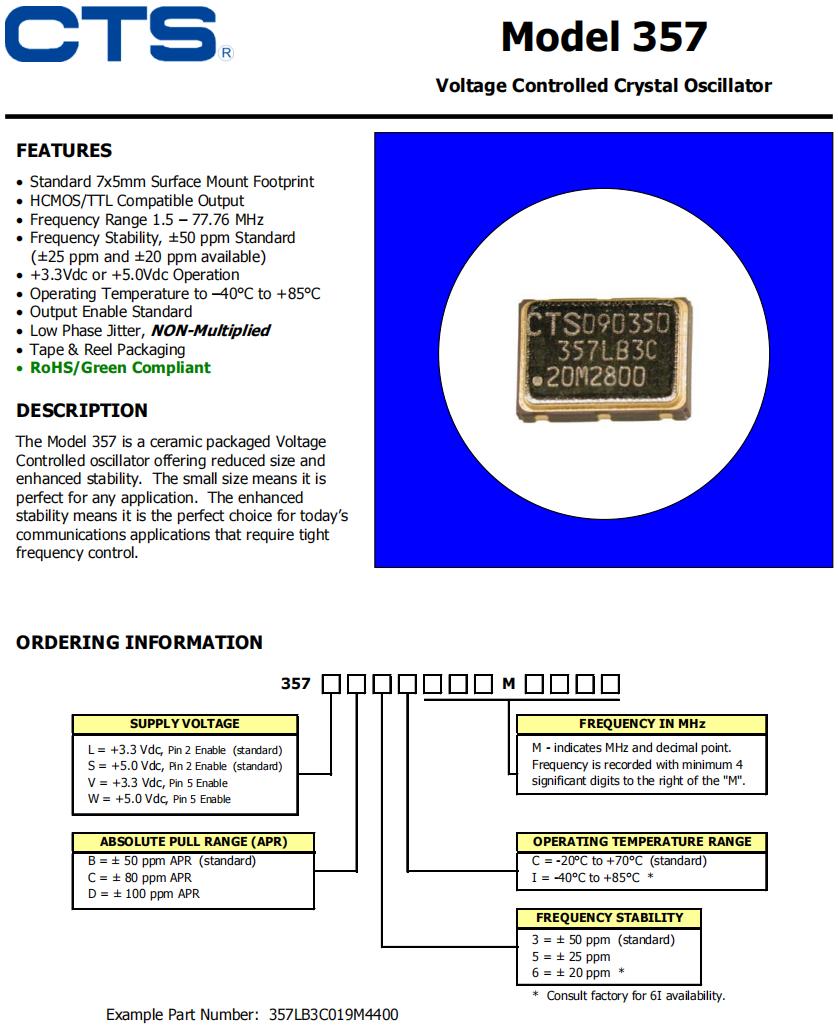

357LB3I040M0000,40MHz,357系列7050mm振荡器,CTS低抖动晶振，产品特征：

•标准7x5mm表面安装封装

•HCMOS/TTL兼容输出

•频率范围1.5–77.76MHz石英晶体振荡器

•频率稳定性，±50 ppm标准（±25 ppm和±20 ppm可用）

•+3.3Vdc或+5.0Vdc操作

•工作温度至-40°C至+85°C

•输出启用标准

•低相位抖动

•磁带和卷轴包装

357LB3I040M0000,40MHz,357系列7050mm振荡器,CTS低抖动晶振

PARAMETER	SYMBOL	CONDITIONS	MIN	TYP	MAX	UNIT
Maximum Supply Voltage	VCC	-	-0.5	-	7.0	V
Maximum Control Voltage	VC	-	-0.5	-	VCC	V
Storage Temperature	TSTG	-	-55	-	125	°C
Frequency Range	fO	-		40		MHz
Frequency Stability (See Note 1 and Ordering Information)	Δf/fO	-	-	-	20, 25 or 50	± ppm
Absolute Pull Range (See Note 2 and Ordering Information)	APR	-	50, 80 or 100	-	-	± ppm
Operating Temperature Commercial Industrial	TA	-	-20 -40	25	70 85	°C
Supply Voltage Model 357S, 357W Model 357L, 357V	VCC	± 10 %	4.5 2.97	5.0 3.3	5.5 3.63	V
Supply Current	ICC	CL = 15 pF 1.5 MHz to 20 MHz 20.1 MHz to 40 MHz 40.1 MHz to 60 MHz 60.1 MHz to 80 MHz	- - - -	5 8 10 12	20 30 40 45	mA
Output Load	CL		-	-	30	pF
Control Voltage Model 357S, 357W Model 357L, 357V	VC	VCC = 5.0V VCC = 3.3V	0.5 0.3	2.5 1.65	4.5 3.0	V
Frequency Deviation	Δf	25°C at Time of Shipment, over VC range	-	135	-	± ppm
Linearity Best Straight Line Fit	L	< 52 MHz > 52 MHz	-	5 8	10 15	%
Output Duty Cycle	SYM	@ 50% Level	45	-	55	%
Output Voltage Levels Logic '1' Level Logic '0' Level	VOH VOL	CMOS Load CMOS Load	90%VCC -	- -	- 10%VCC	V
Output Current Levels Logic '1' Level Logic '0' Level	IOH IOL	CMOS Load CMOS Load	- -	- -	-14 14	mA
Rise and Fall Time	TR, TF	@ 10% - 90% Levels	-	3.5	5.0	ns
Input Impedance	ZC	-	50	-	-	kOhms
Transfer Function	-	-	-	Positive	-	-
Start Up Time	TS	Application of VCC	-	-	10	ms
Modulation Roll-off	-	@ -3dB	10	-	-	kHz
Phase Jitter	tjms	Bandwidth 12 kHz - 20 MHz	-	-	1	ps RMS
Enable Function Enable Input Voltage Disable Input Voltage	VIH VIL	Pin 2 or Pin 5 Logic '1', Output Enabled Pin 2 or Pin 5 Logic '0', Output Disabled	2.5 -	- -	- 0.5	V
Enable Time	TPLZ	Pin 2 or Pin 5 Logic '1'	-	-	100	ns

357LB3I040M0000,40MHz,357系列7050mm振荡器,CTS低抖动晶振

压控晶振	品牌	型号	频率	频率稳定度	包装/封装
357LB3I032M7680	CTS晶振	357	32.768MHz	±50ppm	6-SMD, No Lead
357LB3I040M0000	CTS晶振	357	40MHz	±50ppm	6-SMD, No Lead
357LB3I002M0480	CTS晶振	357	2.048MHz	±50ppm	6-SMD, No Lead
357LB3I027M0000	CTS晶振	357	27MHz	±50ppm	6-SMD, No Lead
357LB3I004M0960	CTS晶振	357	4.096MHz	±50ppm	6-SMD, No Lead
357LB3I019M4400	CTS晶振	357	19.44MHz	±50ppm	6-SMD, No Lead
357LB3I001M5440	CTS晶振	357	1.544MHz	±50ppm	6-SMD, No Lead
357LB3I006M1760	CTS晶振	357	6.176MHz	±50ppm	6-SMD, No Lead
357LB3I016M3840	CTS晶振	357	16.384MHz	±50ppm	6-SMD, No Lead
357LB3I020M0000	CTS晶振	357	20MHz	±50ppm	6-SMD, No Lead
357LB3C024M5760	CTS晶振	357	24.576MHz	±50ppm	6-SMD, No Lead
357LB3C027M0000	CTS晶振	357	27MHz	±50ppm	6-SMD, No Lead
357LB3I025M6000	CTS晶振	357	25.6MHz	±50ppm	6-SMD, No Lead
357LB3I035M3280	CTS晶振	357	35.328MHz	±50ppm	6-SMD, No Lead
357LB3I038M8800	CTS晶振	357	38.88MHz	±50ppm	6-SMD, No Lead
357LB5C038M8800	CTS晶振	357	38.88MHz	±25ppm	6-SMD, No Lead
357LD3C027M0000	CTS晶振	357	27MHz	±50ppm	6-SMD, No Lead
357LD3I012M2880	CTS晶振	357	12.288MHz	±50ppm	6-SMD, No Lead
357LC5C027M1450	CTS晶振	357	27.145MHz	±25ppm	6-SMD, No Lead
357LD5C027M0000	CTS晶振	357	27MHz	±25ppm	6-SMD, No Lead
357LB3I044M7360	CTS晶振	357	44.736MHz	±50ppm	6-SMD, No Lead
357LB5C049M1520	CTS晶振	357	49.152MHz	±25ppm	6-SMD, No Lead
357LD5C040M0000	CTS晶振	357	40MHz	±25ppm	6-SMD, No Lead
357LB3I061M4400	CTS晶振	357	61.44MHz	±50ppm	6-SMD, No Lead
357LB3I065M3600	CTS晶振	357	65.36MHz	±50ppm	6-SMD, No Lead
357LB3I060M0000	CTS晶振	357	60MHz	±50ppm	6-SMD, No Lead
357LB3I077M7600	CTS晶振	357	77.76MHz	±50ppm	6-SMD, No Lead
357LC5C074M1758	CTS晶振	357	74.1758MHz	±25ppm	6-SMD, No Lead
357LC5C074M2500	CTS晶振	357	74.25MHz	±25ppm	6-SMD, No Lead
