9.8304MHz,SMD,±30ppm,18pF,ABLS2-9.8304MHZ-D4Y-T,HC-49/US
频率：9.8304MHz
尺寸：11.4x4.7x3.3mm
9.8304MHz,SMD,±30ppm,18pF,ABLS2-9.8304MHZ-D4Y-T,HC-49/US，美国进口晶振，Abracon艾博康无源晶振型号：ABLS2，编码为：ABLS2-9.8304MHZ-D4Y-T，频率为：9.8304MHz，工作温度范围：-40°C~85°C，频率稳定度±30ppm，负载电容18pF，是一款小体积晶振尺寸11.4x4.7x3.3mm，SMD晶振，石英晶振，无源晶振，石英晶体谐振器，HC/49US (AT49) 低轮廓表面安装微处理器晶体，符合RoHS标准的回流，薄型设备，低高度降低到3.3mm，紧密稳定性和延长温度，应用于计算机，调制解调器，微处理器，无线网络，蓝牙模块，物联网应用等。

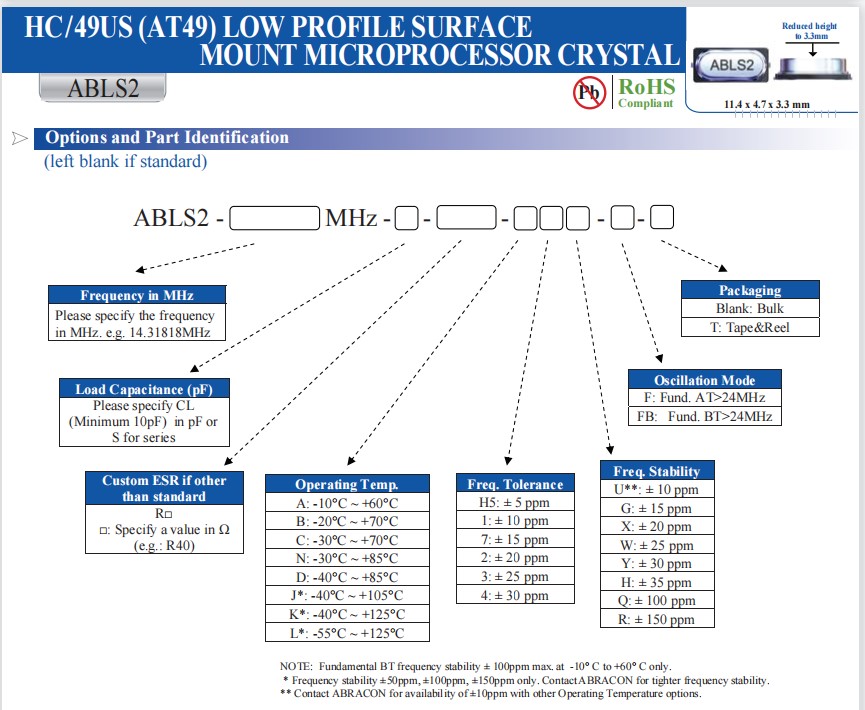

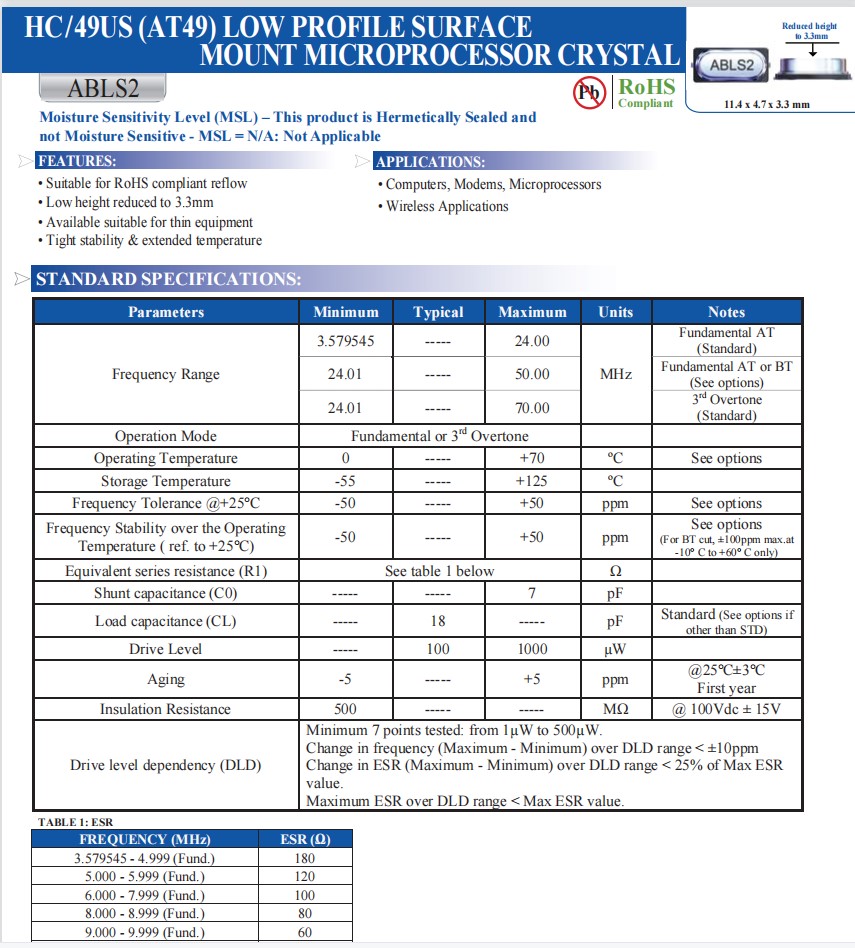

9.8304MHz,SMD,±30ppm,18pF,ABLS2-9.8304MHZ-D4Y-T,HC-49/US，参数图
ABLS2
Minimum
Typical
Maximum
Units
Notes
Frequency Range
3.579545
-----
24
Fundamental AT
(Standard)
24.01
-----
50
MHz
Fundamental AT or BT
(See options)
24.01
-----
70
3rd Overtone
Standard
Operation Mode
Fundamental or 3rd Overtone
Operating Temperature
0
-----
70
ºC
See options
Storage Temperature
-55
-----
125
ºC
Frequency Tolerance @+25°C
-50
-----
50
ppm
See options
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
-50
50
ppm
See options
(For BT cut, ±100ppm max.at
- 10° C to +60° C onl
Equivalent series resistance (R1)
See table 1 below
Ω
Shunt capacitance (C0)
-----
-----
7
pF
Load capacitance (CL)
-----
18
-----
pF
Standard (See options if other than STD)
Drive Level
-----
100
1000
µW
Aging
-5
-----
5
ppm
@25°C±3°C First ear
Insulation Resistance
500
-----
-----
MΩ
@ 100Vdc ± 15V
Drive level dependency (DLD)
Minimum 7 points tested: from 1µW to 500µW.
Change in frequency (Maximum - Minimum) over DLD range < ±10ppm
Change in ESR (Maximum - Minimum) over DLD range < 25% of Max ESR value.
Maximum ESR over DLD range < Max ESR value.

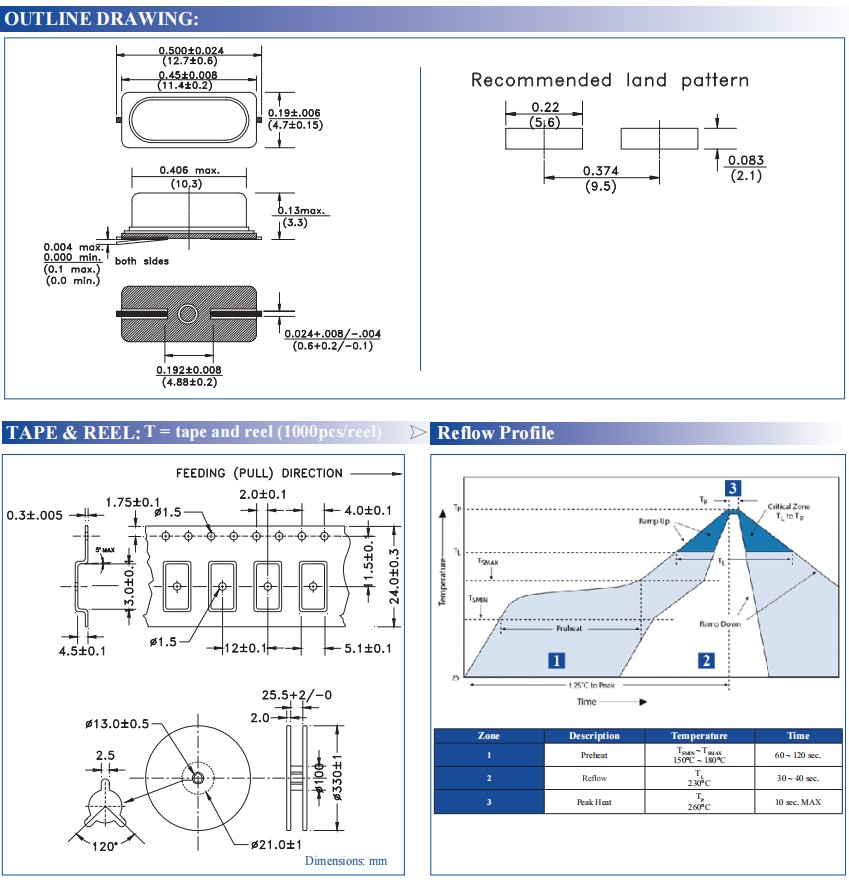

9.8304MHz,SMD,±30ppm,18pF,ABLS2-9.8304MHZ-D4Y-T,HC-49/US，尺寸图
| 原厂编码 | 欧美进口晶振 | 型号 | 系列 | 频率 | 包装/封装 |
| ABLS2-12.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 12MHz | HC49/US |
| ABLS2-25.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 25MHz | HC49/US |
| ABLS2-8.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 8MHz | HC49/US |
| ABLS2-24.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 24MHz | HC49/US |
| ABLS2-6.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 6MHz | HC49/US |
| ABLS2-5.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 5MHz | HC49/US |
| ABLS2-9.8304MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 9.8304MHz | HC49/US |
| ABLS2-4.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 4MHz | HC49/US |
| ABLS2-18.432MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 18.432MHz | HC49/US |
| ABLS2-32.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 32MHz | HC49/US |
| ABLS2-3.6864MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 3.6864MHz | HC49/US |
| ABLS2-3.579545MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 3.579545MHz | HC49/US |
| ABLS2-13.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 13MHz | HC49/US |
| ABLS2-22.1184MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 22.1184MHz | HC49/US |
| ABLS2-6.144MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 6.144MHz | HC49/US |
| ABLS2-7.3728MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 7.3728MHz | HC49/US |
| ABLS2-8.192MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 8.192MHz | HC49/US |
| ABLS2-20.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 20MHz | HC49/US |
| ABLS2-26.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 26MHz | HC49/US |
| ABLS2-29.4912MHZ-D4YF-T | AbraconCrystal | ABLS2 | MHz Crystal | 29.4912MHz | HC49/US |
| ABLS2-10.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 10MHz | HC49/US |
| ABLS2-11.0592MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 11.0592MHz | HC49/US |
| ABLS2-4.096MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 4.096MHz | HC49/US |
| ABLS2-16.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 16MHz | HC49/US |
| ABLS2-16.384MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 16.384MHz | HC49/US |
| ABLS2-36.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 36MHz | HC49/US |
| ABLS2-25.000MHZ-2X-FT | Abracon晶振 | ABLS2 | MHz Crystal | 25MHz | HC49/US |
| ABLS2-27.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 27MHz | HC49/US |
| ABLS2-19.6608MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 19.6608MHz | HC49/US |
| ABLS2-14.31818MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 14.31818MHz | HC49/US |
| ABLS2-33.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 33MHz | HC49/US |
| ABLS2-14.7456MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 14.7456MHz | HC49/US |
| ABLS2-24.576MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 24.576MHz | HC49/US |
| ABLS2-12.288MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 12.288MHz | HC49/US |
| ABLS2-4.9152MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 4.9152MHz | HC49/US |
| ABLS2-30.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 30MHz | HC49/US |
| ABLS2-15.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 15MHz | HC49/US |
| ABLS2-40.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 40MHz | HC49/US |
| ABLS2-10.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 10MHz | HC49/US |
| ABLS2-11.059MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 11.059MHz | HC49/US |
| ABLS2-11.2896MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 11.2896MHz | HC49/US |
| ABLS2-12.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 12MHz | HC49/US |
| ABLS2-12.288MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 12.288MHz | HC49/US |
| ABLS2-13.560MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 13.56MHz | HC49/US |
| ABLS2-14.31818MHZ-B4Y-T | SMD晶振 | ABLS2 | MHz Crystal | 14.31818MHz | HC49/US |
| ABLS2-14.7456MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 14.7456MHz | HC49/US |
| ABLS2-15.360MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 15.36MHz | HC49/US |
| ABLS2-16.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 16MHz | HC49/US |
| ABLS2-16.384MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 16.384MHz | HC49/US |
| ABLS2-18.432MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 18.432MHz | HC49/US |
| ABLS2-19.200MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 19.2MHz | HC49/US |
| ABLS2-20.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 20MHz | HC49/US |
| ABLS2-24.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 24MHz | HC49/US |
| ABLS2-24.576MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 24.576MHz | HC49/US |
| ABLS2-25.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 25MHz | HC49/US |
| ABLS2-26.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 26MHz | HC49/US |
| ABLS2-27.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 27MHz | HC49/US |
| ABLS2-28.63636MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 28.63636MHz | HC49/US |
| ABLS2-3.579545MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 3.579545MHz | HC49/US |
| ABLS2-3.6864MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 3.6864MHz | HC49/US |
| ABLS2-30.000MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 30MHz | HC49/US |
| ABLS2-35.328MHZ-B4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 35.328MHz | HC49/US |
