EA1620显示器晶振,Ecliptek超小型晶振,EA1620MA12-20.000M TR四脚晶体

频率：20MHZ

尺寸：2016mm

EA1620显示器晶振,Ecliptek超小型晶振,EA1620MA12-20.000M TR四脚晶体，美国Ecliptek晶振公司，小体积晶振，高品质晶振，EA1620系列，EA1620MA12-20.000M TR晶振，电脑晶振，收音机晶振，通讯设备晶振，医疗设备晶振，电话机晶振，电脑晶振，智能手机晶振，蓝牙设备晶振，高端晶振无源晶振，计算机晶振，智能家具，美国晶振，进口晶振，2016晶振，四脚晶振，通讯设备晶振，医疗设备晶振，电话机晶振，蓝牙设备晶振，欧美进口晶振，超小型晶振，石英晶振，胎压检测器晶振，汽车晶振，低损耗晶振。

订购热线：0755-27838351

EA1620显示器晶振,Ecliptek超小型晶振,EA1620MA12-20.000M TR四脚晶体，美国Ecliptek晶振公司，小体积晶振，高品质晶振，EA1620系列，EA1620MA12-20.000M TR晶振，电脑晶振，收音机晶振，通讯设备晶振，医疗设备晶振，电话机晶振，电脑晶振，智能手机晶振，蓝牙设备晶振，高端晶振无源晶振，计算机晶振，智能家具，美国晶振，进口晶振，2016晶振，四脚晶振，通讯设备晶振，医疗设备晶振，电话机晶振，蓝牙设备晶振，欧美进口晶振，超小型晶振，石英晶振，胎压检测器晶振，汽车晶振，低损耗晶振。

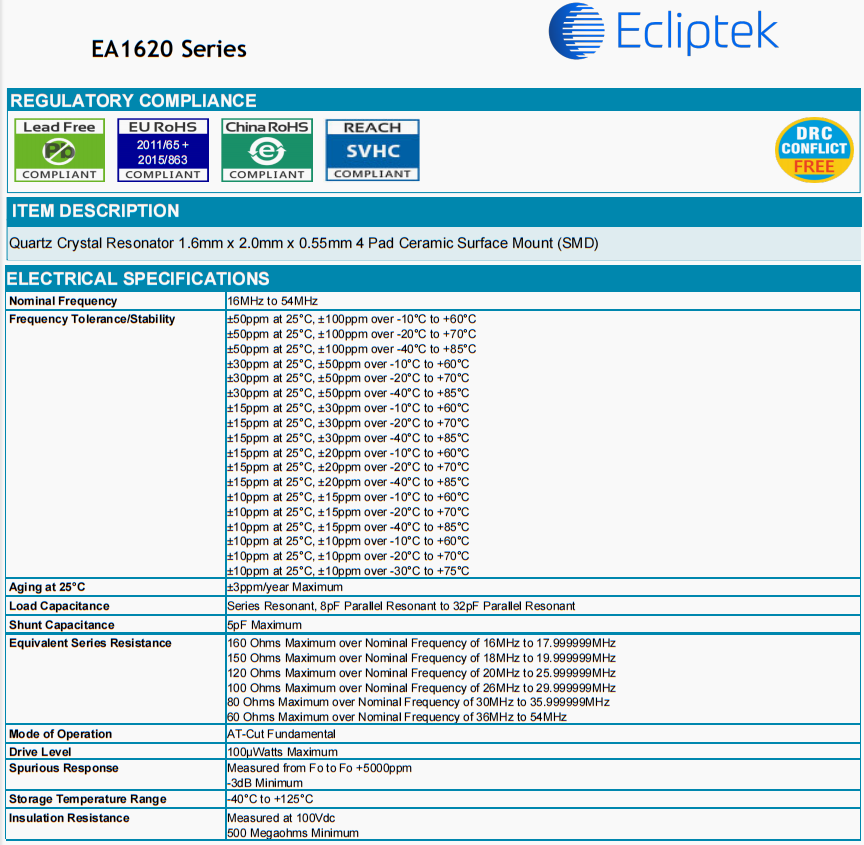

EA1620显示器晶振,Ecliptek超小型晶振,EA1620MA12-20.000M TR四脚晶体

标称频率	16MHz to 54MHz
频率容差/稳定度	±50ppm at 25°C, ±100ppm over -10°C to +60°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over -10°C to +60°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -10°C to +60°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over -10°C to +60°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over -10°C to +60°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±10ppm at 25°C, ±10ppm over -10°C to +60°C ±10ppm at 25°C, ±10ppm over -20°C to +70°C ±10ppm at 25°C, ±10ppm over -30°C to +75°C
老化	±3ppm/year Maximum
负载电容	Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant
分流电容	5pF Maximum
等效串联电阻	160 Ohms Maximum over Nominal Frequency of 16MHz to 17.999999MHz 150 Ohms Maximum over Nominal Frequency of 18MHz to 19.999999MHz 120 Ohms Maximum over Nominal Frequency of 20MHz to 25.999999MHz 100 Ohms Maximum over Nominal Frequency of 26MHz to 29.999999MHz 80 Ohms Maximum over Nominal Frequency of 30MHz to 35.999999MHz 60 Ohms Maximum over Nominal Frequency of 36MHz to 54MHz
工作模式	AT-Cut Fundamental
驱动电平	100µWatts Maximum
杂散响应	Measured from Fo to Fo +5000ppm -3dB Minimum
储存温度范围	-40°C to +125°C
绝缘电阻	Measured at 100Vdc 500 Megaohms Minimum

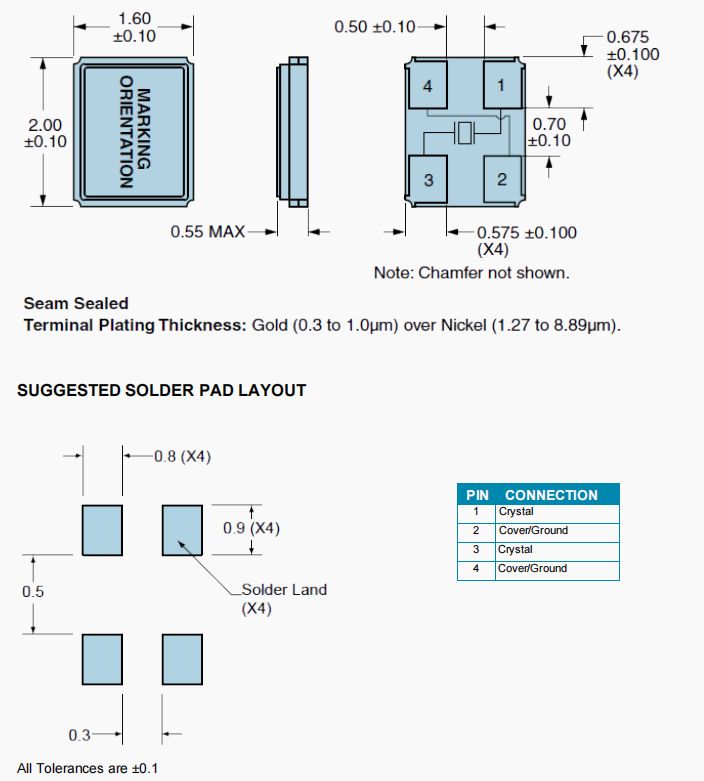

EA1620显示器晶振,Ecliptek超小型晶振,EA1620MA12-20.000M TR四脚晶体

EA1620

编码	品牌	型号	频率	频率稳定度	频率容差	负载电容
E1SAA12-24.000M	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	12 pF
E1SAA12-24.000M TR	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	12 pF
E1SAA12-30.000M TR	Ecliptek	E1S	30 MHz	±100ppm	±50ppm	12 pF
E1SAA18-12.000M	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	18 pF
E1SAA18-16.000M TR	Ecliptek	E1S	16 MHz	±100ppm	±50ppm	18 pF
E1SAA18-24.000M TR	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	18 pF
E1SAA18-25.000M TR	Ecliptek	E1S	25 MHz	±100ppm	±50ppm	18 pF
E1SAA20-5.000M TR	Ecliptek	E1S	5 MHz	±100ppm	±50ppm	20 pF
E1SBA18-16.000M TR	Ecliptek	E1S	16 MHz	±100ppm	±50ppm	18 pF
E1SBA18-25.000M TR	Ecliptek	E1S	25 MHz	±100ppm	±50ppm	18 pF
E1SBA18-27.000M TR	Ecliptek	E1S	27 MHz	±100ppm	±50ppm	18 pF
E1SBA18-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±100ppm	±50ppm	18 pF
E1SBA18-7.3728M TR	Ecliptek	E1S	7.3728 MHz	±100ppm	±50ppm	18 pF
E1SBA18-8.000M TR	Ecliptek	E1S	8 MHz	±100ppm	±50ppm	18 pF
E1SBA20-12.000M	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	20 pF
E1SBA20-12.000M TR	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	20 pF
E1SCA12-24.000M	Ecliptek	E1S	24 MHz	±100ppm	±50ppm	12 pF
E1SCA12-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±100ppm	±50ppm	12 pF
E1SCA18-14.7456M TR	Ecliptek	E1S	14.7456 MHz	±100ppm	±50ppm	18 pF
E1SCA18-20.000M TR	Ecliptek	E1S	20 MHz	±100ppm	±50ppm	18 pF
E1SCA18-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±100ppm	±50ppm	18 pF
E1SCA18-4.000M TR	Ecliptek	E1S	4 MHz	±100ppm	±50ppm	18 pF
E1SCA18-7.3728M TR	Ecliptek	E1S	7.3728 MHz	±100ppm	±50ppm	18 pF
E1SCA18-8.000M TR	Ecliptek	E1S	8 MHz	±100ppm	±50ppm	18 pF
E1SCA32-12.000M	Ecliptek	E1S	12 MHz	±100ppm	±50ppm	32 pF
E1SDA12-25.000M TR	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	12 pF
E1SDA18-24.576M	Ecliptek	E1S	24.576 MHz	±50ppm	±30ppm	18 pF
E1SDA18-25.000M TR	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	18 pF
E1SEA18-12.000M TR	Ecliptek	E1S	12 MHz	±50ppm	±30ppm	18 pF
E1SEA18-25.000M	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	18 pF
E1SEA18-28.6363M TR	Ecliptek	E1S	28.6363 MHz	±50ppm	±30ppm	18 pF
E1SEA18-3.6864M	Ecliptek	E1S	3.6864 MHz	±50ppm	±30ppm	18 pF
E1SEA18-4.2944M TR	Ecliptek	E1S	4.2944 MHz	±50ppm	±30ppm	18 pF
E1SEA20-25.000M	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	20 pF
E1SEA20-4.000M TR	Ecliptek	E1S	4 MHz	±50ppm	±30ppm	20 pF
E1SEA20-8.000M	Ecliptek	E1S	8 MHz	±50ppm	±30ppm	20 pF
E1SEA20-8.000M TR	Ecliptek	E1S	8 MHz	±50ppm	±30ppm	20 pF
E1SEA40-8.704M TR	Ecliptek	E1S	8.704 MHz	±50ppm	±30ppm	40 pF
E1SFA12-3.6864M TR	Ecliptek	E1S	3.6864 MHz	±50ppm	±30ppm	12 pF
E1SFA16-6.290M TR	Ecliptek	E1S	6.29 MHz	±50ppm	±30ppm	16 pF
E1SFA18-12.000M TR	Ecliptek	E1S	12 MHz	±50ppm	±30ppm	18 pF
E1SFA18-14.31818M TR	Ecliptek	E1S	14.31818 MHz	±50ppm	±30ppm	18 pF
E1SFA18-25.000M TR	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	18 pF
E1SFA18-3.6864M	Ecliptek	E1S	3.6864 MHz	±50ppm	±30ppm	18 pF
E1SFA18-7.3728M TR	Ecliptek	E1S	7.3728 MHz	±50ppm	±30ppm	18 pF
E1SFA18-8.000M TR	Ecliptek	E1S	8 MHz	±50ppm	±30ppm	18 pF
E1SFA20-25.000M	Ecliptek	E1S	25 MHz	±50ppm	±30ppm	20 pF
E1SFAS-24.000M TR	Ecliptek	E1S	24 MHz	±50ppm	±30ppm
E1SGA18-14.7456M TR	Ecliptek	E1S	14.7456 MHz	±30ppm	±15ppm	18 pF
E1SGA18-25.000M TR	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	18 pF
E1SHA10-29.950M TR	Ecliptek	E1S	29.95 MHz	±30ppm	±15ppm	10 pF
E1SHA20-25.000M TR	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	20 pF
E1SJA16-14.31818M	Ecliptek	E1S	14.31818 MHz	±30ppm	±15ppm	16 pF
E1SJA18-24.000M TR	Ecliptek	E1S	24 MHz	±30ppm	±15ppm	18 pF
E1SJA18-25.000M TR	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	18 pF
E1SJA18-4.000M TR	Ecliptek	E1S	4 MHz	±30ppm	±15ppm	18 pF
E1SJA20-25.000M	Ecliptek	E1S	25 MHz	±30ppm	±15ppm	20 pF
E1SMA14-25.000M	Ecliptek	E1S	25 MHz	±20ppm	±15ppm	14 pF
E1SMA18-25.000M	Ecliptek	E1S	25 MHz	±20ppm	±15ppm	18 pF
E1SMA18-27.000M	Ecliptek	E1S	27 MHz	±20ppm	±15ppm	18 pF
E1SMA18-27.000M TR	Ecliptek	E1S	27 MHz	±20ppm	±15ppm	18 pF
E1SNA16-25.000M TR	Ecliptek	E1S	25 MHz	±15ppm	±10ppm	16 pF
E1SNA18-25.000M TR	Ecliptek	E1S	25 MHz	±15ppm	±10ppm	18 pF
E1SSA18-5.000M TR	Ecliptek	E1S	5 MHz	±50ppm	±30ppm	18 pF
E1SSA20-10.000M	Ecliptek	E1S	10 MHz	±50ppm	±30ppm	20 pF
E1SSA20-10.000M TR	Ecliptek	E1S	10 MHz	±50ppm	±30ppm	18 pF
E1WSDA12-32.768K	Ecliptek	E1WS	32.768 kHz		±20ppm	12.5 pF
E1WSDA12-32.768K TR	Ecliptek	E1WS	32.768 kHz		±20ppm	12.5 pF
EA1216MA08-25.000M TR	Ecliptek	EA1216	25 MHz	±20ppm	±15ppm	8 pF
EA1620MA10-25.000M TR	Ecliptek	EA1620	25 MHz	±20ppm	±15ppm	10 pF
EA3560LA20-25.000M TR	Ecliptek	EA3560	25 MHz	±20ppm	±15ppm	20 pF
EA5070CA12-24.000M TR	Ecliptek	EA5070	24 MHz	±100ppm	±50ppm	12 pF
EA5070CA18-20.000M TR	Ecliptek	EA5070	20 MHz	±100ppm	±50ppm	18 pF
EA5070CAS-8.000M TR	Ecliptek	EA5070	8 MHz	±100ppm	±50ppm	8 pF
EA5070FA16-22.5792M TR	Ecliptek	EA5070	22.5792 MHz	±50ppm	±30ppm	16 pF
EA5070FA18-10.000M	Ecliptek	EA5070	10 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-14.31818M	Ecliptek	EA5070	14.31818 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-24.000M TR	Ecliptek	EA5070	24 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-25.000M TR	Ecliptek	EA5070	25 MHz	±50ppm	±30ppm	18 pF
EA5070FA18-27.000M TR	Ecliptek	EA5070	27 MHz	±50ppm	±30ppm	18 pF
EA5070FA20-7.3728M	Ecliptek	EA5070	7.3728 MHz	±50ppm	±30ppm	20 pF
EA5070GA18-25.000625M	Ecliptek	EA5070	25.000625 MHz	±30ppm	±15ppm	18 pF
EA5070GA18-25.000625M TR	Ecliptek	EA5070	25.000625 MHz	±30ppm	±15ppm	18 pF
EA5070GA20-7.3728M	Ecliptek	EA5070	7.3728 MHz	±30ppm	±15ppm	20 pF
EA5070JA18-25.000625M TR	Ecliptek	EA5070	25.000625 MHz	±30ppm	±15ppm	18 pF
EA5070JA20-14.31818M TR	Ecliptek	EA5070	14.31818 MHz	±30ppm	±15ppm	20 pF
EA5070JA20-6.000M TR	Ecliptek	EA5070	6 MHz	±30ppm	±15ppm	20 pF
EA5070PA20-8.000M	Ecliptek	EA5070	8 MHz	±15ppm	±10ppm	20 pF
EB2025YA10-25.000M TR	Ecliptek	EB2025	25 MHz	±50ppm	±30ppm	10 pF
EB3250AYA08-25.000M TR	Ecliptek	EB3250A	25 MHz	±50ppm	±30ppm	8 pF
EB8WSDX12-32.768K TR	Ecliptek	EB8WS	32.768 kHz		±20ppm	12.5 pF
