EC2600ETTS-33.000M,7050mm,Ecliptek有源晶振,33MHz

频率：33.000MHz

尺寸：7.0x5.0mm

EC2600ETTS-33.000M,7050mm,Ecliptek有源晶振,33MHz，美国进口晶振，Ecliptek晶振，日蚀晶振，型号：EC26系列SMD晶振，编码为：EC2600ETTS-33.000M，频率：33.000MHz，电压：3.3V，频率稳定性：±100ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，石英晶振，7050晶振，CMOS输出晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高品质，高性能，耐热及耐环境等特点。应用于：车载晶振，通讯设备晶振，GPS定位晶振，无线蓝牙晶振，物联网等应用。

订购热线：0755-27838351

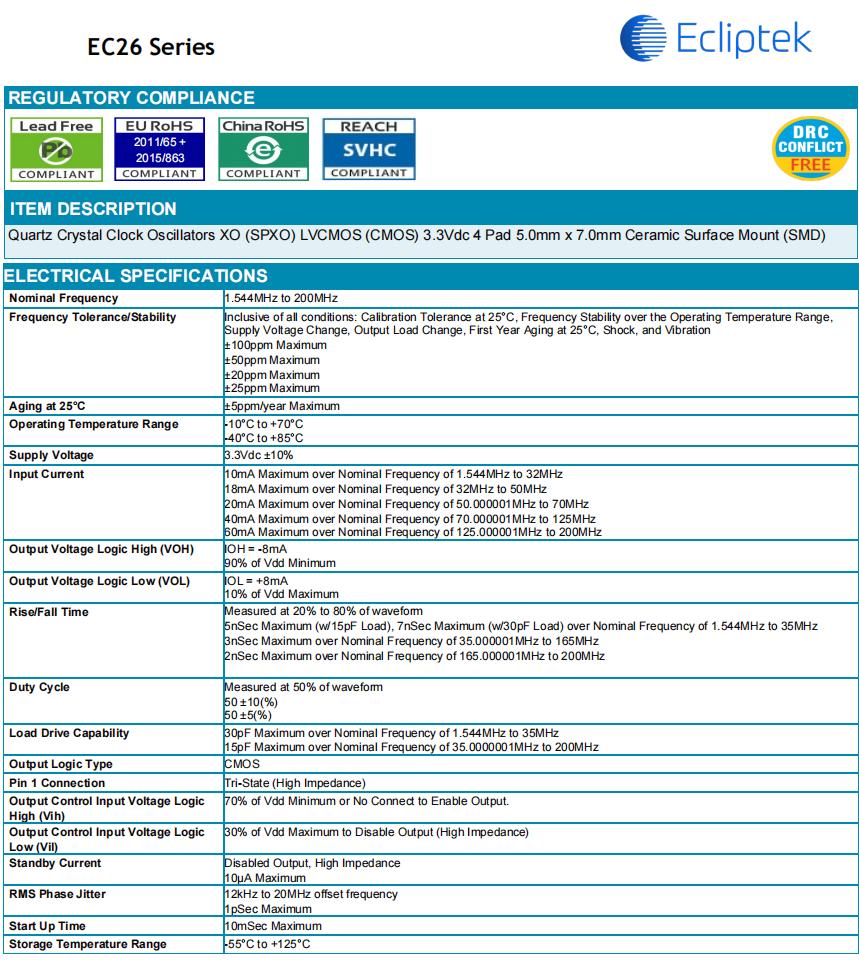

EC2600ETTS-33.000M,7050mm,Ecliptek有源晶振,33MHz,参数表

Nominal Frequency			33.000 MHz
Frequency Tolerance/Stability			Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±50ppm Maximum ±20ppm Maximum ±25ppm Maximum
Aging at 25°C			±5ppm/year Maximum
Operating Temperature Range			- 10°C to +70°C -40°C to +85°C
Supply Voltage			3.3Vdc ±10%
Input Current			10mA Maximum over Nominal Frequency of 1.544MHz to 32MHz 18mA Maximum over Nominal Frequency of 32MHz to 50MHz 20mA Maximum over Nominal Frequency of 50.000001MHz to 70MHz 40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz 60mA Maximum over Nominal Frequency of 125.000001MHz to 200MHz
Output Voltage Logic High (VOH)			IOH = -8mA 90% of Vdd Minimum
Output Voltage Logic Low (VOL)			IOL = +8mA 10% of Vdd Maximum
Rise/Fall Time			Measured at 20% to 80% of waveform 5nSec Maximum (w/15pF Load), 7nSec Maximum (w/30pF Load) over Nominal Frequency of 1.544MHz to 35MHz 3nSec Maximum over Nominal Frequency of 35.000001MHz to 165MHz 2nSec Maximum over Nominal Frequency of 165.000001MHz to 200MHz
Duty Cycle			Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability			30pF Maximum over Nominal Frequency of 1.544MHz to 35MHz 15pF Maximum over Nominal Frequency of 35.0000001MHz to 200MHz
Output Logic Type			CMOS
Pin 1 Connection			Tri-State (High Impedance)
Output Control Input Voltage Logic High (Vih)			70% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic Low (Vil)			30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current			Disabled Output, High Impedance 10µA Maximum
RMS Phase Jitter			12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time			10mSec Maximum
Storage Temperature Range			-55°C to +125°C

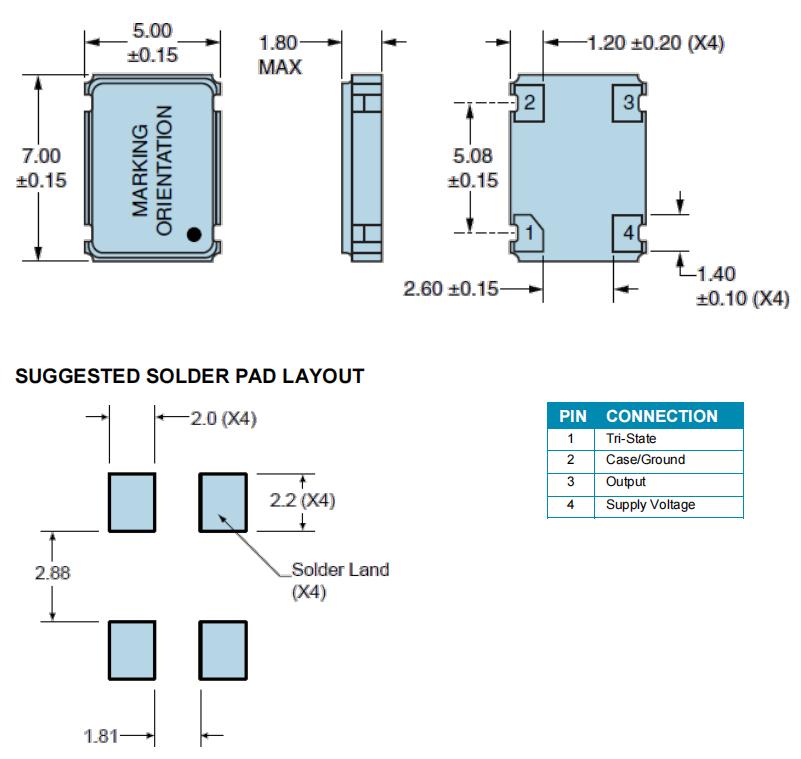

EC2600ETTS-33.000M,7050mm,Ecliptek有源晶振,33MHz,尺寸图

进口有源晶振	品牌	型号	频率	长	宽	高
EC2600ETTS-14.318M	Ecliptek晶振	EC26	14.318 MHz	7mm	5mm	1.6mm
EC2600ETTS-14.7456M	Ecliptek晶振	EC26	14.7456 MHz	7mm	5mm	1.6mm
EC2600ETTS-14.7456M TR	Ecliptek晶振	EC26	14.7456 MHz	7mm	5mm	1.6mm
EC2600ETTS-16.000M	Ecliptek晶振	EC26	16 MHz	7mm	5mm	1.6mm
EC2600ETTS-16.384M TR	Ecliptek晶振	EC26	16.384 MHz	7mm	5mm	1.6mm
EC2600ETTS-33.000M	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2600ETTS-33.000M TR	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2600ETTS-66.666M TR	Ecliptek晶振	EC26	66.666 MHz	7mm	5mm	1.6mm
EC2600ETTTS-10.000M	Ecliptek晶振	EC26	10 MHz	7mm	5mm	1.6mm
EC2600ETTTS-12.000M TR	Ecliptek晶振	EC26	12 MHz	7mm	5mm	1.6mm
EC2600ETTTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2600ETTTS-64.000M	Ecliptek晶振	EC26	64 MHz	7mm	5mm	1.6mm
EC2600ETTTS-7.3728M	Ecliptek晶振	EC26	7.3728 MHz	7mm	5mm	1.6mm
EC2600TS-1.8432M TR	Ecliptek晶振	EC26	1.8432 MHz	7mm	5mm	1.6mm
EC2600TS-11.0592M TR	Ecliptek晶振	EC26	11.0592 MHz	7mm	5mm	1.6mm
EC2600TS-120.000M	Ecliptek晶振	EC26	120 MHz	7mm	5mm	1.6mm
EC2600TS-120.000M TR	Ecliptek晶振	EC26	120 MHz	7mm	5mm	1.6mm
EC2600TS-15.000M TR	Ecliptek晶振	EC26	15 MHz	7mm	5mm	1.6mm
EC2600TS-19.440M	Ecliptek晶振	EC26	19.44 MHz	7mm	5mm	1.6mm
EC2600TS-200.000M TR	Ecliptek晶振	EC26	200 MHz	7mm	5mm	1.6mm
EC2600TS-24.576M TR	Ecliptek晶振	EC26	24.576 MHz	7mm	5mm	1.6mm
EC2600TS-25.000M	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2600TS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2600TS-33.000M TR	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2600TS-40.000M	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2600TS-40.000M TR	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2600TS-48.000M TR	Ecliptek晶振	EC26	48 MHz	7mm	5mm	1.6mm
EC2600TS-5.000M TR	Ecliptek晶振	EC26	5 MHz	7mm	5mm	1.6mm
EC2600TS-50.000M	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2600TS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2600TS-66.000M TR	Ecliptek晶振	EC26	66 MHz	7mm	5mm	1.6mm
