X1M0004110020/156.253906MHz/MG7050EAN/7050mm/LV-PECL
频率：156.253906MHz
尺寸：7.0x5.0mm
X1M0004110020/156.253906MHz/MG7050EAN/7050mm/LV-PECL，日本进口晶振，EPSON爱普生晶振型号：MG7050EAN，编码为：X1M0004110020，频率：156.253906MHz，小体积晶振尺寸7.0x5.0mm封装，14脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器，LV-PECL输出差分晶体振荡器，石英晶振，具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低损耗，低相位噪声等特点。适用于PCI Express等参考时钟。应用于：通讯设备，无线蓝牙模块，汽车电子晶振，车载导航仪，安防设备，GbE、光纤通道、SAS、PCI表达，服务器、存储、路由器/交换机、无线局域网、OTN等。

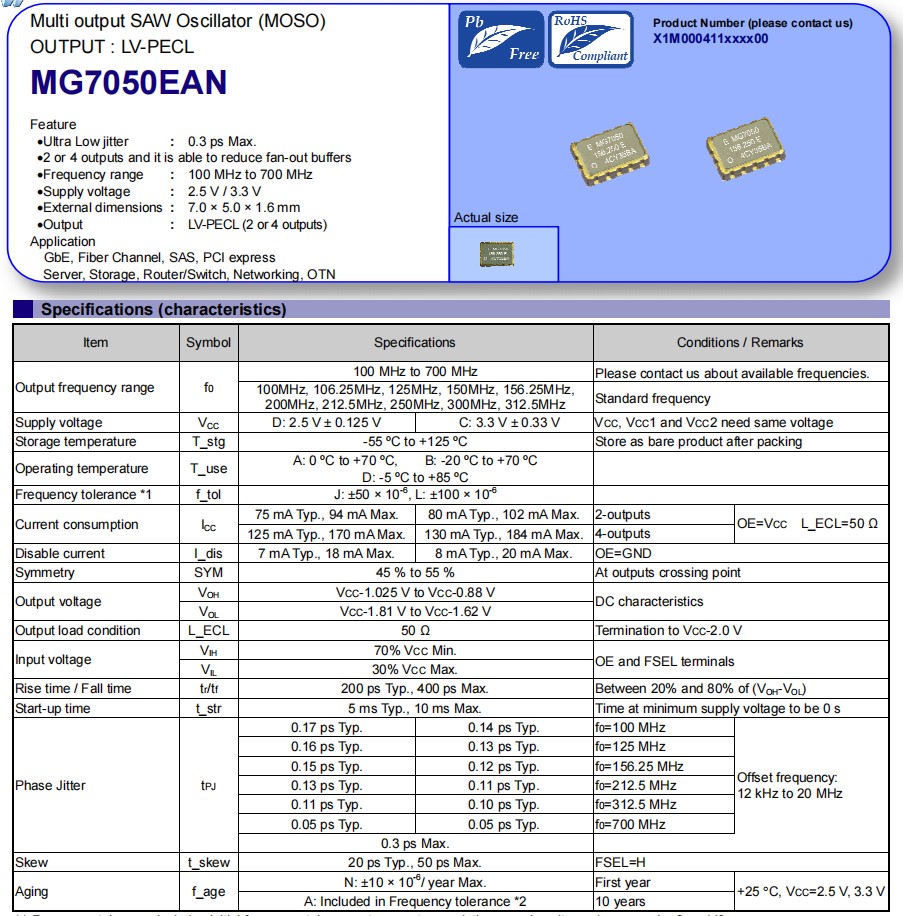

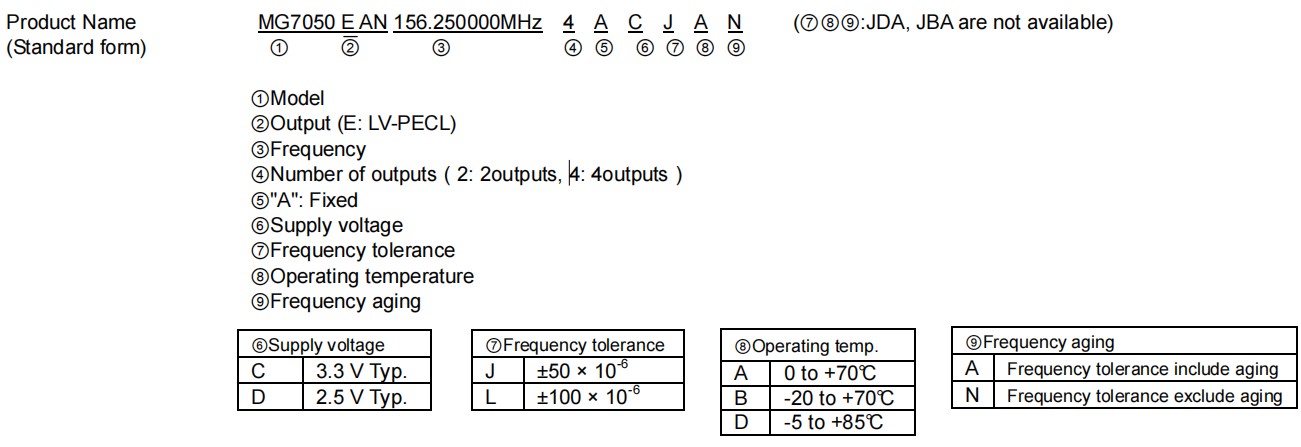

X1M0004110020/156.253906MHz/MG7050EAN/7050mm/LV-PECL，参数图
Item
Symbol
MG7050EAN 规格说明
Conditions / Remarks
Output frequency range
f0
100 MHz to 700 MHz
Please contact us about available frequencies.
100MHz , 106.25MHz , 125MHz , 150MHz
Standard frequency
156.25MHz , 200MHz , 212.5MHz , 250MHz
300MHz , 312.5MHz
Supply voltage
VCC
D : 2.5V ± 0.125V
C : 3.3V ± 0.33V
VCC1 and VCC2 need same voltage
Storage temperature
T_stg
-55°C to +125°C
Store as bare product after packing
Operating temperature
T_use
A : 0°C to +70°C
B : -20°C to +70°C
D : -5°C to +85°C
Frequency tolerance *1
f_tol
J : ± 50 × 10-6
L : ±100 × 10-6
Current consumption
ICC
75 mA Typ.,
80 mA Typ.,
2-outputs
OE = VCC
94 mA Max.
102 mA Max.
L_ECL = 50 Ω
125 mA Typ.,
130 mA Typ.,
4-outputs
170 mA Max.
184 mA Max.
Disable current
I_dis
7mA Typ.
OE=GND
18mA Max.
Symmetry
SYM
45% to 55%
At outputs crossing point
Output voltage
VOH
VCC - 1.025V to VCC - 0.88 V
DC characteristics
VOL
VCC - 1.81V to VCC - 1.62 V
Output load condition
L_ECL
50 Ω
Termination to VCC - 2.0 V
Input voltage
VIH
70% VCC Min.
OE and FSEL terminals
VIL
30% VCC Max.
Rise time / Fall time
tr / tf
200 ps Typ., 400 ps Max.
Between 20% and 80% of ( VOH - VOL )
Start-up time
t_str
5 ms Typ. , 10 ms Max.
Time at minimum supply voltage to be 0 s
Phase Jitter
tPJ
0.17 ps Typ.
0.14 ps Typ.
f0 = 100 MHz
Offset frequency:
0.16 ps Typ.
0.13 ps Typ.
f0 = 125 MHz
12kHz to 20MHz
0.15 ps Typ.
0.12 ps Typ.
f0 = 156.25 MHz
0.13 ps Typ.
0.11 ps Typ.
f0 = 212.5 MHz
0.11 ps Typ.
0.10 ps Typ.
f0 = 312.5 MHz
0.05 ps Typ.
0.05 ps Typ.
f0 = 700 MHz
0.3 ps Max.
Skew
t_skew
20ps Typ., 50ps Max.
FSEL = H
Aging
f_aging
N : ± 10 × 10-6 / year Max.
First year
+25°C,
A : Included in Frequency tolerance *2
10 years
VCC = 2.5V , 3.3V
X1M0004110020/156.253906MHz/MG7050EAN/7050mm/LV-PECL，尺寸图
X1M0004110020/156.253906MHz/MG7050EAN/7050mm/LV-PECL，特点及应用
Features :
Ultra Low jitter : 0.3 ps Max.
2 or 4 outputs and it is able to reduce fan-out buffers
Frequency range : 100 MHz to 700 MHz
Supply voltage : 2.5V / 3.3V
External dimensions : 7.0×5.0×1.6mm
Output : LV-PECL (2 or 4 outputs)
Pb free.
Complies with EU RoHS directive.
Applications ：
GbE, Fiber Channel, SAS, PCI express
Server, Storage, Router/Switch,
Networking, OTN etc.
编码
型号
频率
贴片差分晶振
输出方式
电源电压
X1M0004110002
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110005
MG7050EAN
150.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110006
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110007
MG7050EAN
669.325580 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110008
MG7050EAN
150.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110009
MG7050EAN
150.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110010
MG7050EAN
150.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110011
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110012
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110013
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.375 to 2.625 V
X1M0004110014
MG7050EAN
100.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110015
MG7050EAN
125.000000 MHz
7050晶振
LV-PECL
2.970 to 3.630 V
X1M0004110016
MG7050EAN
200.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110017
MG7050EAN
100.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110018
MG7050EAN
125.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110019
MG7050EAN
200.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110020
MG7050EAN
156.253906 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.375 to 2.625 V
X1M0004110021
MG7050EAN
100.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.375 to 2.625 V
X1M0004110022
MG7050EAN
125.000000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.375 to 2.625 V
X1M0004110023
MG7050EAN
156.253906 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110024
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
X1M0004110025
MG7050EAN
156.250000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.375 to 2.625 V
X1M0004110026
MG7050EAN
312.500000 MHz
7.00 x 5.00 x 1.60 mm
LV-PECL
2.970 to 3.630 V
