高可靠性晶体XR20系列接缝密封SMD晶振,XR20H3J26.0000A2F,无源晶振,ECERA石英晶体

返回列表 来源：精工富士 查看手机网址
扫一扫!高可靠性晶体XR20系列接缝密封SMD晶振,XR20H3J26.0000A2F,无源晶振,ECERA石英晶体扫一扫!
 浏览：- 发布日期：2022-07-05 08:51:11【大 中 小】
分享到：

我们提供全面的石英晶体谐振器产品组合。我们广泛的行业标准封装选择包括陶瓷表面贴装、HC-49/U、金属表面贴装、管状和塑料模制。这些晶体在电子应用中充当主要组件。

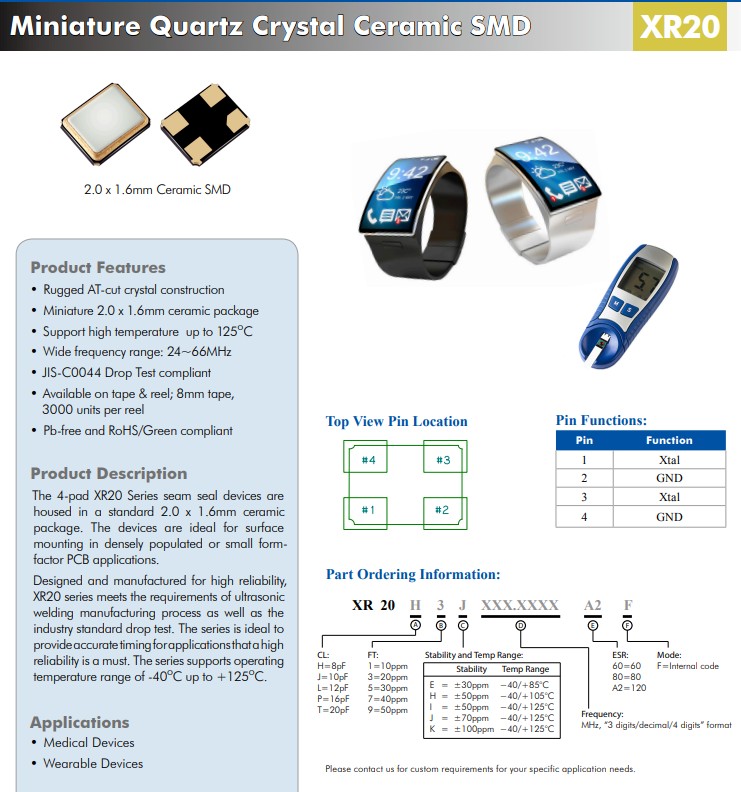

XR20系列接缝密封装置包括封装在标准的2.0x1.6mm毫米陶瓷中包裹。这些设备是地面的理想选择，安装在人口密集或小尺寸PCB应用中。为高可靠性而设计和制造，XR20系列符合超声波的要求，焊接制造过程以及行业标准跌落测试。高可靠性晶体XR20系列接缝密封SMD晶振，该系列非常适合为高性能的应用提供精确的定时可靠性是必须的。该系列支持操作温度范围为-40℃至+125℃.

产品特性：
坚固的AT切割水晶结构
微型2.0x1.6mm毫米陶瓷封装
支持高达125℃的高温
宽频率范围:24～66MHz无源晶振
符合JIS-C0044跌落测试
提供磁带和卷轴；8毫米胶带，
每卷3000件
无铅且符合RoHS/Green标准

应用程序：医疗设备 可穿戴设备

高可靠性晶体XR20系列接缝密封SMD晶振,XR20H3J26.0000A2F,无源晶振,ECERA石英晶体

Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Frequency 频率 Frequency Stability频率稳定度 Operating Temperature     工作温度
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C

1

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
ProductSeries XR20
Family Xtals/Crystals
Legacy PN None
Freq Range (MHz) 24 to 66
Package Type Ceramic Seam
Package Size (mm) 2.0 x 1.6 x 0.45
Pads 4
NotRecommended 0

高可靠性晶体XR20系列接缝密封SMD晶振,XR20H3J26.0000A2F,无源晶振,ECERA石英晶体

产品参数：

合规性（仅汽车支持PPAP）标准
产品系列 XR20
家庭 Xtals/石英晶体
旧版 PN 没有任何
频率范围 24MHz至66MHz
包装类型 陶瓷缝
包装尺寸2.0x1.6x0.45mm
垫 4

不建议 0

FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
高可靠性晶体XR20系列接缝密封SMD晶振,XR20H3J26.0000A2F,无源晶振,ECERA石英晶体

频率范围:24.0000MHz至66.0000MHz(基波)
25°C±3°C时的特性:频率校准容差:10ppm至50ppm
负载电容:7至32pF或串联谐振
有效串联电阻(ESR):
24.0000MHz至29.9999MHz:最大120ω
30.0000MHz至59.9999MHz:最大80ω
60.0000MHz至66.0000MHz:最大60ω
驱动电平:典型值10W。(最大100瓦)
并联电容:最大3pF
工作温度:–40至+85℃或-40至+105℃或-40至+125℃
存储温度:–55至+125℃耐高温晶振
温度稳定性:30ppm至100ppm
在25°C下老化，第一年:最大3ppm
离心力:美国汽车工程师学会j 2657(1500克)
回流温度:最高260°C，最长10秒
跌落测试:JIS-C0044
机械:
震惊:JESD22-B104
可焊性:J-STD-002
振动:JESD22-B103
耐焊接热::J-STD-020(SMD)
环境:
总测试泄漏:JESD22-A109
精细泄漏测试:MIL STD 883 M1014
防潮性:JESD22-A101
绝缘电阻:最小500mω(100 VDC)
温度循环:JESD22-A104
高温暴露:JESD22-A103
高温工作寿命:JESD22-A108

HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
DIODES百利通亚陶晶振所生产的石英晶振,贴片晶振,有源晶体振荡器,压电石英晶体元器件、压电石英晶体、有源晶体广泛应用于智能设备,汽车电子,无线通讯,网络通信,精密仪器,GPS卫星,网络控制器,全球GPS定位系统等领域.工程、销售、仓储和物流办事处设在台北,香港、曼彻斯特、上海、深圳、中国、韩国、慕尼黑、德国、以及世界各地的支持办事处.高可靠性晶体XR20系列接缝密封SMD晶振,XR20H3J26.0000A2F,无源晶振,ECERA石英晶体
