DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振
频率：75MHz
尺寸：7.0×5.0mm
DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振,DSC1105进口晶振,Microchip石英贴片晶体,DSC1105AL3-075.0000T晶振,7050mm晶振,低相位抖动晶振,有源晶振,频率75MHz,电压3.3V,频率稳定性20ppm,工作温度-40~105°C,耐高温晶振,低功耗晶振,6G通信晶振,PCI Express晶振,显示端口晶振,存储区域网络晶振,光纤通道晶振,SDI视频和监控晶振.
订购热线：0755-27838351
DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振,DSC1105进口晶振,Microchip石英贴片晶体,DSC1105AL3-075.0000T晶振,7050mm晶振,低相位抖动晶振,有源晶振,频率75MHz,电压3.3V,频率稳定性20ppm,工作温度-40~105°C,耐高温晶振,低功耗晶振,6G通信晶振,PCI Express晶振,显示端口晶振,存储区域网络晶振,光纤通道晶振,SDI视频和监控晶振.
DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振特点：
•降低EMI的低驱动强度
•低相位RMS抖动:< 1 ps(典型值)
•高稳定性:10 ppm、20 ppm、25 ppm、 50 ppm
•宽温度范围:
-汽车:–55°C至+125°C
-Ext.工业:–40℃至+105℃
-工业级:–40℃至+85℃ -
-商用:–20℃至+70℃
•高电源噪声抑制:–50 dBc
•宽频率范围:2.3兆赫至100兆赫
•小型工业标准尺寸
- 2.5x 2.0mm、3.2x 2.5mm、5.0 x 3.2mm和7.0x 5.0mm
•出色的抗冲击和振动能力
-符合军用标准883
•高可靠性
-MTF比石英振荡器高20倍
•低电流消耗
•电源电压范围为2.25至3.6V
•待机和输出使能功能
•无铅且符合RoHS标准
DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振参数图
0.1 x VDDV Max
项目
规格说明
条件
额定频率
75MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
3.3V
储存温度
-40℃~+150℃
裸存
工作温度
-40℃~ +105℃
频率稳定度
±20ppm
所有温度范围
老化
±5ppm
1 year @ +25°C
电流
35mA Max
Output is enabled CL= 15 pF, F0 = 100 MHz
占空比
45%~55%
输出逻辑电平低（Vol）
I=±1.6mA
输出逻辑电平高（Voh）
0.9 x VDDV Min
起始时间
5ms Max
From 90% VDD to valid clock output, T = +25° C
输出上升下降时间
2.0ns Max
3.3V, CL=15pF; T=25°C 20%/80%*VDD
周期抖动
4ps RMS Max
FOUT = 100 MHz
积分相位噪声
0.3ps RMS Typ
200 kHz to 20 MHz @ 100 MHz
DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123AE2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123NL5-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX574BBD322M265 | Microchip Technology | MX57 | XO (Standard) | 322.265625MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-300.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 300MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI1-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-150.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI1-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-040.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-080.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 80MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AI2-064.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 64MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122NE1-025.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-156.2570 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.257MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-148.5000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX575ABC70M0000 | Microchip Technology | MX57 | XO (Standard) | 70MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX575ABB50M0000 | Microchip Technology | MX57 | XO (Standard) | 50MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573LBB148M500 | Microchip Technology | MX57 | XO (Standard) | 148.5MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573NBB311M040 | Microchip Technology | MX57 | XO (Standard) | 311.04MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573NBD311M040 | Microchip Technology | MX57 | XO (Standard) | 311.04MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| MX573NBA622M080 | Microchip Technology | MX57 | XO (Standard) | 622.08MHz | 2.375 V ~ 3.63 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-062.5000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-062.5000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-062.5000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE1-125.0000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE1-125.0000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE1-125.0000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AE2-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-040.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-040.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AI2-150.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122NI5-025.0020 | Microchip Technology | DSC1122 | MEMS (Silicon) | 25.002MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AL1-150.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AI5-025.0020 | Microchip Technology | DSC1122 | MEMS (Silicon) | 25.002MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL2-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-025.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AE1-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-014.3182 | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.3182MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.5761 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.5761MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-054.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-003.6864 | Microchip Technology | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-055.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 55MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1004AI2-001.0000 | Microchip Technology | DSC1004 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-064.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI1-033.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-001.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE2-002.0480 | Microchip Technology | DSC1001 | MEMS (Silicon) | 2.048MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-011.7000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 11.7MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-012.3667 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12.3667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-111.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 111MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-096.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 96MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-033.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-125.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NE1-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-033.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-060.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-033.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-020.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-006.1440 | Microchip Technology | DSC1001 | MEMS (Silicon) | 6.144MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AI2-033.3333 | Microchip Technology | DSC1033 | MEMS (Silicon) | 33.3333MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AI2-054.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 54MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-019.6608 | Microchip Technology | DSC1001 | MEMS (Silicon) | 19.6608MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI1-055.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 55.333MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-066.6670 | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.667MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-010.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-054.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI2-016.3840 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-032.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 32MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-033.3330 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-029.4912 | Microchip Technology | DSC1001 | MEMS (Silicon) | 29.4912MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC2-125.0025 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125.0025MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-148.5000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-148.5000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-148.5000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-001.8432 | Microchip Technology | DSC1001 | MEMS (Silicon) | 1.8432MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AL5-004.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-080.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 80MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-125.0060 | Microchip Technology | DSC1001 | MEMS (Silicon) | 125.006MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AI5-100.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 100MHz | 1.7 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-004.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI1-150.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AE2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1122AI2-106.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1123AI2-120.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 120MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-024.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-025.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-029.4912T | Microchip Technology | DSC1121 | MEMS (Silicon) | 29.4912MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-048.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 48MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-050.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-050.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NI2-018.4320 | Microchip Technology | DSC1121 | MEMS (Silicon) | 18.432MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-020.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AE5-007.6800 | Microchip Technology | DSC1101 | MEMS (Silicon) | 7.68MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AE5-040.6080 | Microchip Technology | DSC1101 | MEMS (Silicon) | 40.608MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-020.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-025.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI1-025.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI1-025.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-025.0000T | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AI1-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AE1-050.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-024.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 24MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE5-024.5760 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE5-024.5760T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-008.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AE1-024.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AE1-050.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-033.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC1-040.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 40MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1101AM2-004.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-016.6667 | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.6667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-016.6667T | Microchip Technology | DSC1001 | MEMS (Silicon) | 16.6667MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-024.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-033.3333T | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AC2-025.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-006.1440T | Microchip Technology | DSC1001 | MEMS (Silicon) | 6.144MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-014.3182T | Microchip Technology | DSC1001 | MEMS (Silicon) | 14.3182MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-025.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1001AE1-054.0000T | Microchip Technology | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1003AI2-050.0000T | Microchip Technology | DSC1003 | MEMS (Silicon) | 50MHz | 1.8 ~ 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1004AI2-040.0000T | Microchip Technology | DSC1004 | MEMS (Silicon) | 40MHz | 1.8 ~ 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AI2-008.0000T | Microchip Technology | DSC1033 | MEMS (Silicon) | 8MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1033AI2-033.3333T | Microchip Technology | DSC1033 | MEMS (Silicon) | 33.3333MHz | 3.3V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
精工富士晶振-康华尔正规渠道指定供应商
服务热线：0755-27838351
手机联系：138-2330-0879
Q Q联系：632862232
邮 箱：konuaer@163.com
地 址：广东深圳市宝安区宝安大道东95号浙商大厦1905

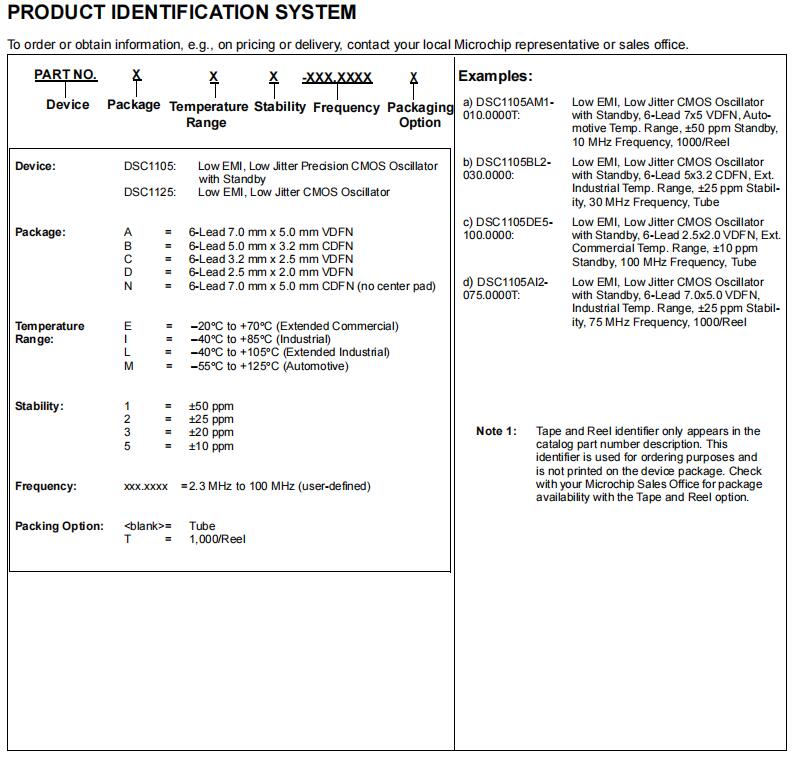

采购：DSC1105AL3-075.0000T,Microchip石英贴片晶体,6G通信晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- 317LB5C1250T,125MHz,7050mm,317系列SMD晶振,CTS通信晶振
- 317LB5C1250T,125MHz,7050mm,317系列SMD晶振,CTS通信晶振，美国进口晶振，CTS晶振，西迪斯晶振，型号：317系列晶振，编码为：317LB5C1250T，频率：125MHz，频率稳定性：±25ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器，VCXO晶振，压控晶振，HCMOS输出振荡器，CTS 317型是一款低成本、小尺寸、高性能的VCXO。M317采用最新的IC技术，再加上高频基晶体，具有优异的稳定性和低抖动/相位噪声性能。应用于：无线通信晶振，宽带接入晶振，基站应用晶振， 以太网/GbE/SyncE，数字视频，测试和测量等应用。
- SSR008192I3CHE-TC晶振,加高有源四脚晶振,汽车辅助驾驶晶振
- SSR008192I3CHE-TC晶振,加高有源四脚晶振,汽车辅助驾驶晶振，台湾HELE晶振公司，贴片石英晶振，有源晶振，7050晶振，超小型晶振，SMD晶振，低损耗晶振，高品质晶振，高精度晶振，汽车晶振，HSO751S晶振，进口晶振，耐热性晶振，SSR008192I3CHE-TC晶振，高稳定性晶振，6G无线应用晶振，射频应用晶振，物料网应用晶振，RFID应用晶振.特点:超小型贴片型晶体器件。精度高，可靠性好，耐热性好。适用于设计空间有限的智能手机应用程序、初始化无线模块设备、RFID应用程序和其他基于消费者的产品.
- GOLLEDGE高精度晶体,GXO-U108L/AI 50.0MHz晶振,汽车流媒体后视镜晶振
- GOLLEDGE高精度晶体,GXO-U108L/AI 50.0MHz晶振,汽车流媒体后视镜晶振，GOLLEDGE晶振，进口晶振，有源晶振，四脚晶振，石英晶振，贴片晶振，高品质晶振，高精度晶振，低损耗晶振，6G通讯设备晶振，无人机晶振，小尺寸晶振，7050晶振，光纤通道晶振。英国高利奇晶振公司，3.3V ，7x5mm振荡器，省电，节省库存的标准频率，启用/禁用三状态功能，省电功能(P & L型)。
康华尔产品中心
Product Center
精工晶振
富士晶振
雾化片
石英晶振
石英晶体振荡器
贴片晶振
32.768KHz晶振
欧美进口晶振
- KDS晶振
- 爱普生晶振
- NDK晶振
- 京瓷晶振
- 西铁城晶振
- 村田晶振
- 大河晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal
- 维管晶振
- ECS晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTime晶振
- IDT晶振
- Statek晶振
- Pletronics晶振
- ACT晶振
- MTI-Milliren晶振
- LiHom晶振
- 美国Rubyquartz晶振
- Oscilent晶振
- 日本纳卡晶振
- SHINSUNG晶振
- ITTI晶振
- SMI晶振
- PDI晶振
- C-TECH晶振
- NJR晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- SUNNY晶振
- ARGO晶振
- Skyworks晶振
- 瑞萨renesas晶振
谐振器/滤波器
数码电子产品
汽车电子产品
新增进口品牌
温补晶振
差分晶振
恒温晶振
联系康华尔Contact us
咨询热线
0755-27838351
电话：0755-27838351
手机：138 2330 0879
QQ：632862232
邮箱： konuaer@163.com
地址：广东深圳市宝安区宝安大道东95号浙商大厦1905
康华尔公众号
