瑞萨差分晶振,2520mm,XFL2360312.500000I,6G移动应用晶振
频率：312.5MHz
尺寸：2.5×2.0mm
瑞萨差分晶振,2520mm,XFL236312.500000I,6G移动应用晶振,瑞萨差分晶振,XF进口有源晶振,XFL236312.500000I晶振,2520mm晶振,贴片式石英晶体振荡器,频率312.5MHz,电压3.3V,频率偏差25ppm,工作温度-40~85°C,高品质晶振,高稳定性晶振,6G移动应用晶振,以太网晶振,FOM齿轮箱应用晶振, 数据中心晶振.
订购热线：0755-27838351
瑞萨差分晶振,2520mm,XFL236312.500000I,6G移动应用晶振,瑞萨差分晶振,XF进口有源晶振,XFL236312.500000I晶振,2520mm晶振,贴片式石英晶体振荡器,频率312.5MHz,电压3.3V,频率偏差25ppm,工作温度-40~85°C,高品质晶振,高稳定性晶振,6G移动应用晶振,以太网晶振,FOM齿轮箱应用晶振, 数据中心晶振.

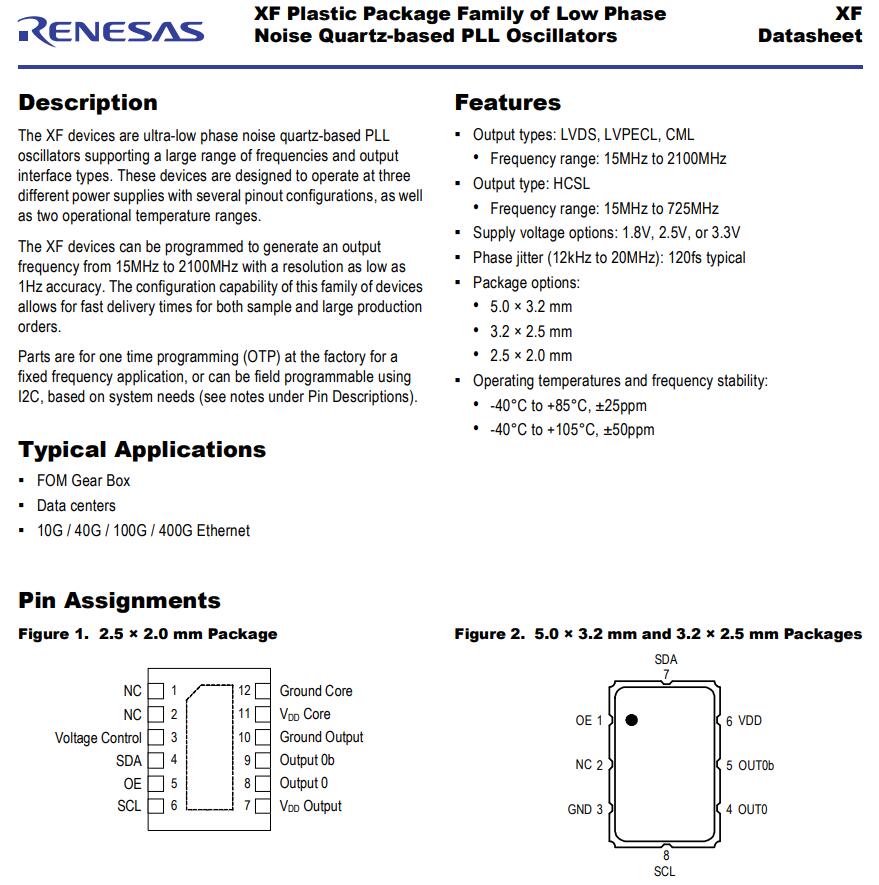

瑞萨差分晶振,2520mm,XFL2360312.500000I,6G移动应用晶振特点：
•输出类型:LVDS, LVPECL, CML
•频率范围:15MHz至2100MHz
•输出类型:HCSL
•频率范围:15MHz至725MHz
•供电电压选项:1.8V, 2.5V，或3.3V
•相位抖动(12kHz至20MHz): 120fs典型
•包装选项:
•5.0 × 3.2毫米
•3.2 × 2.5 mm
•2.5 × 2.0 mm
•工作温度和频率稳定性:
•-40°C至+85°C，±25ppm
•-40°C至+105°C，±50ppm
瑞萨差分晶振,2520mm,XFL2360312.500000I,6G移动应用晶振参数图
3ps Typ
项目
符号
规格说明
条件
额定频率
f_nom
312.5MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V±0.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率公差（标准）
f_tol
±25 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
供电电流
IDD
67mA Max
LVDS 15MHz to 400MHz
差分输出电压
VOD
0.6V Max
VDD = 3.3V ±5%.
对称性
SYM
48%~52%
At outputs crossing point
输出负载
L_LVDS
100Ω
LVDS
输入电压
VIH
70%Vcc Min
LVDS
VIL
30%Vcc Max
上升下降时间
tr/tf
400ps Max
LVDS 20% to 80% Vpp
起始时间
t str
5ms Max
VDD达到最小指定水平后输出有效时间
周期抖动
JPER
LVDS
相位抖动
tpj
115fs Typ
12KHZ~20MHz
老化
f_aging
±3ppm/year
+25℃,第一年
瑞萨差分晶振,2520mm,XFL2360312.500000I,6G移动应用晶振尺寸图
