DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振
频率：100MHz
尺寸：3.2×2.5mm
DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振,美国Microchip晶振,DSC61XX有源晶振,DSC6101CI2A-100.0000T晶振,3225贴片晶振,石英晶体振荡器,小体积晶振,频率100MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,低抖动晶振,低功耗晶振,6G基站晶振,物联网设备晶振,可穿戴设备晶振,监控摄像机晶振,汽车全景摄像机应用晶振,工业自动化晶振.
订购热线：0755-27838351
DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振,美国Microchip晶振,DSC61XX有源晶振,DSC6101CI2A-100.0000T晶振,3225贴片晶振,石英晶体振荡器,小体积晶振,频率100MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,高可靠性晶振,低抖动晶振,低功耗晶振,6G基站晶振,物联网设备晶振,可穿戴设备晶振,监控摄像机晶振,汽车全景摄像机应用晶振,工业自动化晶振.

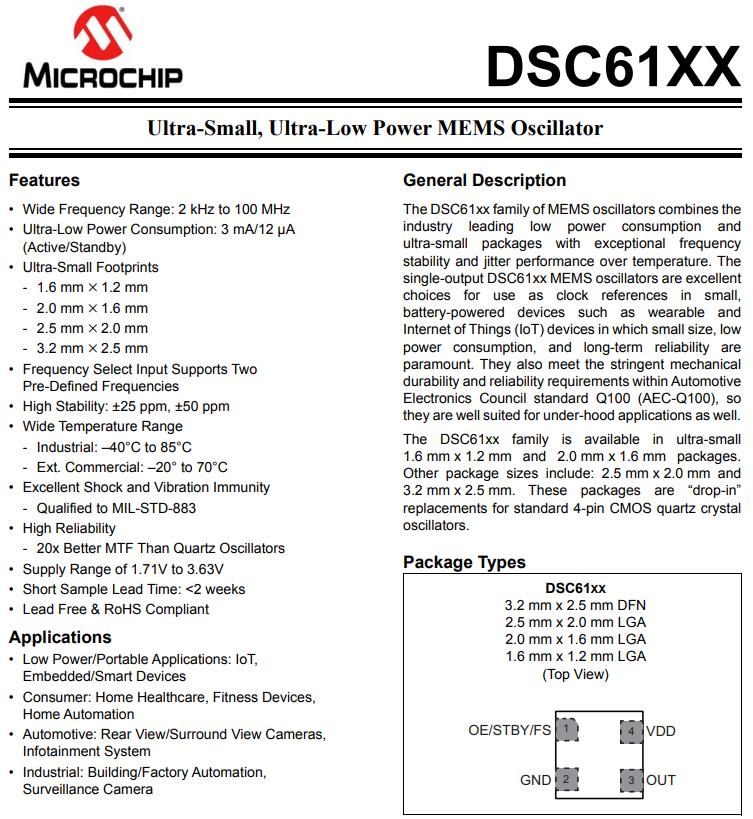

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振特点：
•宽频率范围:2 kHz至100 MHz
•超低功耗:3mA/12µA(备份)
•超小足迹
- 1.6 mm×1.2 mm
- 2.0 mm×1.6 mm
- 2.5 mm×2.0 mm
- 3.2 mm×2.5 mm
•频率选择输入支持两种预定义的频率
•高稳定性:±25 ppm，±50 ppm
•宽温度范围
-工业:- 40℃~ 85℃
-外商用:- 20°至70°C
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•电源范围1.71V至3.63V
•样品交货时间短:<2周
•无铅和符合RoHS标准
DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振参数图
0.2 x VDDV Max
项目
规格说明
条件
额定频率
100MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
3.3V
储存温度
-55℃~+150℃
裸存
工作温度
-40℃~ +85℃
频率稳定度
±25ppm
所有温度范围
老化
±5ppm
1 year @ +25°C
电流
3.0mA Typ
FOUT = 27 MHz, VDD = 1.8V, No Load
占空比
45%~55%
输出逻辑电平低（Vol）
I=±3mA
输出逻辑电平高（Voh）
0.8 x VDDV Min
起始时间
1.3ms Max
From 90% VDD to valid clock output, T = +25° C
输出上升下降时间
2.2ns Max
DSC61x1 Std. Drive, 20% to 80% CL = 10 pF
Cycle-to-Cycle抖动(峰值)
60ps Max
FOUT = 27 MHz
周期抖动
9ps
FOUT = 27 MHz RMS

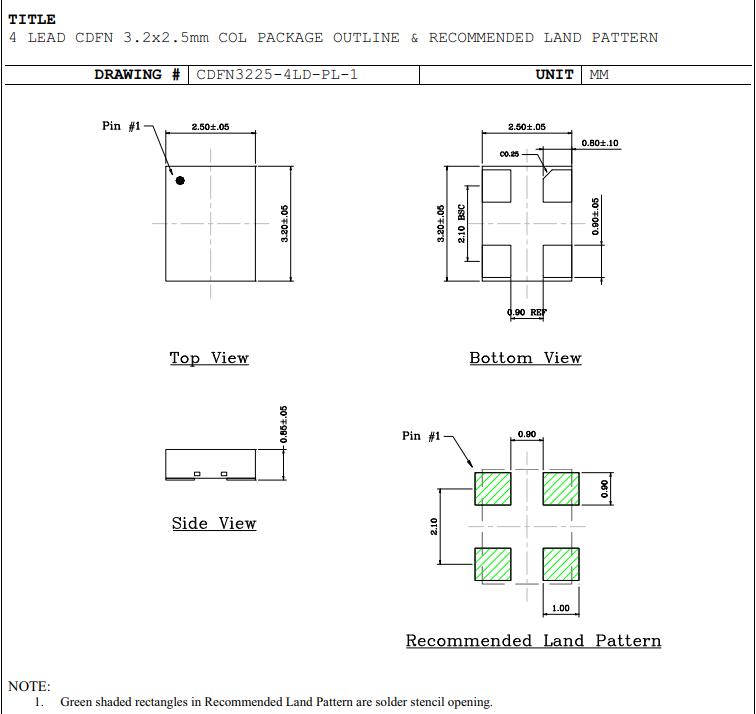

DSC6101CI2A-100.0000T|3225贴片晶振|6G基站晶振尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 类型 | 频率 | 电压 | 尺寸 |
| DSC1123CI2-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CE1-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-150.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI5-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-300.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 300MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-018.4320 | Microchip Technology | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-200.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CE1-125.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI1-075.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI1A-033.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 33MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6111CI1A-008.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 8MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-032K800 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32.8kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-307K000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 307kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI2A-004.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 4MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI2A-032.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-250K000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 250kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-002K000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 2kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-047.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 47.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-048.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-024.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-050.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI1A-011.0592 | Microchip Technology | DSC60XX | MEMS (Silicon) | 11.0592MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-024.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-033.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000 | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM2-040.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CL5-100.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CE1-125.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-333.3333 | Microchip Technology | DSC1123 | MEMS (Silicon) | 333.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-020.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-125.0000 | Microchip Technology | DSC1103 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-027.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-333.3300 | Microchip Technology | DSC1123 | MEMS (Silicon) | 333.33MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI5-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI5-156.2500 | Microchip Technology | DSC1123 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-066.6666B | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM2-062.2080T | Microchip Technology | DSC1101 | MEMS (Silicon) | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM2-062.2080T | Microchip Technology | DSC1101 | MEMS (Silicon) | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM2-062.2080T | Microchip Technology | DSC1101 | MEMS (Silicon) | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI5-020.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI5-020.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI5-020.0000T | Microchip Technology | DSC1101 | MEMS (Silicon) | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-125.0000T | Microchip Technology | DSC1123 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CL5-014.7456 | Microchip Technology | DSC1101 | MEMS (Silicon) | 14.7456MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI2-156.2500 | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000 | Microchip Technology | DSC1104 | MEMS (Silicon) | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-022.8800T | Microchip Technology | DSC1123 | MEMS (Silicon) | 22.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-022.8800T | Microchip Technology | DSC1123 | MEMS (Silicon) | 22.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-022.8800T | Microchip Technology | DSC1123 | MEMS (Silicon) | 22.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI2-212.5000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 212.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CI2-103.1250 | Microchip Technology | DSC1122 | MEMS (Silicon) | 103.125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CI1-122.8800 | Microchip Technology | DSC1123 | MEMS (Silicon) | 122.88MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-200.0000T | Microchip Technology | DSC1103 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CE1-156.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CI1-156.2500 | Microchip Technology | DSC1122 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM1-075.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM1-033.3333 | Microchip Technology | DSC1101 | MEMS (Silicon) | 33.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CM1-005.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1123CE5-100.0000 | Microchip Technology | DSC1123 | MEMS (Silicon) | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1102CI5-150.0000T | Microchip Technology | DSC1102 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1102CI5-150.0000T | Microchip Technology | DSC1102 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1102CI5-150.0000T | Microchip Technology | DSC1102 | MEMS (Silicon) | 150MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CI5-224.8200 | Microchip Technology | DSC1103 | MEMS (Silicon) | 224.82MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1103CL5-106.2500T | Microchip Technology | DSC1103 | MEMS (Silicon) | 106.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | MEMS (Silicon) | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6111CI1A-016.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 16MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CL2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-033.3300 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.33MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-006.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 6MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-033.3333 | Microchip Technology | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI5-004.9152 | Microchip Technology | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1122CI5-200.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-026.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6083CI2A-032K768 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32.768kHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6001CI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI2A-012.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI2A-024.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6003CI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6101CI2A-027.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 27MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6111CI2A-012.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 12MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6102CI2A-100.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 100MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6101CI2A-050.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 50MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC6101CI2A-025.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 25MHz | 1.71 V ~ 3.63 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-050.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-025.0000 | Microchip Technology | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121BI2-025.0007 | Microchip Technology | DSC1121 | MEMS (Silicon) | 25.0007MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1101CI1-025.0000 | Microchip Technology | DSC1101 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CC1-008.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-066.6666 | Microchip Technology | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE1-019.2000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 19.2MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CE2-022.5792 | Microchip Technology | DSC1033 | MEMS (Silicon) | 22.5792MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CE2-074.2500 | Microchip Technology | DSC1033 | MEMS (Silicon) | 74.25MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-008.1920 | Microchip Technology | DSC1033 | MEMS (Silicon) | 8.192MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1033CI1-001.0000 | Microchip Technology | DSC1033 | MEMS (Silicon) | 1MHz | 3.3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI1-003.6864 | Microchip Technology | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-001.9521 | Microchip Technology | DSC1001 | MEMS (Silicon) | 1.9521MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-010.4857 | Microchip Technology | DSC1001 | MEMS (Silicon) | 10.4857MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-008.1920 | Microchip Technology | DSC1001 | MEMS (Silicon) | 8.192MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-049.1520 | Microchip Technology | DSC1001 | MEMS (Silicon) | 49.152MHz | 1.7 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-025.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CE2-012.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1001CI2-001.9512 | Microchip Technology | DSC1001 | MEMS (Silicon) | 1.9512MHz | 1.8 V ~ 3.3 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
